20 INSTALLATION

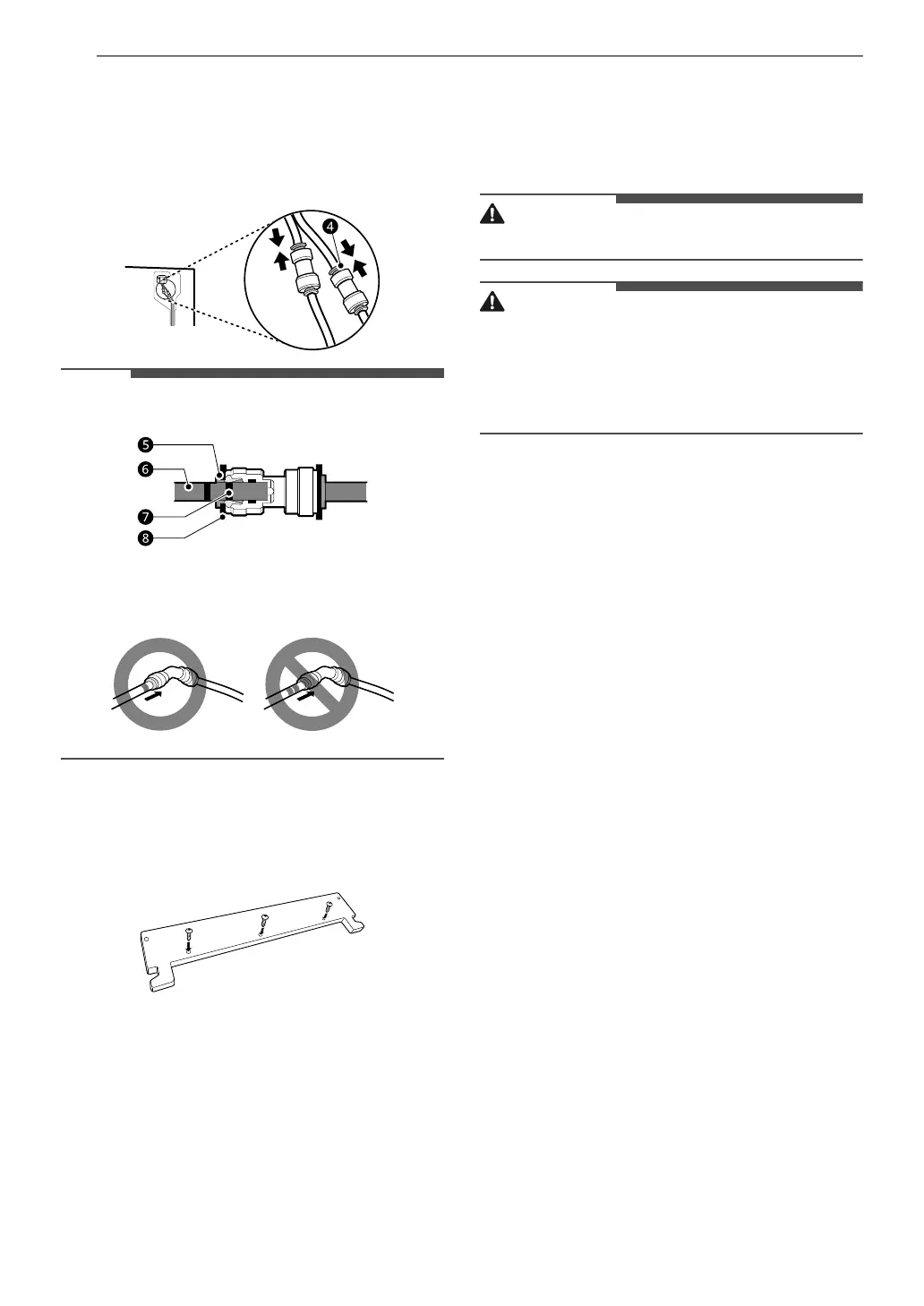

5 Hold the water supply connection and gently
push in the collet d to connect the water
supply lines as shown. Insert the tube at least
5/8 inch (15 mm) into the connector. Insert
the clip on the joint to fasten the tubes in
place.
NOTE
• Disassembling/Assembling the Water Lines
e Collet f Tube g Insert line h Clip
• Gently press the collet and insert the tube until
only one line shows on the tube.
Assembling the Hinge Cover
Position the hinge cover in its place. Insert and
tighten the cover screws.
Connecting Refrigerator to
Water Supply
Before Beginning
These instructions assume you have an existing
water supply connection for the refrigerator. If
necessary, call a qualified plumber to install a
water supply line for the refrigerator.
• Turn the icemaker OFF if the refrigerator will be
used before the water line is connected.
• Do not install the icemaker tubing in areas
where the ambient temperatures fall below
freezing.
WARNING
• Connect to potable water supply only.
CAUTION
• To prevent burns and product damage, only
connect the refrigerator water line to a cold
water supply.
• Wear eye protection during installation to
prevent injury.
Water Pressure
You will need a cold water supply.
Water Pressure
• Models with water filter:
- 20 - 120 psi (138 - 827 kPa)
• Where reverse osmosis water filtration
system is connected to a cold water supply:
- 40 - 60 psi minimum to reverse osmosis
system (2.8 kgf/cm
2
- 4.2 kgf/cm
2
, or less than
2 - 3 seconds to fill a cup of 7 oz capacity)
If the water pressure from the reverse osmosis
system is less than 20 psi or 138 kPa or 1.4 kgf/cm
2
(takes more than 4 seconds to fill a cup of 7 oz or
198 cc capacity):
• Check to see if the sediment filter in the reverse
osmosis system is blocked. Replace the filter if
necessary.
• Allow the storage tank on the reverse osmosis
system to refill after heavy usage.
• If the water pressure remains low, call a
licensed, qualified plumber.
• All installations must be in accordance with local
plumbing code requirements.
Supplies Needed
• Copper or PEX Tubing, ¼ in. outer diameter, to
connect the refrigerator to the water supply. Be
sure both ends of the tubing are cut square. To
determine how much tubing you need, measure
the distance from the water valve on the back of
the refrigerator to the water supply pipe. Then,
