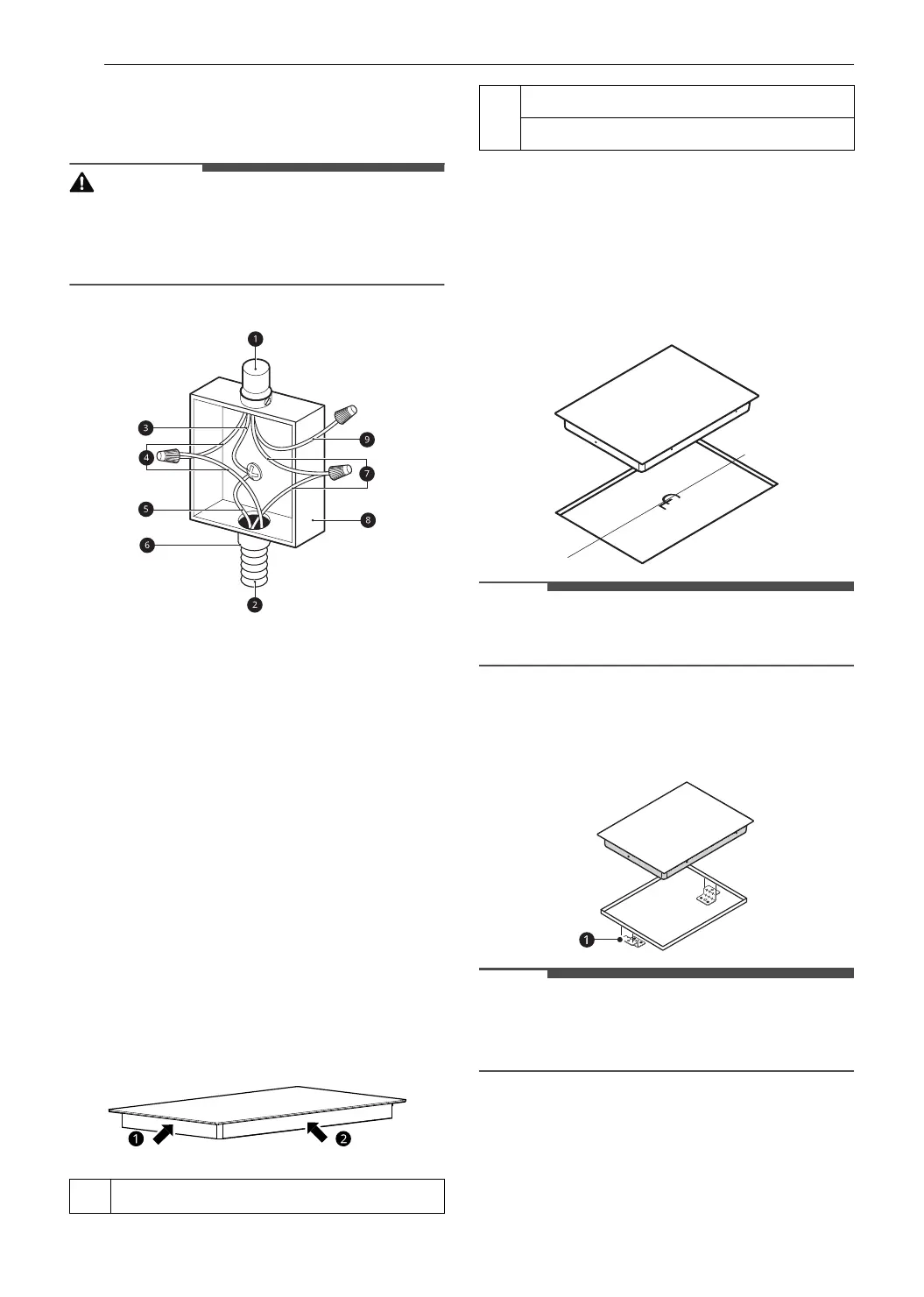

18 INSTALLATION
2 At the circuit breaker box, fuse box or junction
box, connect appliance and power supply
cable wires as shown.
WARNING
• If connecting to a 4-wire power supply cable
electrical system, the appliance frame connected
ground wire MUST NOT be connected to the
neutral wire of the 4-wire electrical system.
4-Wire Grounded Junction Box
a Cable from Power Supply
b Cable from Cooktop
c Ground Wire
d Red Wires
e Green Wire (Ground)
f UL-listed Conduit Connector
g Black Wires
h Junction Box
i White Wire (No Connection)
Installing the Cooktop Unit
1 Visually inspect the cooktop for damage.
Make sure all cooktop screws are tight (see
below for locations).
2 Check and prepare the installation location.
•See Dimensions and Clearances.
3 Carefully lower the cooktop into the
countertop cutout, making sure not to trap
any wires.
NOTE
• Do not use caulking compound. The cooktop
must be removable, should service be required.
4 Attach the retainer brackets a to the bottom
of the cooktop; then snug the bolts against
the bottom of the countertop as shown.
NOTE
• The retainer brackets MUST be installed to meet
local codes or, in their absence, with the National
Electrical Code ANSI/NFPA No. 70, latest edition.
a
3 Screws (Same Both Side)
b
30" Cooktop: 3 Screws (Same Both Side)
36" Cooktop: 4 Screws (Same Both Side)
