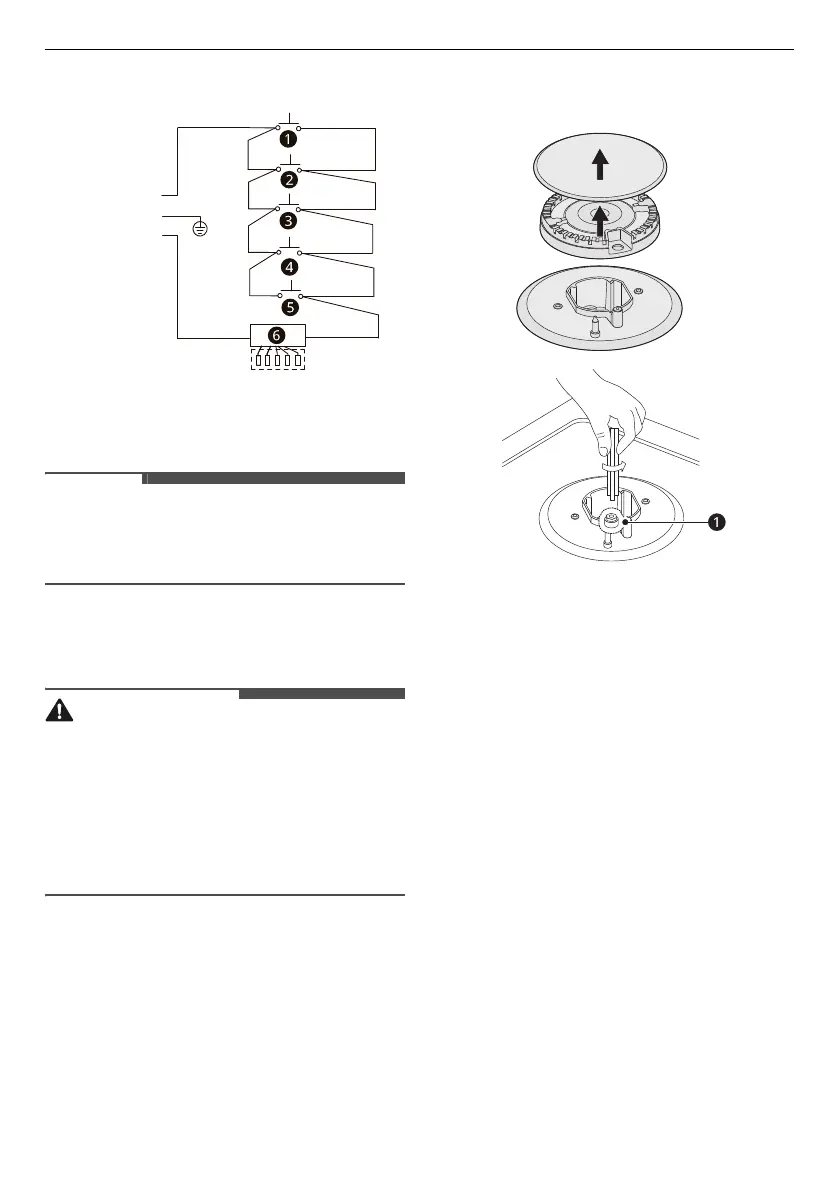

INSTALLATION
- CBGZ3016S
a
Switch 1
b
Switch 2
c
Switch 3
d
Switch 4
e
Switch 5
f
Ignition
NOTE
• Make sure to connect the green and yellow wires
to the terminal marked with the letter E or earth
symbol.
Gas Adjustment
CAUTION
• Take precautions on the operations and
adjustments to be carried out when converting
from one gas to another.
• All work must be carried out by a qualified
technician.
• Before you begin, turn off the gas and electricity
supply to the appliance.
Change the Injector of the Burners.
1) Remove the pan support, burner lid and flame
spreader.
2) Unscrew the injector
a
using a 7 mm box
spanner and replace it with the stipulated
injector for new gas supply.
3) Carefully reassemble all the components.
4) After replacing the injectors, strongly tighten
the injectors in place.
Adjustment of minimum Level of the
Flame
1) Turn the taps down to minimum.
2) Remove the knob
a
, seal ring
b
, panel, film
d
. Place a flat bladed screwdriver
f
in the left
side of the tap. Adjust by-pass screw.
3) If by-pass screw adjusted correctly, the flame
length is about 3 mm - 4 mm.
• For butane propane gas, the adjusting
screw must be tightly screwed in.
• Refit the control knob.
• Make sure that the flame does not go out by
quickly turning from maximum flow to
minimum flow. If it does, remove the
control knob, make further adjustments to
the gas flow, and test again.
4) Repeat this process for each one of the gas
taps.
$&9
/
(
1
