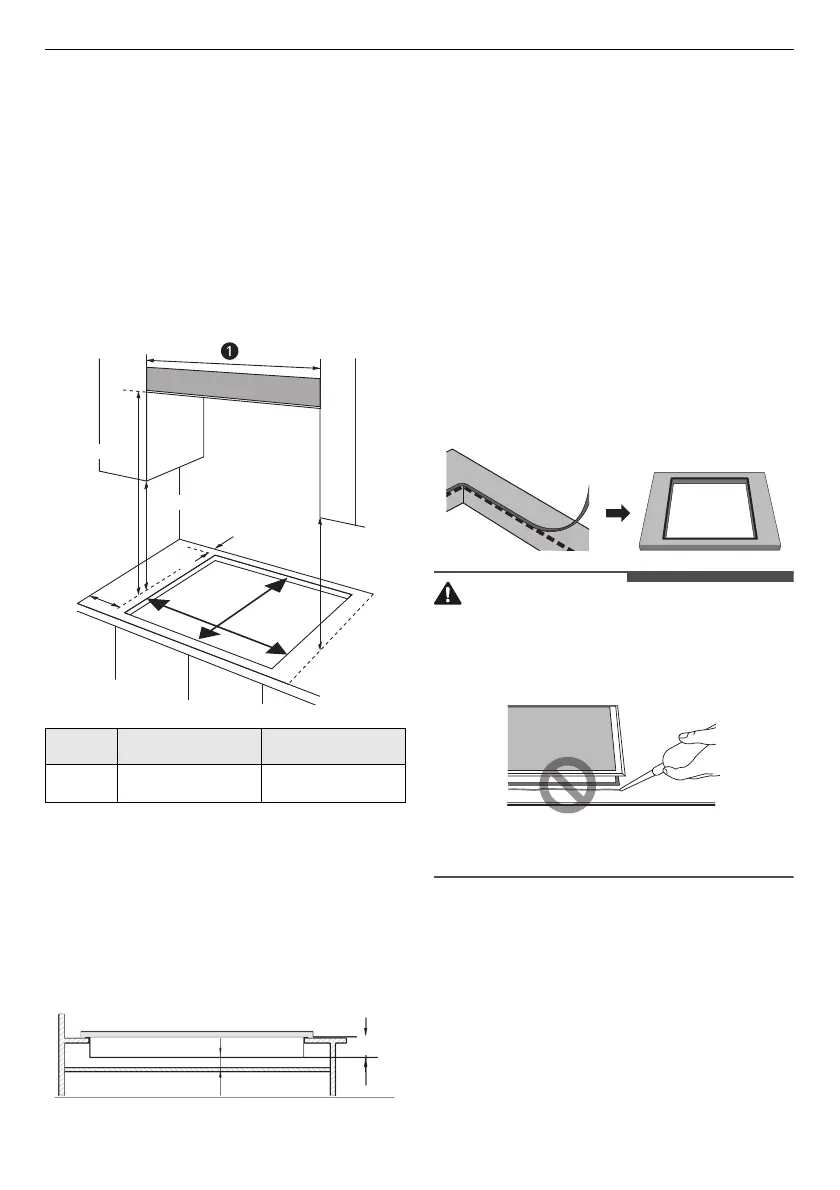

INSTALLATION
400 mm, then it must be at least 50 mm away
from the outer edges of the hob.
• There should be 50 mm clearance around the
appliance.
• There should be 50 mm clearance between the
hob surface and any combustible materials.
• If the installation surface is narrow, install the
heatproof plate on the right, left and back.
• It is necessary to be built into kitchen furniture
as indicated below. Clearances are required
when fitting the hob with a cooker hood above.
• You must have a gap of at least 25 mm and at
most 74 mm between the underneath of the
appliance and any surface that is below it.
- An oven must have forced ventilation to install
a hob above it.
- Check the dimensions of the oven in the
installation manual.
- The cut out size must obey the indication.
Installing the Appliance
Sponge
• Remove the pan supports, the burner lid and
flame spreader and carefully turn the appliance
upside down and place it on a cushioned mat.
Take care that the Ignition devices and flame
supervision devices are not damaged in this
operation.
• Attach the sponge provided around the edge of
the appliance.
• Do not leave a gap in the sealing agent or
overlap the thickness.
The thickness of the sponge material is 3 mm. The
width of the sponge material is 10 mm. Attach the
sponge around the edge of the hole in the worktop.
CAUTION
• Do not use a silicon sealant to seal the appliance
against the aperture. This will make it difficult to
remove the appliance from the aperture in
future, particularly if it needs to be serviced.
• Make sure to install the stabilizing brackets to
prevent tipping of the appliance.
1
Place the bracket
b
over the holes that match
the size of the screws. There are one set of
screw holes in each corner of the hob. Slightly
tighten a screw
c
through the bracket
b
so
that the bracket is attached to the hob. Adjust
the position.
2
Carefully turn the hob back over and then
gently lower it into the hole that you have cut
out.
CBGZ2414S CBGZ3016S
a
600 mm 900 mm
FO 0813
400 mm
560 mm
480 mm
400 mm
700 mm
MIN.
6
0
mm
200 mm
45 mm
25 mm (MIN.)
