12 INSTALLATION
Preparing the Installation Location
Important Installation Information
• All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC-only
electrical supply with ground.
• Minimum distance between cooktop and overhead cabinetry is 30" (762 mm) for a 30" cooktop and 36"
(914 mm) for a 36" cooktop.
• Make sure the cabinets and wall coverings around the cooktop can withstand the temperatures (up to 93
℃ [200 ℉]) generated by the cooktop.

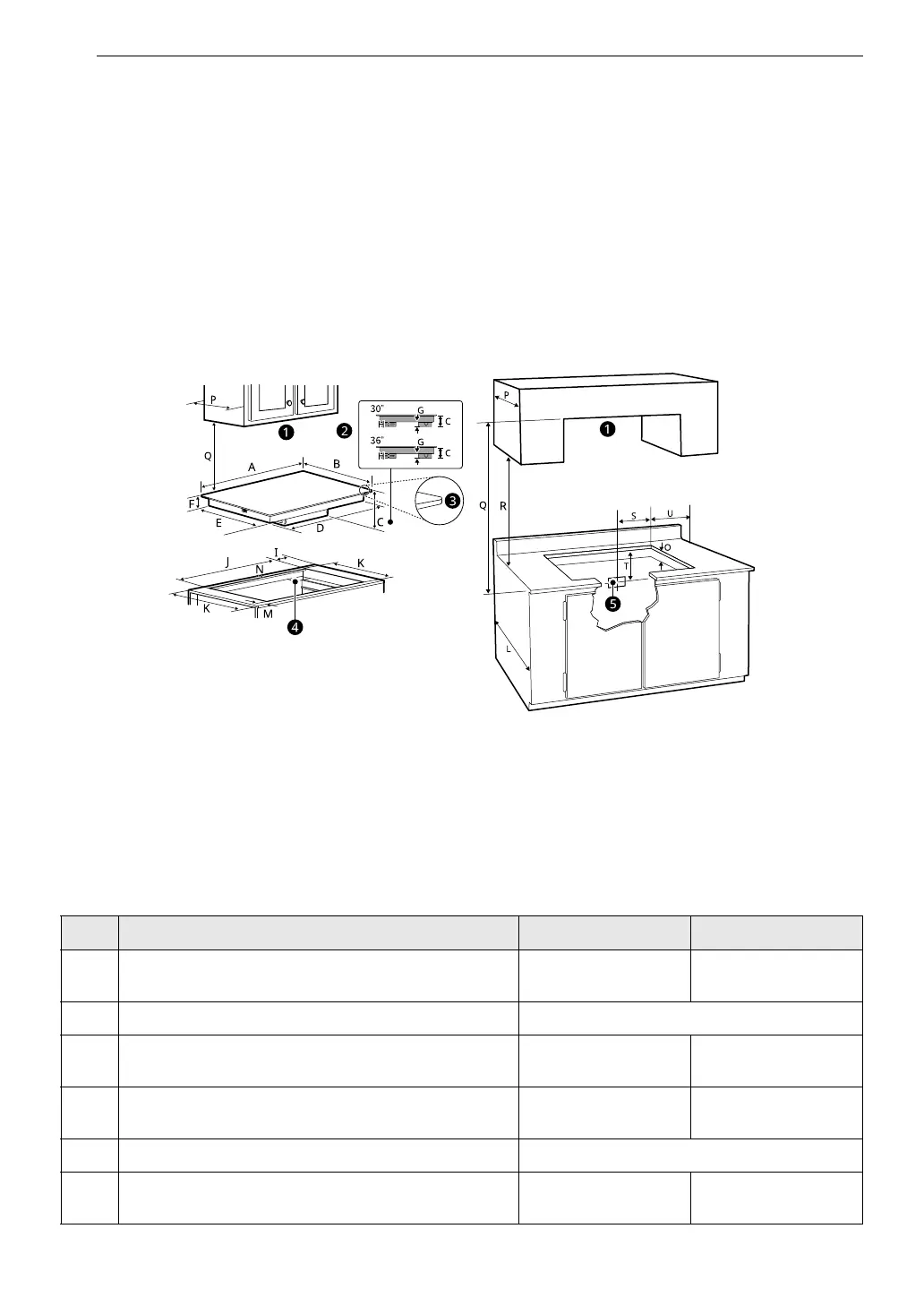

Dimensions and Clearances
a Do not obstruct these areas.
b Right side
c Radius: 3/8" (10 mm)
d 4″ X 8″ (102 mm x 203 mm) opening to route armored cable if panel is present.
e Approximate location of junction box
- Dimension/Clearance 30" Cooktop 36" Cooktop
A Width of upper plate
30 11/16"
(781 mm)
36 5/8"
(930 mm)
B Depth of upper plate 21 1/16" (534 mm)
C
Distance from bottom of upper plate to bottom of
conduit and terminal block enclosure
3 15/16"
(101 mm)
3 7/8"
(98 mm)
D Width of cooktop base
27 15/16"
(710 mm)
33 1/2"
(851 mm)
E Depth of cooktop base 18 13/16" (477 mm)
F
Distance from bottom of upper plate to bottom of
cooktop base
2 1/2"
(64 mm)
2 7/16"
(61 mm)
