INSTALLATION
Dimensions are approximate.
Installation
Dimensions and Clearances

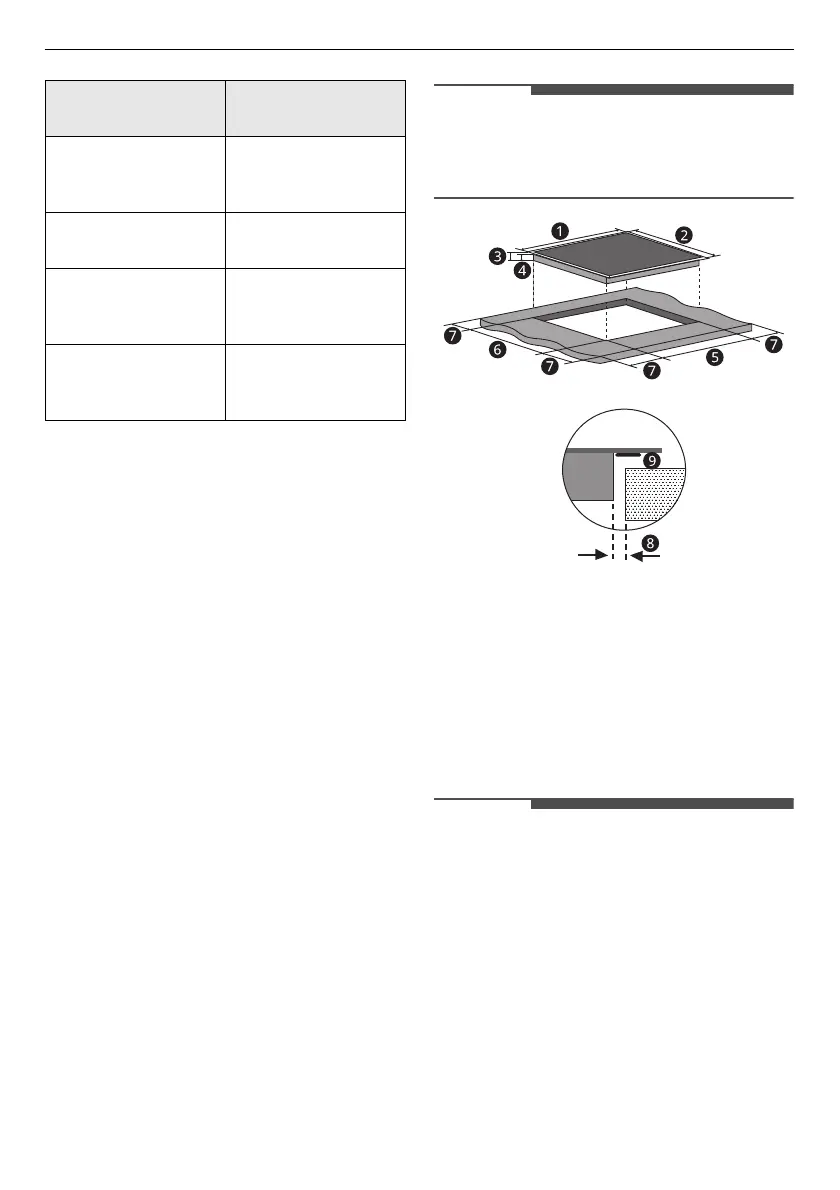

Cut out the work surface according to the sizes
shown in the drawing.
For the purpose of installation and use, a minimum
of 5 cm distance shall be preserved around the
cutout.
Be sure the thickness of the work surface is at least
10 mm. Select heat-resistant and insulated work
surface material to avoid electrical shock and
larger deformation caused by heat radiation from
the hob. Wood and similar fibrous or hygroscopic
material shall not be used as work surface material
unless impregnated. As shown below:
NOTE
• The safety distance between the sides of the hob
and the inner surfaces of the worktop
h
should
be at least 3 mm.
a
590 mm
b
520 mm
c
50 mm
d
46 mm
e
560 mm - 562 mm
f
480 mm - 482 mm
g
Min. 50 mm
h
Min. 3 mm
i
Seal
Under any circumstances, make sure the hob is
well ventilated and the air inlet and outlet are not
blocked. Ensure the hob is in a good working
situation, as shown below.
NOTE
• The safety distance between the hob and the
cupboard above the hob
a
should be a
minimum of 500 mm when there is no range
hood fitted. If there is a range hood fitted, then
the safety distance specified by the
manufacturer of the range hood must be
Supply Voltage 220-240 V~ 50/60 Hz
380-415 V 3N~ 50/60
Hz
Maximum Connected
Load Power
7400 W
Appliance Dimensions
Width X Depth X
Height (mm)
590 X 520 X 50
Countertop Cutout
Dimensions
Width X Depth (mm)
560 X 480
Model
BCI607T4BG
BCI607B4BG
