ENGLISH

35

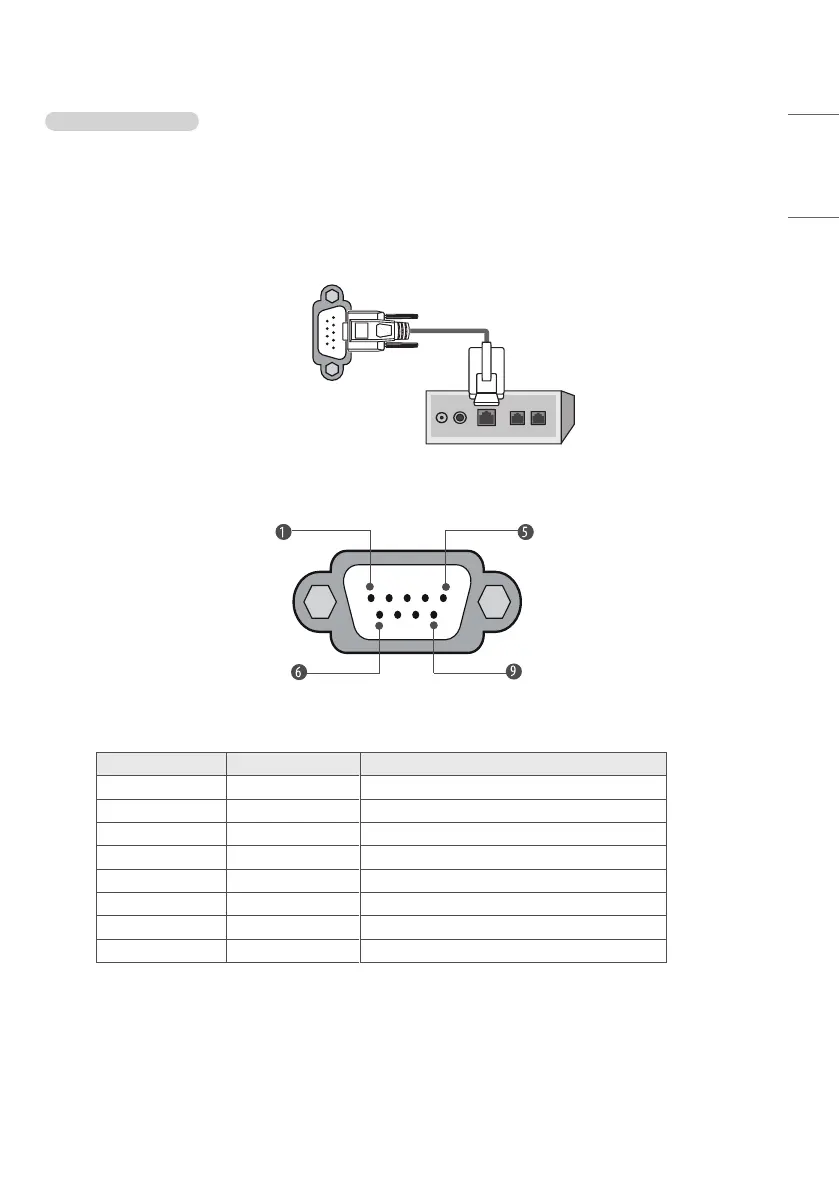

RS232 DC Power Outlet

(Depending on model)

• It is a mode to decide whether to output DC or not for power supply to IB Box in Installation Menu. We offer a output terminal in one Pin of RS232C Jack

for the use of communication.

• 5 V DC Power Outlet and 12 V DC Power Outlet must operate mutually exclusively. That is, only one of the two sides must be turned on.

-

You can select Off, ‘5 V’ or ‘12 V’.

» When select ‘5 V’ the 5 V is forwarded through the port. when select ‘12 V’ the 12 V is forwarded through the port.

RS-232CIN

(CONTROL & SERVICE)

Interface box

» Type of Connector: D-Sub 9-Pin Male

Male connector on box, viewed towards connector.

No. Signal Signal requirements

1 VCC

2 RX RS232 Standard RS232 specication

3 TX RS232 Standard RS232 specication

4 IR from TV

5 GND Power ground

6, 8 Not connected

7 2 A +5 V DC 10 %, max 100 mV ripple

9 1.5 A +12 V DC 10 %, max 100 mV ripple
