RS232 DC Power Outlet
(Depending on model)
• It is a mode to decide whether to output DC or not for power supply to IB Box in Installation Menu. We offer a output terminal in one Pin of RS232C
Jack for the use of communication.
• 5 V DC Power Outlet and 12 V DC Power Outlet must operate mutually exclusively. That is, only one of the two sides must be turned on.
-
You can select Off, ‘5 V’ or ‘12 V’.
» When select ‘5 V’ the 5 V is forwarded through the port. when select ‘12 V’ the 12 V is forwarded through the port.

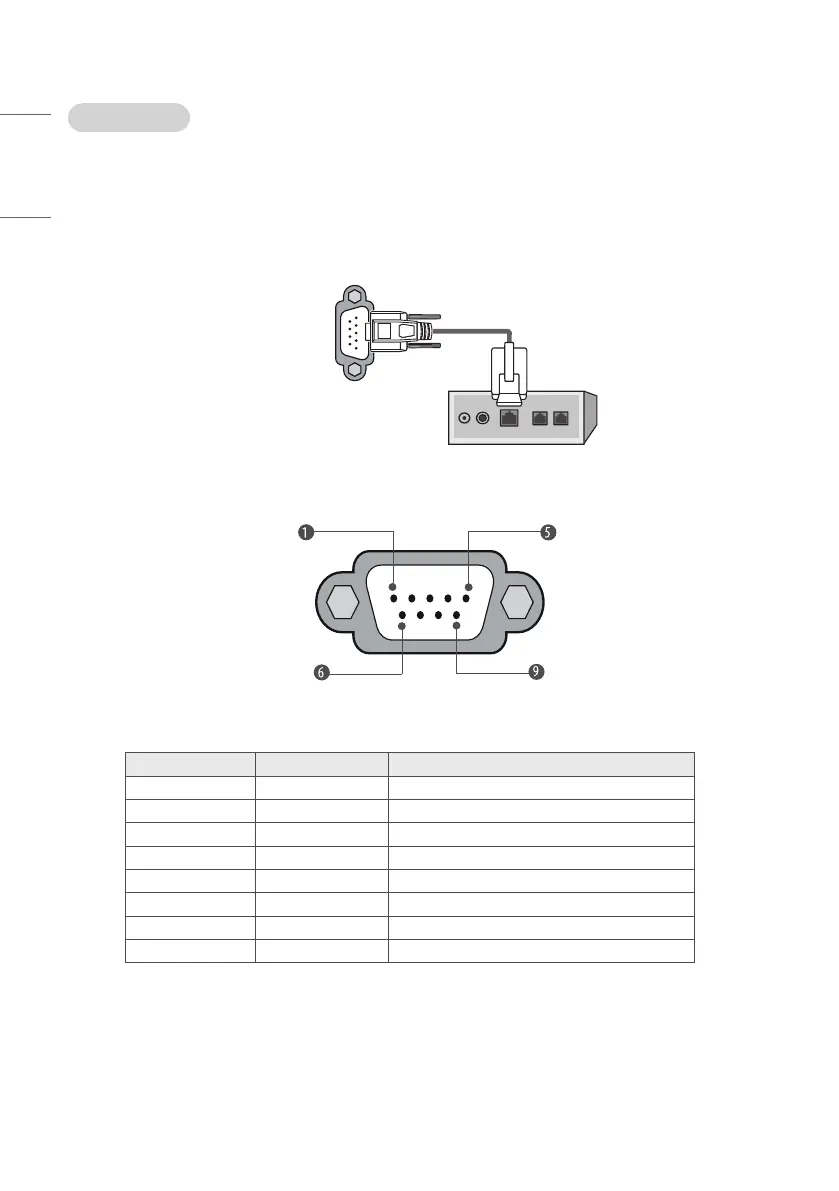

RS-232CIN
(CONTROL & SERVICE)
Interface box
» Type of Connector: D-Sub 9-Pin Male
Male connector on box, viewed towards connector.
No. Signal Signal requirements
1 VCC
2 RX RS232 Standard RS232 specication
3 TX RS232 Standard RS232 specication
4 IR from TV
5 GND Power ground
6, 8 Not connected
7 2 A +5 V DC 10 %, max 100 mV ripple
9 1.5 A +12 V DC 10 %, max 100 mV ripple
