ENGLISH.index

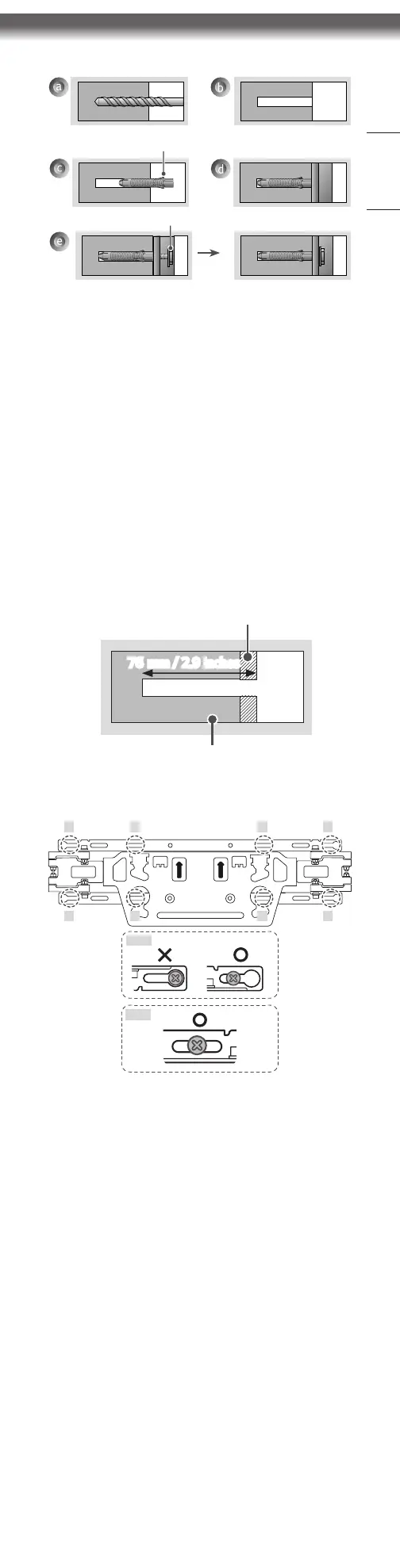

(For installation on concrete wall)
Screws for fixing the wall mount
Anchors for fixing the wall mount
a. Drill holes in anchor locations with a drill bit of Ø 8
mm to a depth of 80 mm (3.1 inches) to 100 mm
(3.9 inches).
b. Clean the drilled holes.
c. Insert the enclosed anchors for fixing the wall mount
into the holes. (Use a hammer when inserting
anchors.)
d. Push the wall mount support closely toward the wall
to match the hole locations.
e. Tighten screws for fixing the wall mount to the
holes. At this time, tighten the screws with the
torque more than 45 kgf/cm (39.0 lbf/in) to 60 kgf/
cm (52.0 lbf/in).
(For installation on wood stud)
Use the Ø 4 mm drill bit for wood to drill holes with the
depth of 76 mm (2.9 inches). (Clean the drilled hole.)
Drywall
Wood stud
76mm / 2.9 inches
Without using the wall mounting anchor, fasten the
wall mounting screw directly to the wood stud.
1 5 6 2
3 7 8 4
1 ~ 4
5 ~ 8
