300L Owner's Manual
Effects Send (L)
Effects Send (R)
Channel Input or
Effects Return (R)
Channel Input or
Effects Return (L)
OUT
MIDI
THRU IN
DO DI
DI
DO
EIAJ CP340
COMM PORT
AES/EBU
DOTIME CODE IN
PUSH
DI
PUSH
R OUT R IN
PUSH
L OUT L IN
PUSH
INPUT
GAIN
Configurations
Connection to a
mixing console's
effects sends

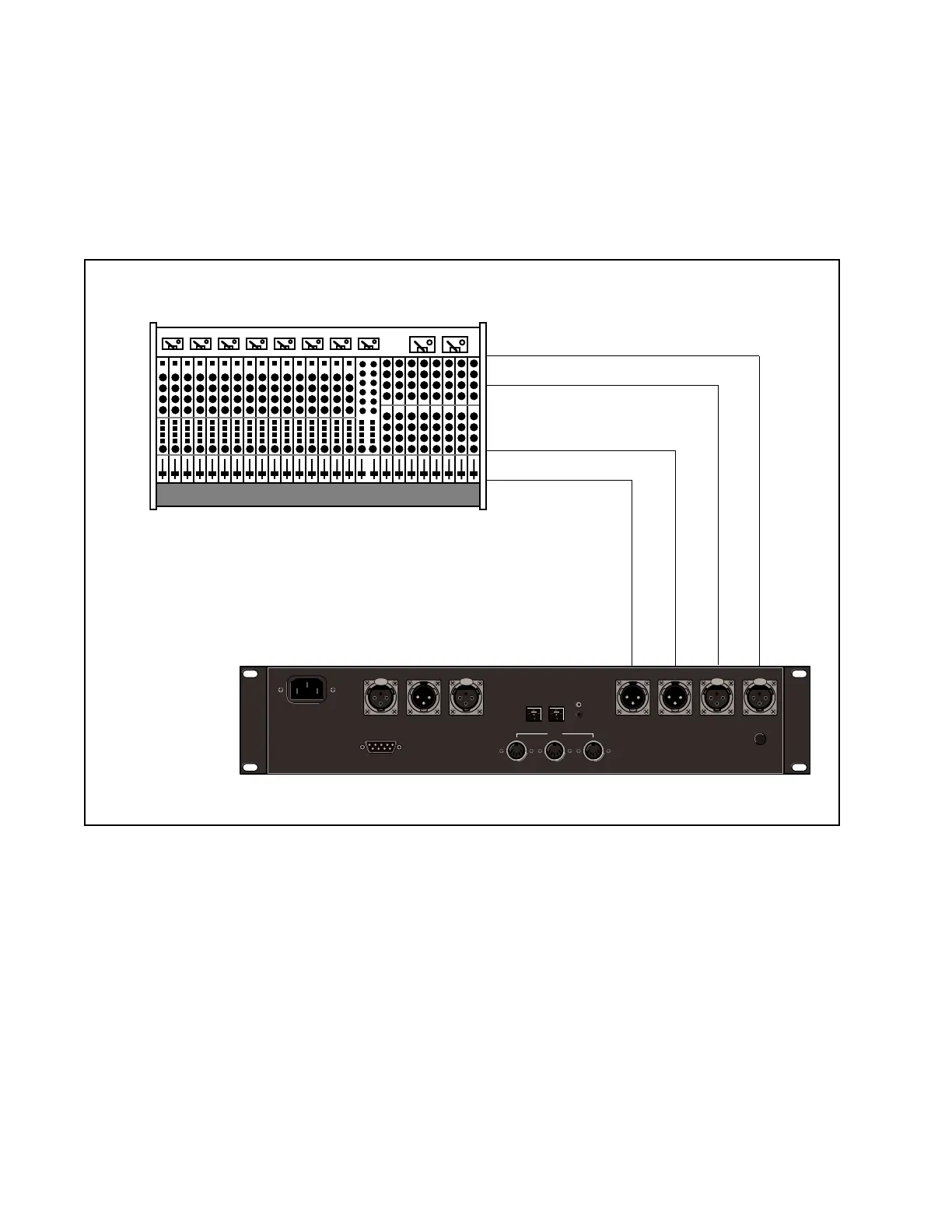

If you will be using a 300L as your primary effects unit, and your system includes
a console with one or more auxiliary (effects) sends, connect the 300L as shown
above. In most applications, it is preferable to connect the 300L outputs to two
of the console's input channel strips, panned full left and right, rather than the
effects returns. This allows the greatest flexibility in routing and equalization.
In this configuration the console controls are used to set the amount of effect
heard—the 300L's MIX control should be set for 100% wet. If you are using only
one effects send, connect the left and right inputs of the 300L in parallel.
The following diagrams give a few examples of various possible configurations
for interfacing to digital equipment.
