300 V 3.0 Owner's Manual
2-4
300
DIGITAL EFFECTS SYSTEM
MIDI
48 kHz
44.1 kHz
32 kHz
CONTROL
UP
PAGE
DOWN
7 89
456
123
—0
ENTER
PAGE
SETUP
SELECT
MACH
STORE
VALUE
SETUP
EDIT
EFFECT
EDIT
MOD
EDIT
BYPASS
A
BYPASS
B
POWER
LEVEL
Power
Power on/off.
Numerical Keypad
Used for numeric entry
of program numbers
(as an alternative to
Soft Knob selection)
and for time code en-
tries.
Dedicated-function keys
Setup Select: Used to
select and run setups.
Mach
: In appropriate
configurations, allows
selection of either of
the 300's two process-
ing modules (Machine
A and Machine B) for
front panel control.
Store
: Used to memo-
rize effects and set-
ups
.
Value: Used to display
parameter values for
Soft button or Soft
knob adjustment.
Control
: Used to ac-
cess system parame-
ters.
Setup Edit: Used to
create or modify the
current setup.
Effect Edit
: Used to
adjust the parameters
of effects.
Mod Edit
: Used to
create patches.
Page Up/Down
Allow access to dis-
play pages of adjust-
able parameters.

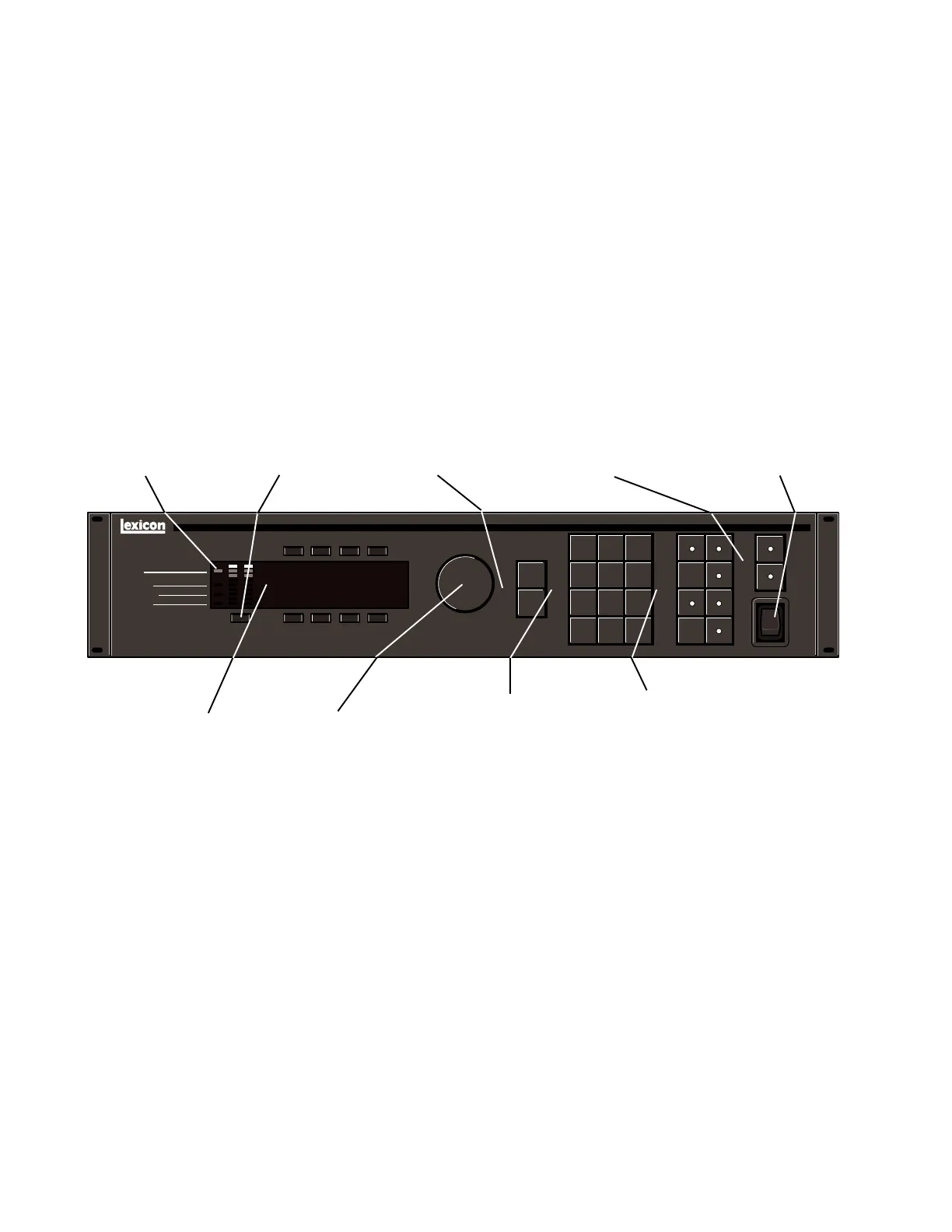

The Front Panel
Level
Used to adjust Analog
input and output levels
(in conjunction with
the Soft knob and the
Page Up/Down keys).
Levels are shown on
the LED bar graphs di-
rectly above the
LEVEL key. The lower
6 LEDs are green, fol-
lowed by 2 amber, and
one red - indicating
overload.
Soft buttons
Each of these eight
buttons is used to se-
lect the parameter
displayed directly
above or below. Once
selected, parameters
can be changed incre-
mentally by additional
button pushes, or they
can be adjusted by
the Soft knob.
Soft knob
Used to adjust para-
meters displayed and
selected with the Soft
buttons.
Bypass
Enable digital bypass
of Machine A or B to
provide an unproc-
essed signal, or to
mute the effect input.
MIDI and Sample
Rate LEDs
The amber MIDI LED
indicates activity over
the designated MIDI
channels. The sam-
pling rate of the 300 is
shown by the green
LEDs.
Note: 32kHz sampling
rate is not supported.
