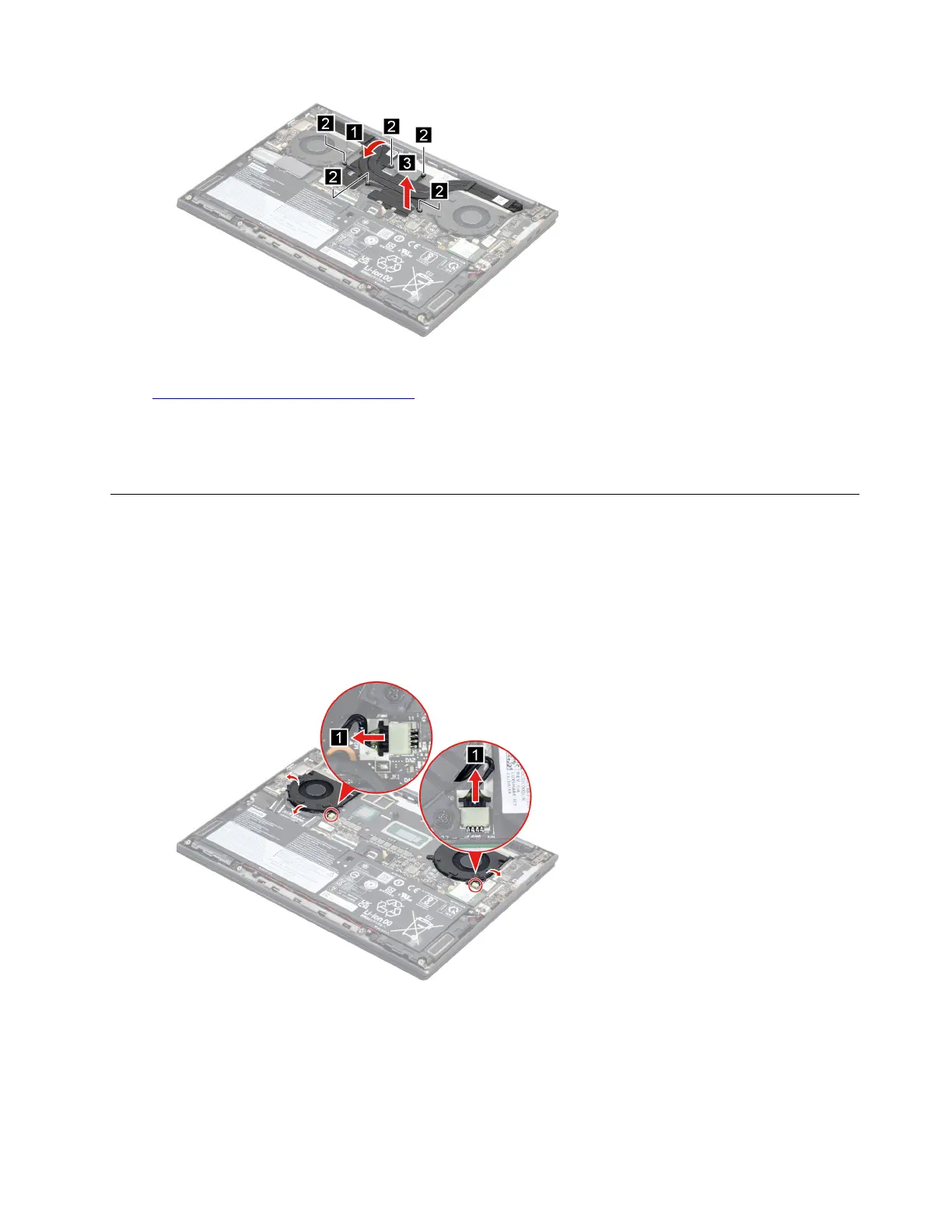

Figure 17. Loose five screws and then remove the heat sink

Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement

part:

Heat sink

VRAM Absorber tape

Remove the fans

Make sure the following FRUs (or CRUs) have been removed.

“Remove the lower case” on page 32

“Remove the heat sink” on page 38

Step 1. Disconnect the fan cables from the system board and then release the antenna cables and EDP

cable from the cable guide.

Figure 18. Disconnect the fan cables and then release the cables

Step 2. Remove six screws and then remove the fans.

Chapter 4. Removing a FRU or CRU 39
