3. Follow the correct sequence in the steps for removing an FRU, as shown in the illustrations by the

numbers in square callouts.

4. When removing an FRU, move it in the direction as shown by the arrow in the illustration.

5. To install a new FRU in place, perform the removal procedure in reverse and follow any notes that

pertain to replacement.

6. When replacing an FRU, carefully retain and reuse all screws.

7. When replacing the base cover, reapply all labels that come with the replacement base cover. If some

original labels are not included with the replacement base cover, peel them off from the original base

cover and paste them on the replacement base cover.

DANGER

Before removing any FRU or CRU, shut down the computer and unplug all power cords from

electrical outlets.

Attention: After replacing an FRU, do not turn on the computer until you have ensured that all screws,

springs, and other small parts are in place and none are loose inside the computer. Verify this by shaking the

computer gently and listening for rattling sounds. Metallic parts or metal flakes can cause electrical short

circuits.

Attention: The system board is sensitive to and can be damaged by ESD. Before touching it, establish

personal grounding by touching a ground point with one hand or by using an ESD strap (P/N 6405959).

Remove the lower case

Make sure the computer has been shut down before servicing the computer.

Step 1. Place the computer upside down on a flat surface.

Step 2. Remove seven screws.

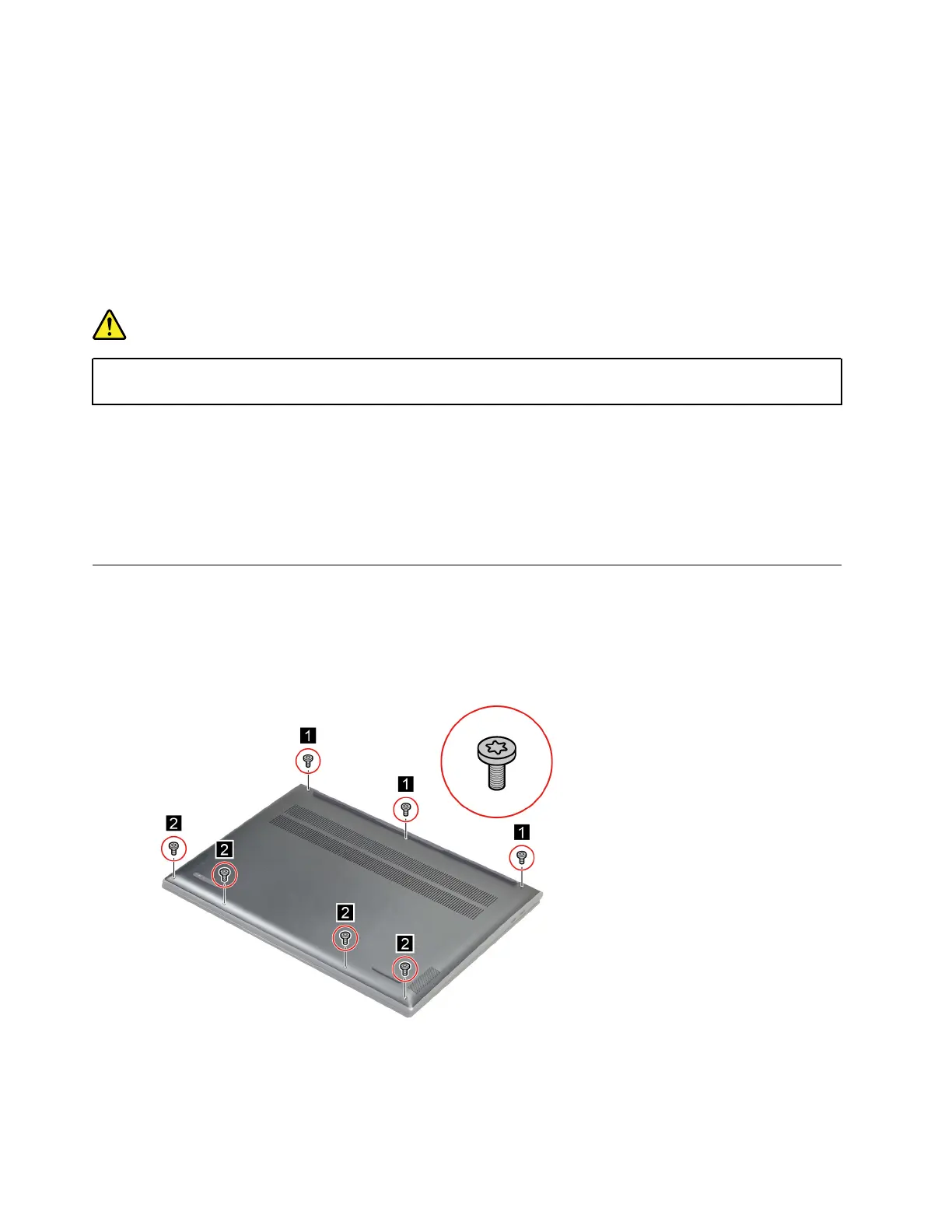

Figure 5. Remove seven screws

32 Hardware Maintenance Manual
