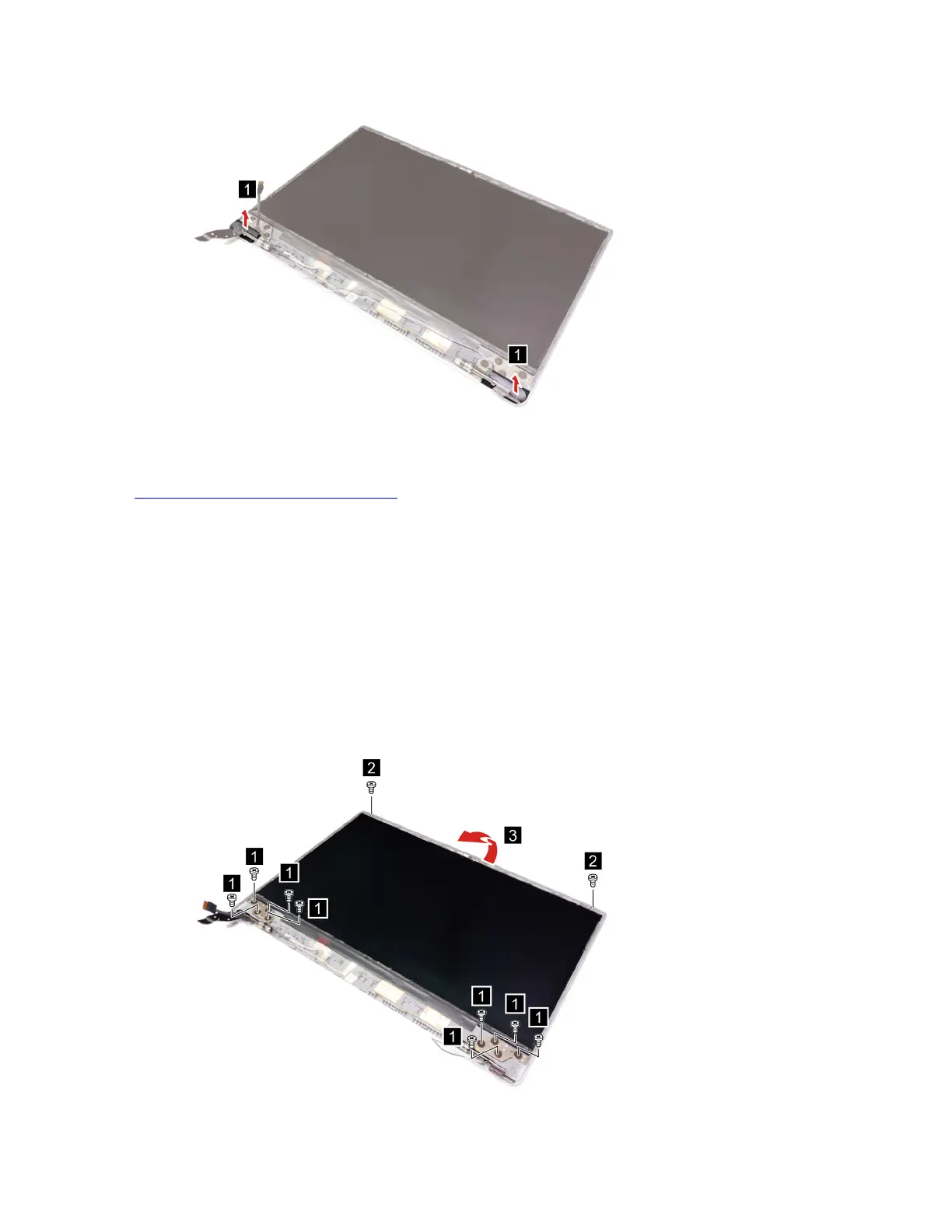

Figure 48. Remove the stripe covers
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Stripe covers
Remove the LCD panel with hinges
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD unit” on page 54
“Remove the LCD bezel” on page 57
“Remove the stripe covers” on page 57
Step 1. Remove ten hinge screws and then carefully lift the LCD panel with hinges from the LCD cover.
Figure 49. Lift the LCD panel with hinges
58 Lenovo V17 Gen 3 Hardware Maintenance Manual
