“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.

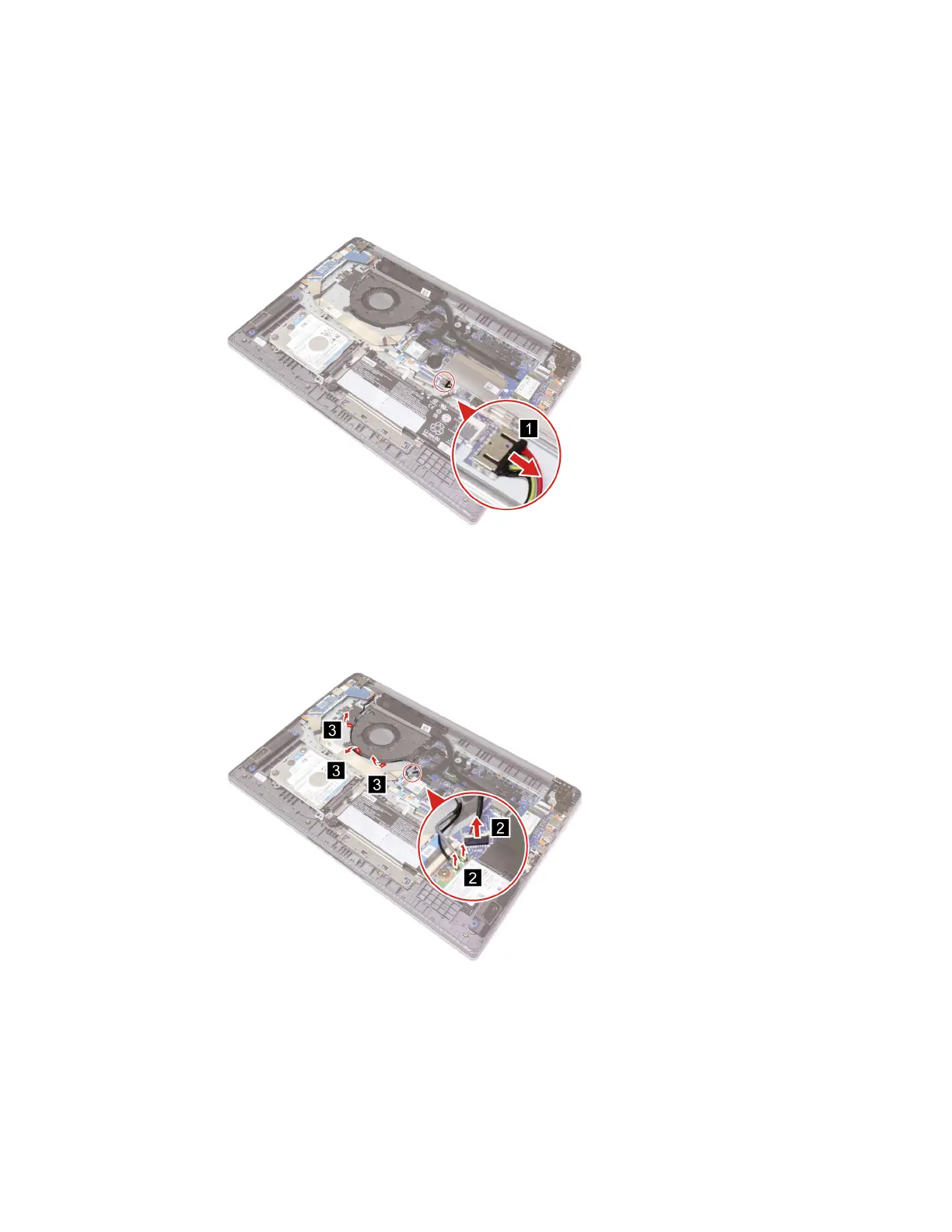

Figure 26. Disconnect the battery pack cable
Step 2. Disconnect the antennas from the Wi-Fi card. Disconnect the system fan cable from the system
board. Then, remove all the cables from the fan hooks.
Figure 27. Disconnect and remove the cables
Step 3. Remove three screws and then remove the system fan.
44
Lenovo V17 Gen 3 Hardware Maintenance Manual
