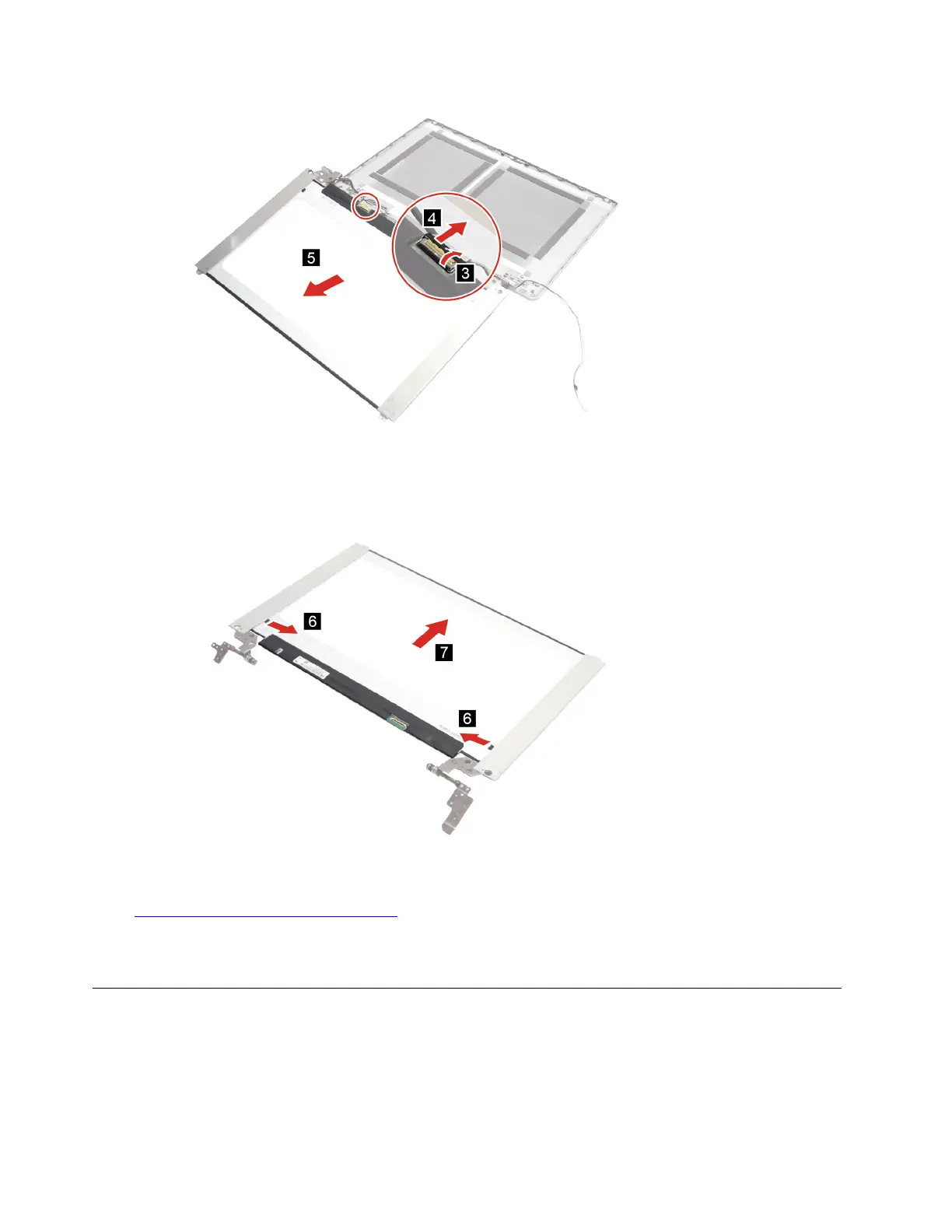

Figure 45. Disconnect the EDP cable and remove the LCD panel
Step 3. Remove the removable tapes and then remove the LCD panel.
Figure 46. Remove the removable tapes and remove the LCD panel
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
LCD panel
Remove the microphone rubber
Make sure the following FRUs (CRUs) have been removed.
“Remove the upper case ” on page 52
“Remove the LCD bezel” on page 54
“Remove the LCD panel” on page 57
58
Lenovo V17 Gen 2 Hardware Maintenance Manual
