“Remove the storage drive” on page 35
“Remove the battery pack” on page 37
“Remove the memory module” on page 34
“Remove the heatsink” on page 42
“Remove the system fan” on page 44
“Remove the coin-cell battery” on page 48
“Remove the Wi-Fi card” on page 45

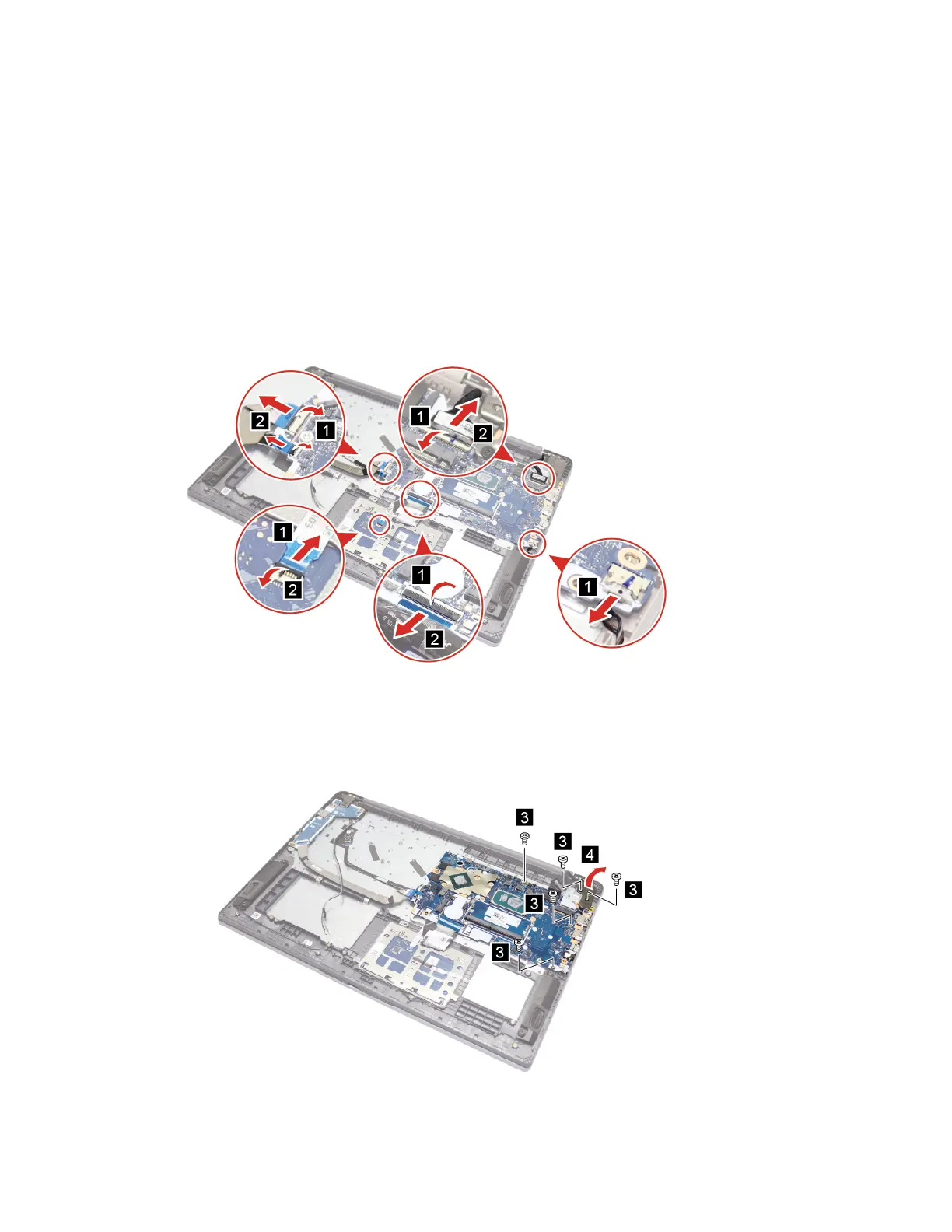

Step 1. Disconnect cables connected to the system board and disconnect the antenna cables from the
wireless module.
Figure 34. Disconnect cables
Step 2. Remove five screws and open the right hinge.
Figure 35. Remove five screws and open the right hinge
Chapter 4. Removing a FRU or CRU 51
