Remove the storage drive bracket
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 32
“Remove the storage drive” on page 35
Step 1. Remove four screws and then remove the storage drive bracket.

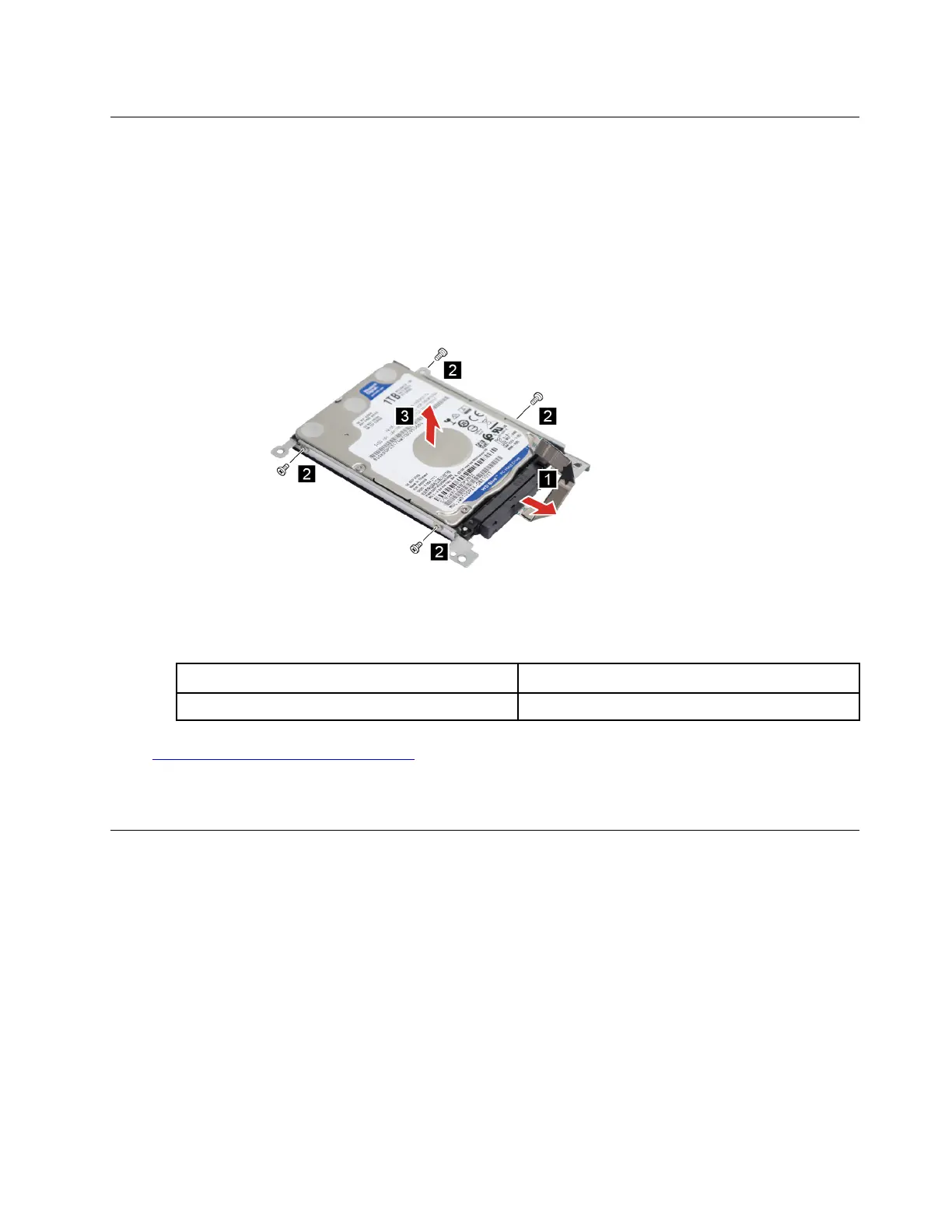

Figure 12. Remove four screws and remove the storage drive bracket
Screw specifications
Number of screws
M3 x L3 4
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
Storage drive bracket
Remove the battery pack
Remove the battery pack (with storage drive)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 32
Step 1. Disconnect the cable from the system board.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Chapter 4. Removing a FRU or CRU 37
