“Remove the LCD module” on page 58
“Remove the LCD bezel” on page 60
“Remove the LCD panel” on page 61
“Remove the microphone rubbers” on page 62

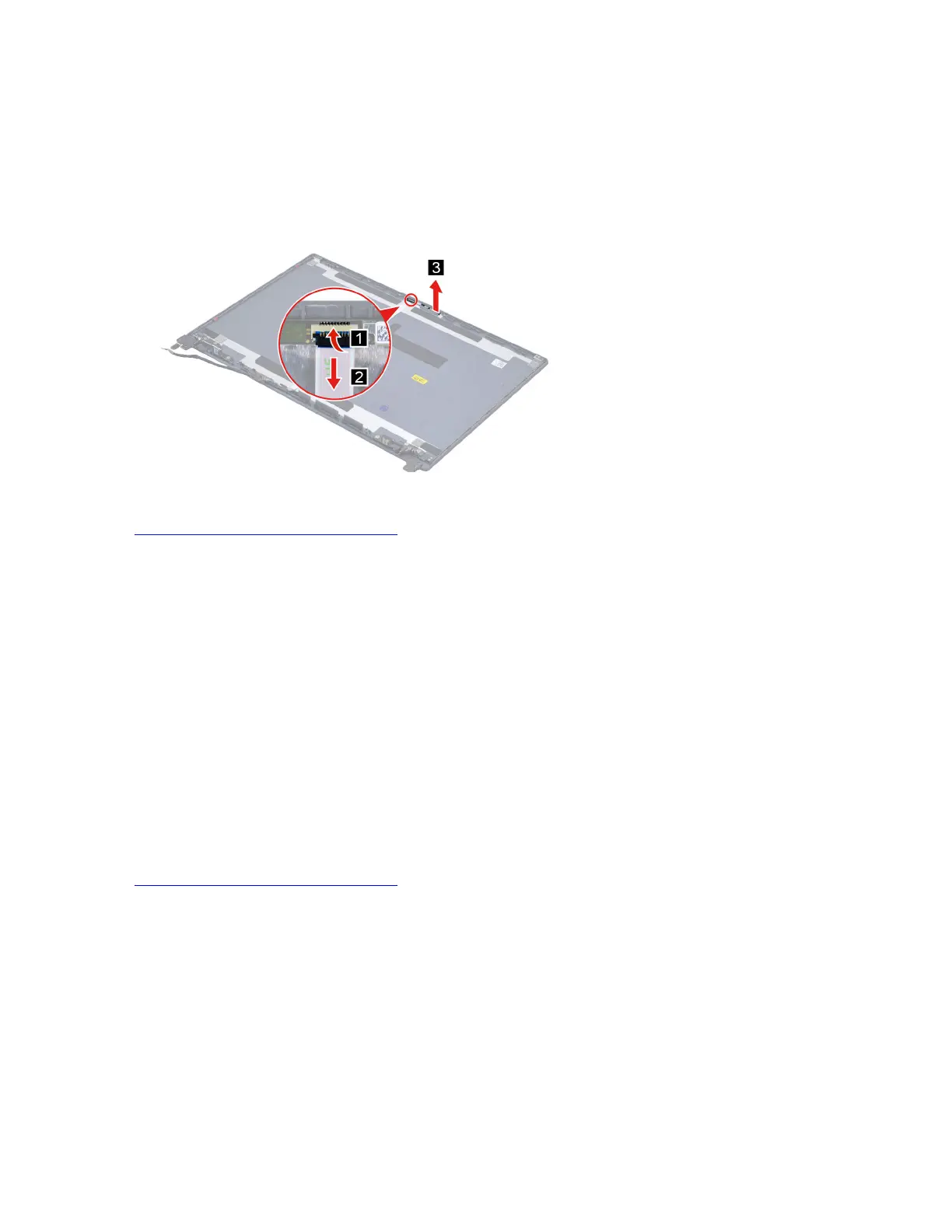

Step 1. Disconnect the EDP cable from the camera board and then remove the camera.
Figure 60. Disconnect the EDP cable from the camera board and then remove the camera
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Camera
Removable tapes
Remove the LCD cover
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 58
“Remove the LCD bezel” on page 60
“Remove the hinges” on page 60
“Remove the LCD panel” on page 61
“Remove the microphone rubbers” on page 62
“Remove the EDP cable” on page 63
“Remove the camera” on page 63
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
LCD cover
64
Hardware Maintenance Manual
