Remove the I/O board
Make sure the following FRU (or CRU) have been removed.
“Remove the lower case” on page 48
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove two screws and then open the hinge.

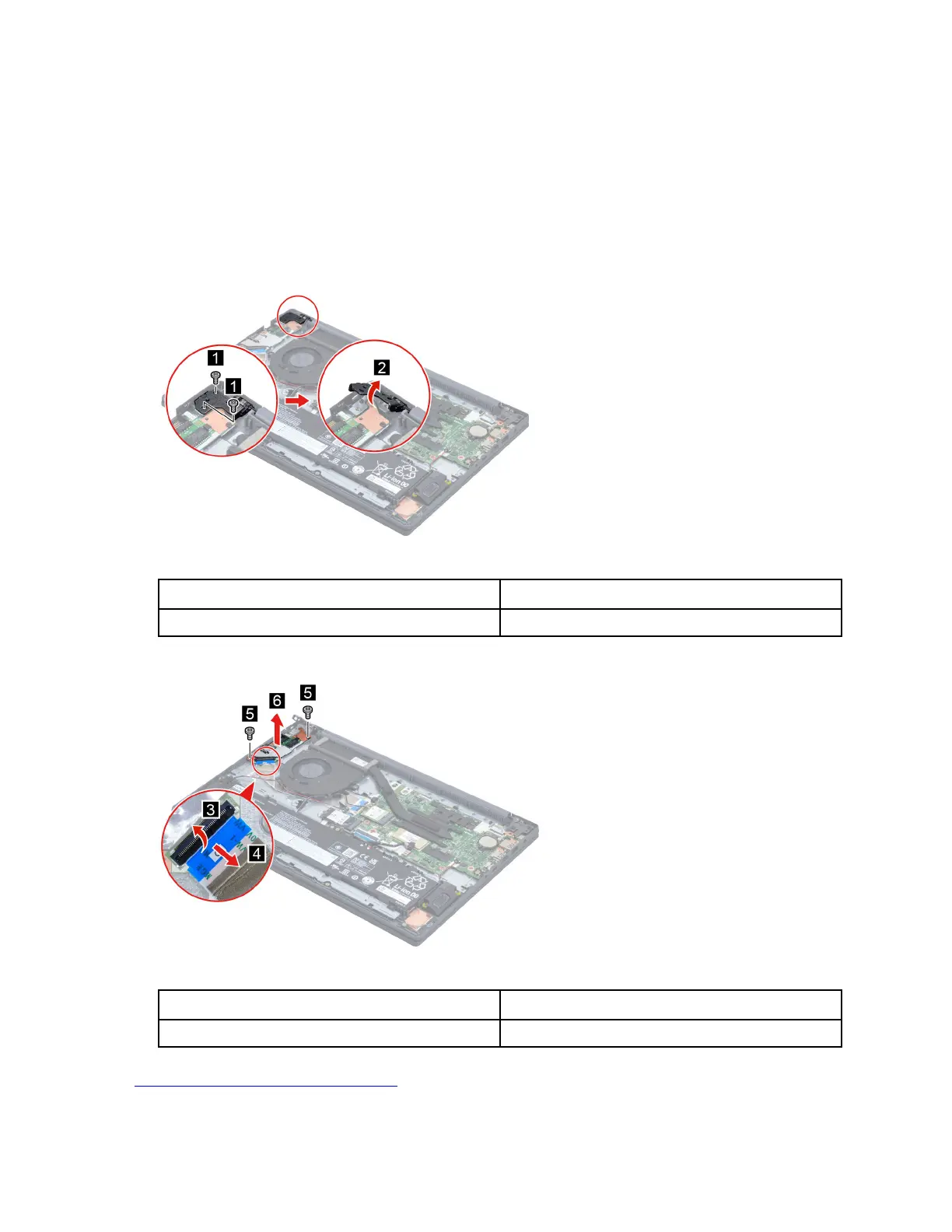

Figure 45. Remove two screws and then open the hinge
Screw specifications
Number of screws
M2.5 x L5 2
Step 3. Disconnect the I/O board cable from the I/O board. Remove two screws, remove the I/O board.
Figure 46. Remove the I/O board
Screw specifications
Number of screws
M2 x L3.5 2
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
54
Hardware Maintenance Manual
