Remove the fan
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 30
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Disconnect the fan cable from the system board and then release the cable from the cable guide.

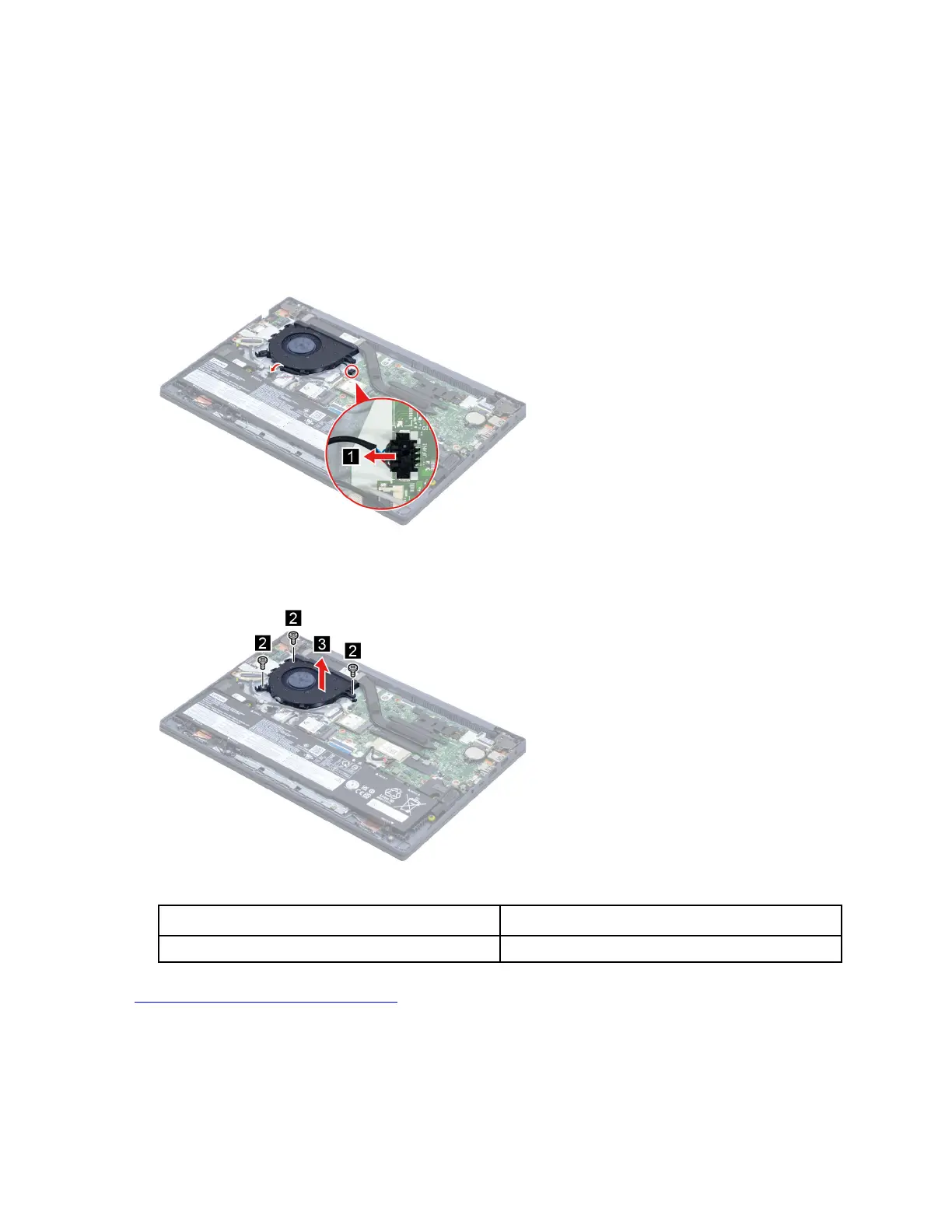

Figure 15. Disconnect the fan cable from the system board
Step 3. Remove three screws and then remove the fan.
Figure 16. Remove three screws and then remove the fan
Screw specifications Number of screws
M2 x L5 3
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Fan
