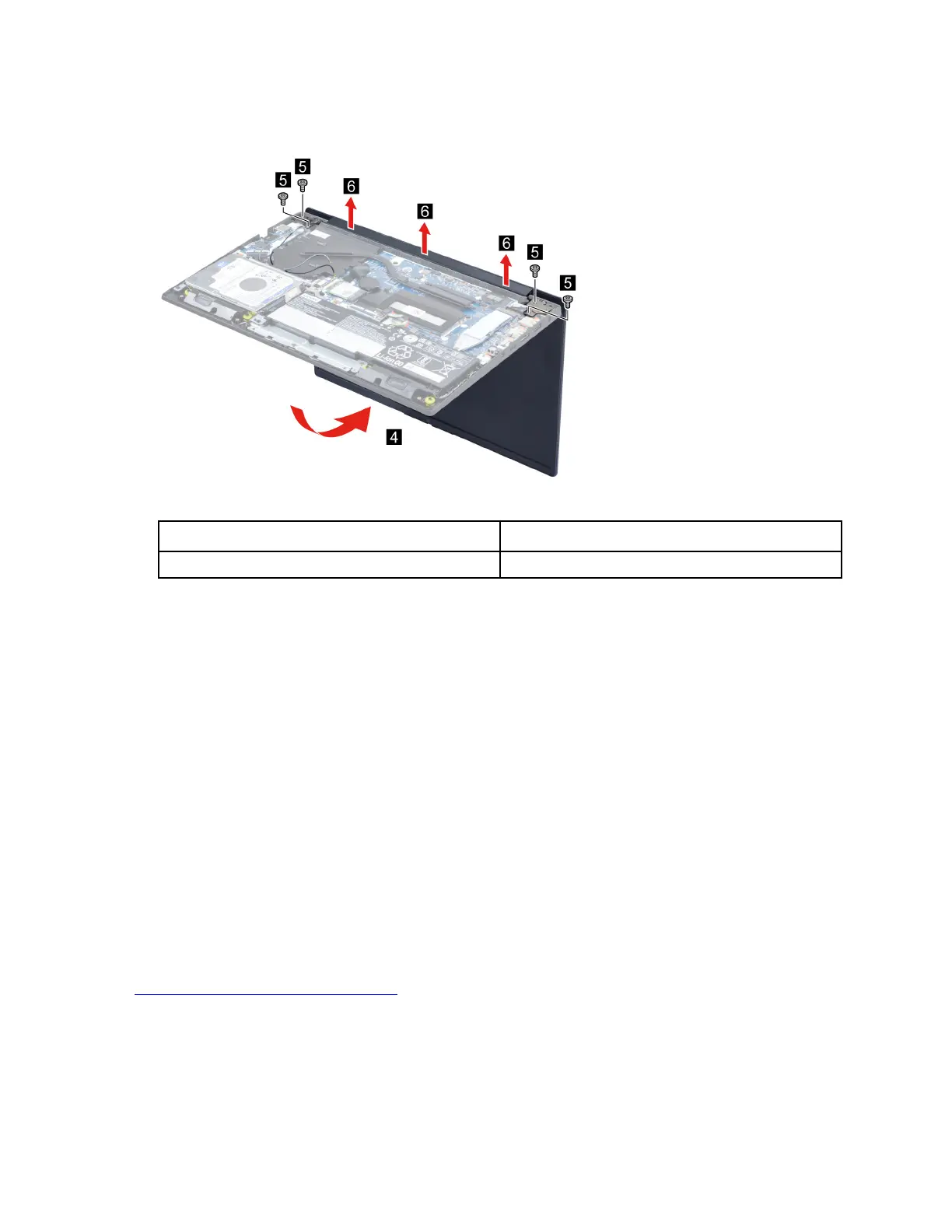

Step 3. Rotate the LCD unit to an angle of more than 90 degrees and place the computer on a flat surface
as shown. Remove four screws and then remove the LCD module.
Figure 32. Remove four screws and then remove the LCD module
Screw specifications
Number of screws
M2.5 x L5 4
Remove the upper case
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 34
“Remove the hard disk drive (HDD) module” on page 35
“Remove the battery pack” on page 37
“Remove the solid-state drive (SSD) module” on page 37
“Remove the Wi-Fi card” on page 39
“Remove the CMOS battery” on page 40
“Remove the memory module” on page 40
“Remove the heat sink” on page 42
“Remove the fan” on page 42
“Remove the I/O board module” on page 43
“Remove the system board and the touchpad board cable” on page 45
“Remove the LCD module” on page 47
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case
48
Hardware Maintenance Manual
