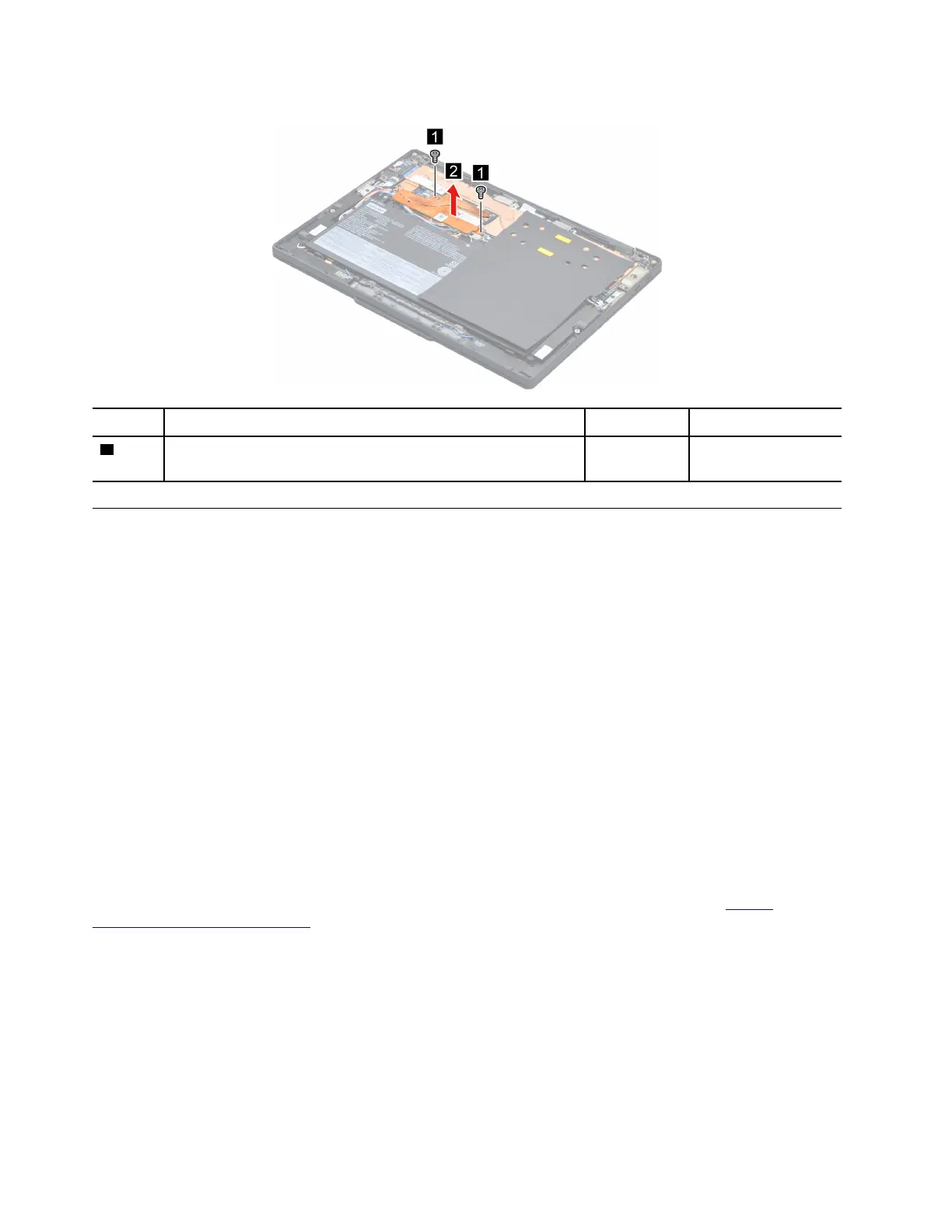

Removal steps of the thermal bracket
Step Screw (quantity) Color Torque
1
M1.6 × 2.5 mm, flat-head, nylon-coated (2) Silver 0.1±0.015 Nm
(1.1±0.05 kgf-cm)
1040 M.2 solid-state drive and thermal pad
For access, remove this FRU:
• “1010 Base cover assembly” on page 59
• “1030 Thermal bracket (for selected models)” on page 61
Attention: The M.2 solid-state drive is sensitive. Inappropriate handling might cause damage and
permanent loss of data.
When handling the M.2 solid-state drive, observe the following guidelines:
• Replace the M.2 solid-state drive only for upgrade or repair. The M.2 solid-state drive is not designed for
frequent changes or replacement.
• Before replacing the M.2 solid-state drive, make a backup copy of all the data that you want to keep.
• Do not apply pressure to the M.2 solid-state drive.
• Do not touch the contact edge or circuit board of the M.2 solid-state drive. Otherwise the M.2 solid-state
drive might get damaged.
• Do not make the M.2 solid-state drive subject to physical shocks or vibration. Put the M.2 solid-state drive
on a soft material, such as cloth, to absorb physical shocks.
If your computer is installed with a hybrid solid-state drive (with Intel Optane memory), go to
https://
support.lenovo.com/docs/tg_ssd
to know the details on how to replace it.
62
ThinkPad X13s Gen 1 Hardware Maintenance Manual
