Connector and cable guide
This topic provides information to help Lenovo authorized service technicians identify connectors and cables
for replacement purpose. To view each FRU and the exploded illustration of the computer, see “Major FRUs
and CRUs” on page 43.
Note: Depending on your computer model, some connectors or cables might not be available.

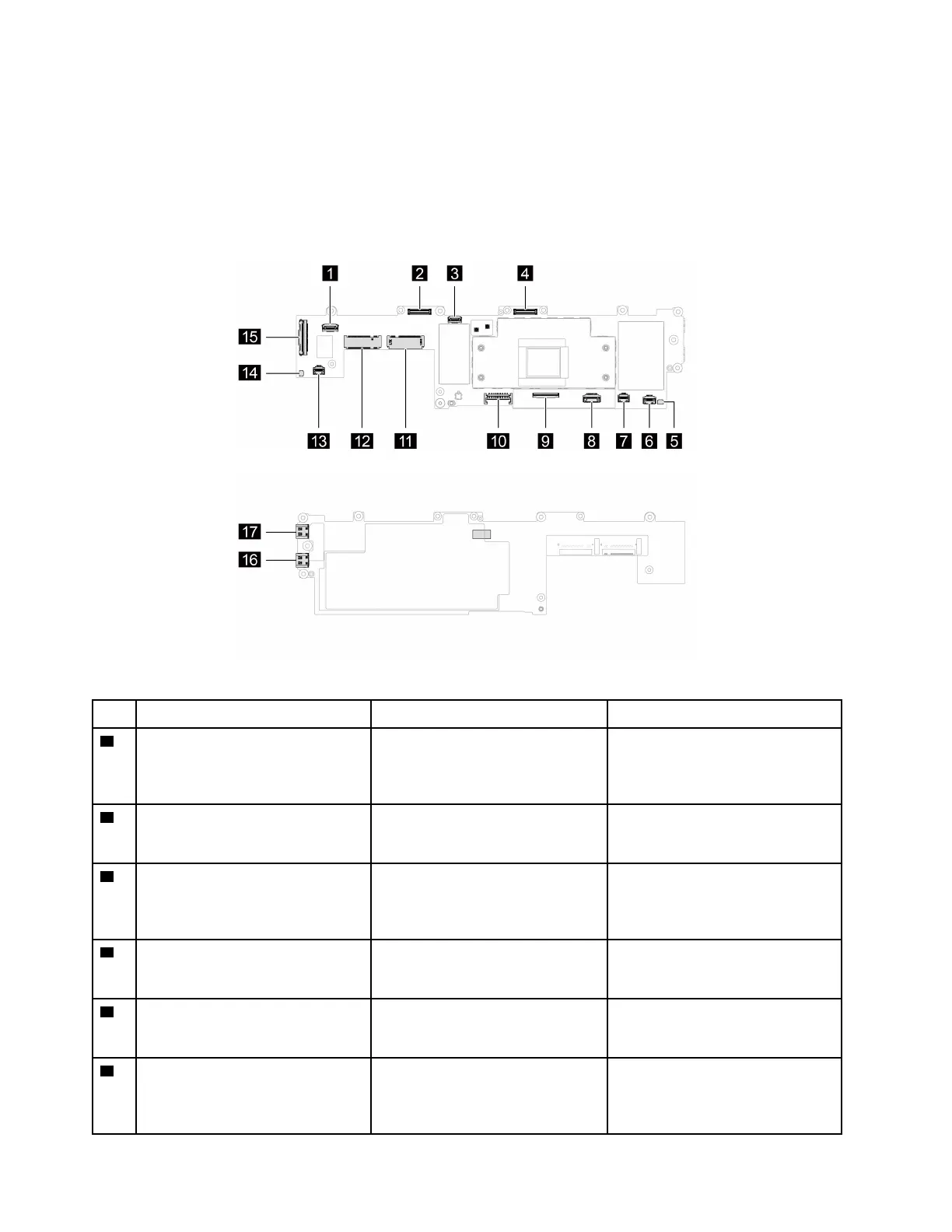

System board connectors and cables
Table 8. System board connector and cable guide
No. Connector/feature Internal cable required Cable connection
1
Power button module with/without
fingerprint reader connector
(internal)
Power button module with/without
fingerprint reader cable
The power button module with/
without fingerprint reader comes
with the cable. Connect the cable
to this connector.
2
Camera connector (internal) Camera cable The LCD unit comes with the
cable. Connect the cable to this
connector.
3
5G mmWave Wireless WAN
antenna power connector (middle)
(internal)
5G mmWave Wireless WAN
antenna cable (middle)
Connect one end to the 5G
mmWave Wireless WAN antenna
kit (middle) and the other end to
this connector.
4
LCD connector (internal) LCD cable The LCD unit comes with the
cable. Connect the cable to this
connector.
5
Speaker connector (internal) Speaker cable The speaker come with the cable.
Connect the cable to the
connector.
6
5G mmWave Wireless WAN
antenna power connector (left)
(internal)
5G mmWave Wireless WAN
antenna cable (left)
Connect one end to the 5G
mmWave Wireless WAN antenna
kit (left) and the other end to this
connector.
46 ThinkPad X13s Gen 1 Hardware Maintenance Manual
