Note: Dropping a system board from a height of as little as six inches so that it falls flat on a hard bench

can subject the accelerometer to as much as 6000 G's of shock.

• Be careful not to drop the system board on a bench top that has a hard surface, such as metal, wood, or

composite.

• Avoid rough handling of any kind.

• At every point in the process, be sure not to drop or stack the system board.

• If you put a system board down, be sure to put it only on a padded surface such as an ESD mat or a

corrugated conductive material.

For access, remove these FRUs in order:

• “1010 Base cover assembly” on page 64

• “1020 Built-in battery” on page 66

• “1030 M.2 SSD, bracket, and thermal pad” on page 67

• “1040 Wireless WAN card and bracket (for selected models)” on page 68

• “1070 Thermal fan assembly” on page 72

• “1080 Audio board” on page 72

• “1090 USB board” on page 73

Removal steps of the system board assembly

This computer shares a common system board with another computer. After replacing the system board,

you will be prompted to input a brand name to correctly identify the machine type. The following table

contains the brand name required to complete this step.

Note: Input the exact brand name as shown in this table.

Product name Machine types

Shared with

ThinkPad X1 Yoga Gen 8 20HQ and 20HR ThinkPad X1 Carbon Gen 11

ThinkPad X1 Carbon Gen 11

20HM and 20HN

ThinkPad X1 Yoga Gen 8

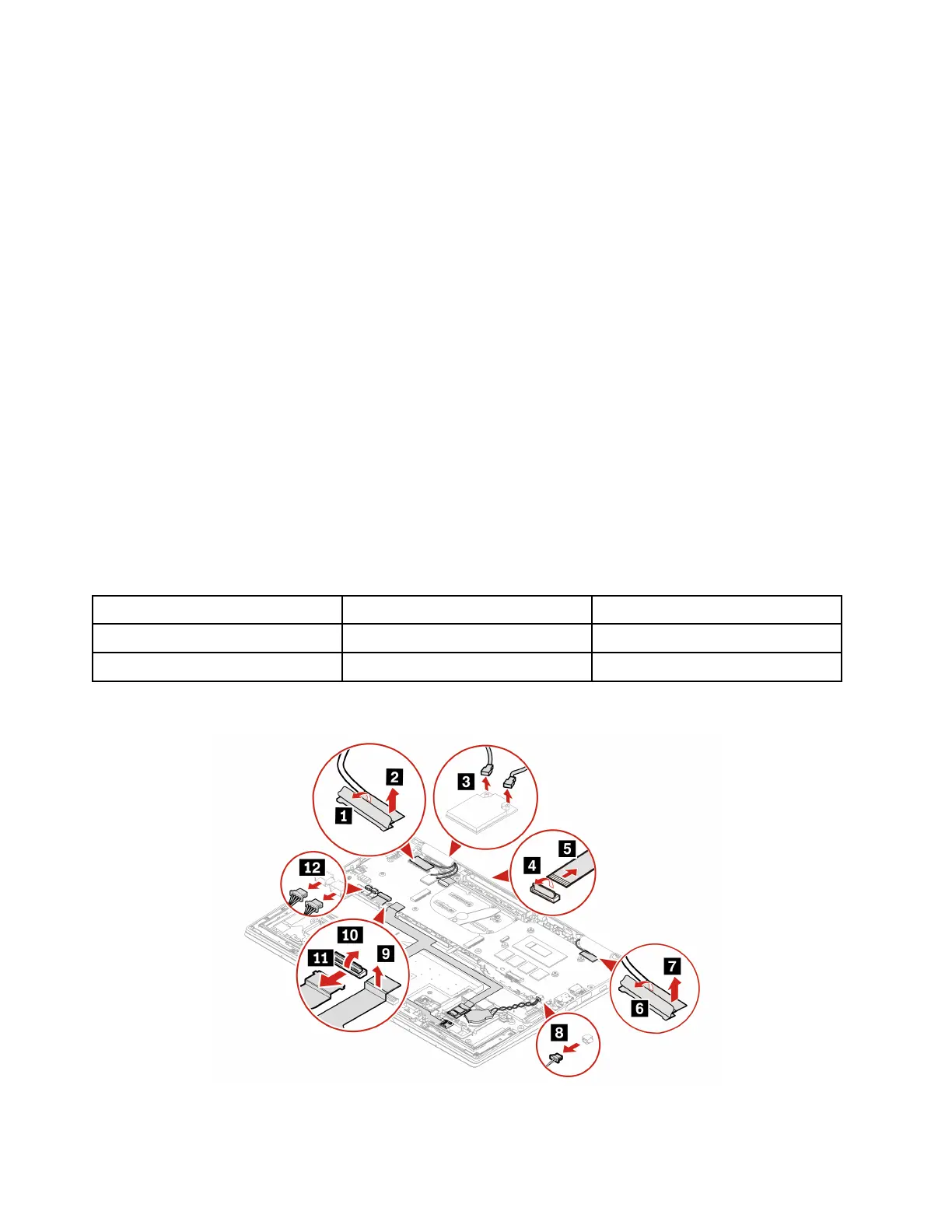

Removal steps of system board (for ThinkPad X1 Yoga Gen 8)

86 ThinkPad X1 Carbon Gen 11 and X1 Yoga Gen 8 Hardware Maintenance Manual
