1030 M.2 SSD, bracket, and thermal pad

For access, remove this FRU:

• “1010 Base cover assembly” on page 64

Attention:

• Do not drop the drive or apply any physical shock to it. The drive is sensitive to physical shock. Improper

handling can cause damage and permanent loss of data.

• Before removing the drive, have the user make a backup copy of all the information on it if possible.

• Never remove the drive while the system is operating or in sleep mode.

• In case of M.2 SSD replacement, you computer only supports single-sided M.2 SSD. Double-sided M.2

SSD is not applicable due to the height limitation of the slot.

• When handling the M.2 solid-state drive, remove or insert the M.2 solid-state drive horizontally. Otherwise

the slot might get damaged.

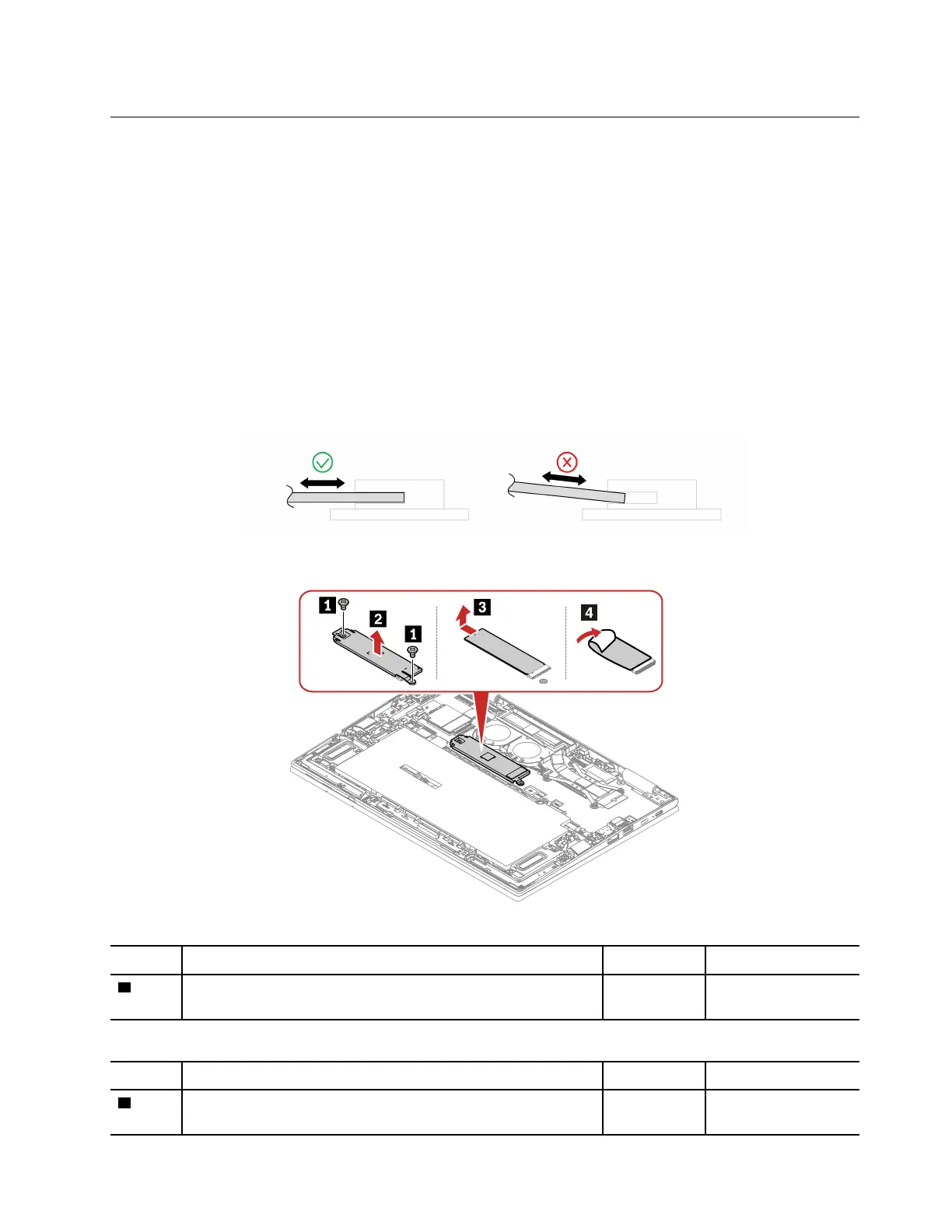

Removal steps of M.2 SSD, SSD bracket and thermal pad

Table 5. ThinkPad X1 Yoga Gen 8

Step Screw (quantity) Color

Torque

1

M2.0 × L2.2 mm (2) Silver

0.181 Nm

(1.85 kgf-cm)

Table 6. ThinkPad X1 Carbon Gen 11

Step Screw (quantity) Color

Torque

1

M2.0 × L2.8 mm (2) Silver

0.181 Nm

(1.85 kgf-cm)

Chapter 8. Removing or replacing a FRU 67
