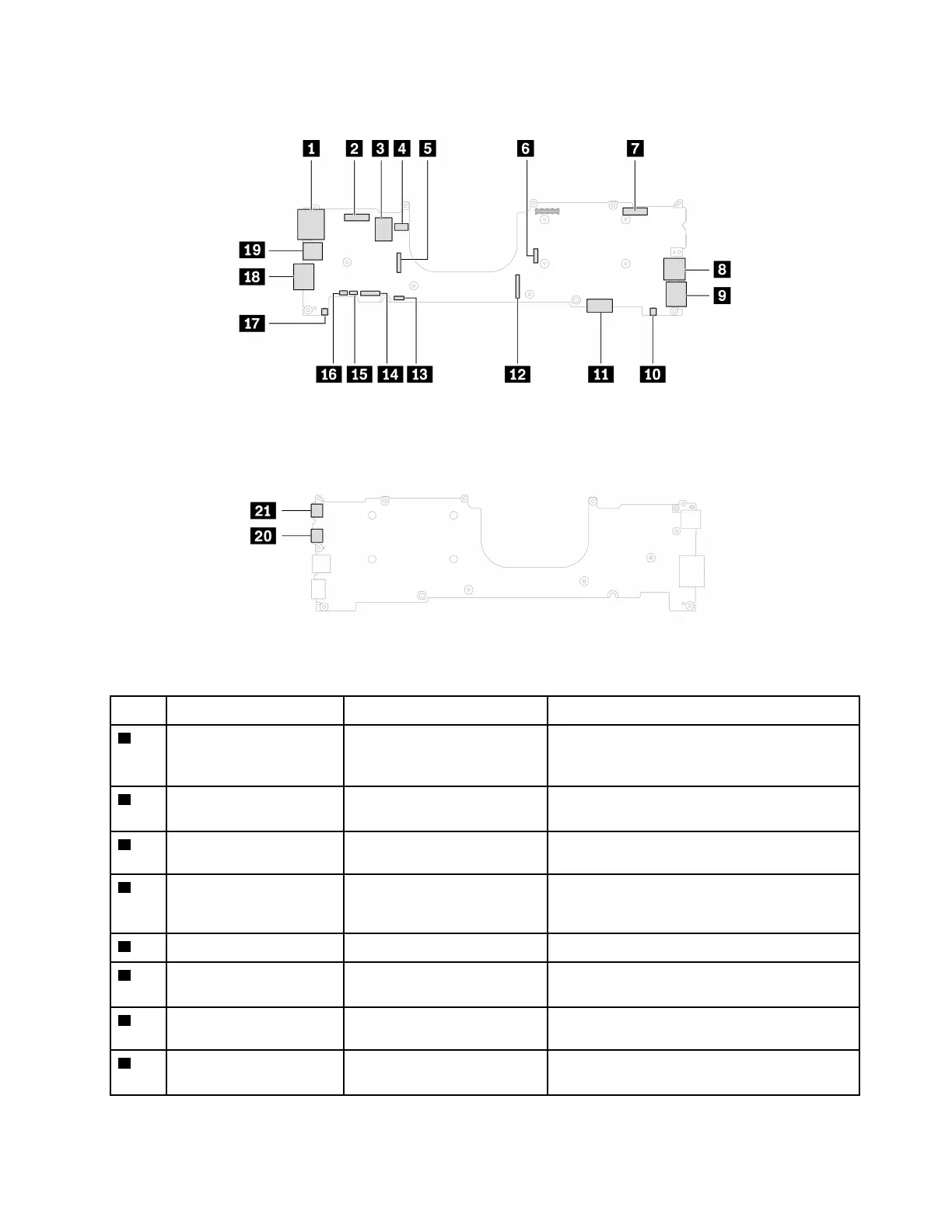

System board connectors and cables

Item Connector (location) Internal cable required Cable connection

1

Always on USB 3.2

connector Gen 1

(external)

No Connect USB-A compatible devices.

2

Camera connector

(internal)

Camera cable The LCD unit comes with the camera cable.

Connect the cable to this connector.

3

WLAN antenna connector WLAN antenna

The LCD unit comes with the WLAN antenna.

Connect the antenna to this connector.

4

Power button with

fingerprint reader

connector

Power button and fingerprint

reader cable

The power button with fingerprint reader

module comes with the cable. Connect the

cable to this connector.

5

WWAN card slot (internal) No Insert a WWAN card into this slot.

6

Thermal fan connector

(internal)

No The thermal fan assembly comes with cable.

Connect the cable to this connector.

7

LCD connector (internal) LCD cable The LCD unit comes with the LCD cable.

Connect the cable to this connector.

8

USB 3.2 connector Gen 1

(external)

No

Connect USB-A compatible devices.

Chapter 6. Locations 53
