If the Vantage app is not installed on the computer, the customer should download and install the program to

diagnose the built-in battery, before getting a non-physically damaged built-in battery replaced. Note that the

replacement of a physically damaged built-in battery is not covered by the warranty.

For access, remove this FRU:

• “1010 Base cover assembly” on page 60

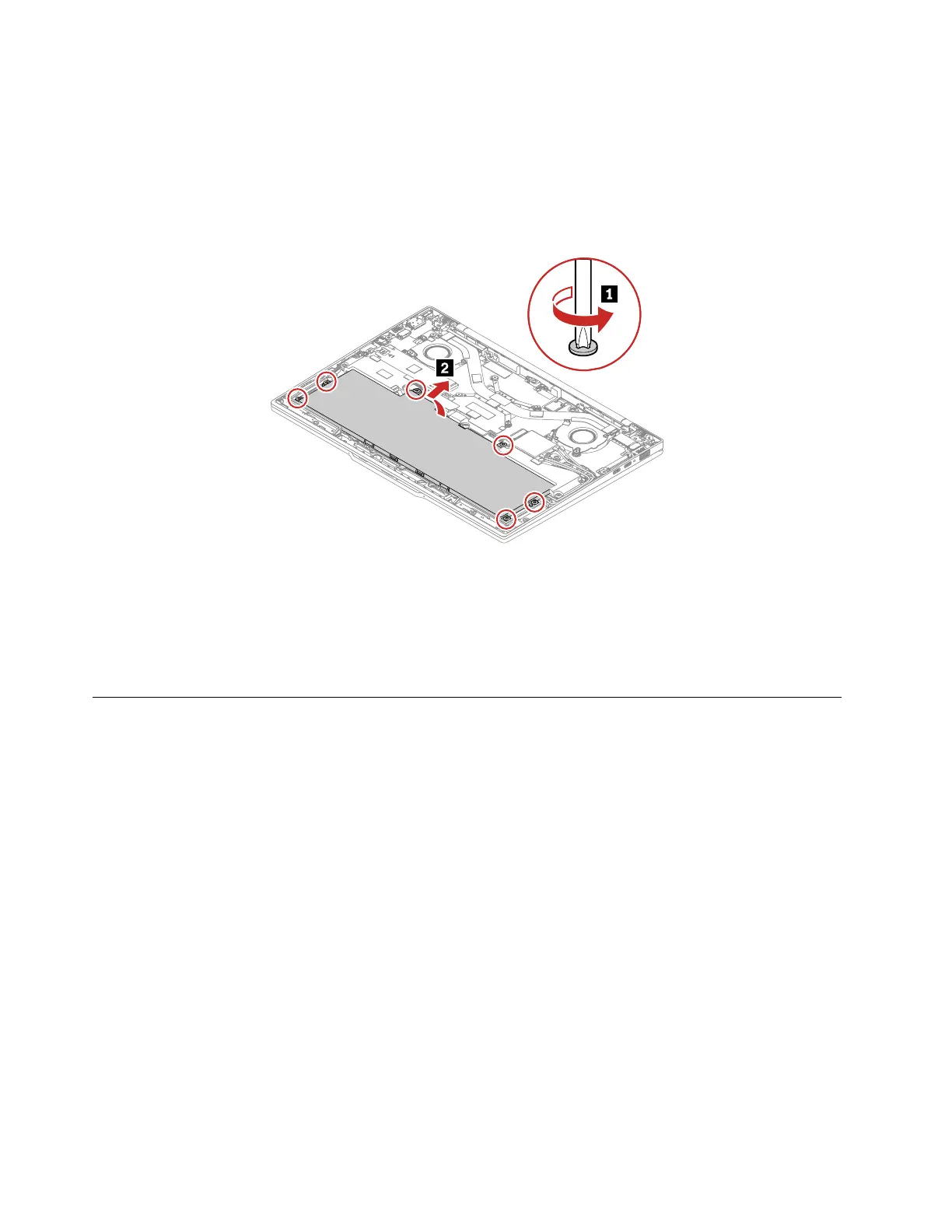

Removal steps of the built-in battery

When installing:

• Ensure that no any foreign material or screws are left on the battery area before installing.

• Align the connector of the built-battery with the key in the slot. Then, insert the battery into the slot at an

angle of about 35 degrees and pivot the battery downwards. Press the battery connector and tighten

screws to secure built-in battery assembly.

1030 M.2 solid-state drive and bracket

For access, remove this FRU:

• “1010 Base cover assembly” on page 60

Attention: The M.2 solid-state drive is sensitive. Inappropriate handling might cause damage and

permanent loss of data.

When handling the M.2 solid-state drive, observe the following guidelines:

• Replace the M.2 solid-state drive only for repair. The M.2 solid-state drive is not designed for frequent

changes or replacement.

• Before replacing the M.2 solid-state drive, make a backup copy of all the data that you want to keep.

• Do not apply pressure to the M.2 solid-state drive.

• Do not touch the contact edge or circuit board of the M.2 solid-state drive. Otherwise the M.2 solid-state

drive might get damaged.

• Do not make the M.2 solid-state drive subject to physical shocks or vibration. Put the M.2 solid-state drive

on a soft material, such as cloth, to absorb physical shocks.

• Remove or insert the M.2 solid-state drive horizontally. Otherwise the slot might get damaged.

62

ThinkPad X1 Carbon Gen 12 and ThinkPad X1 2-in-1 Gen 9 Hardware Maintenance Manual
