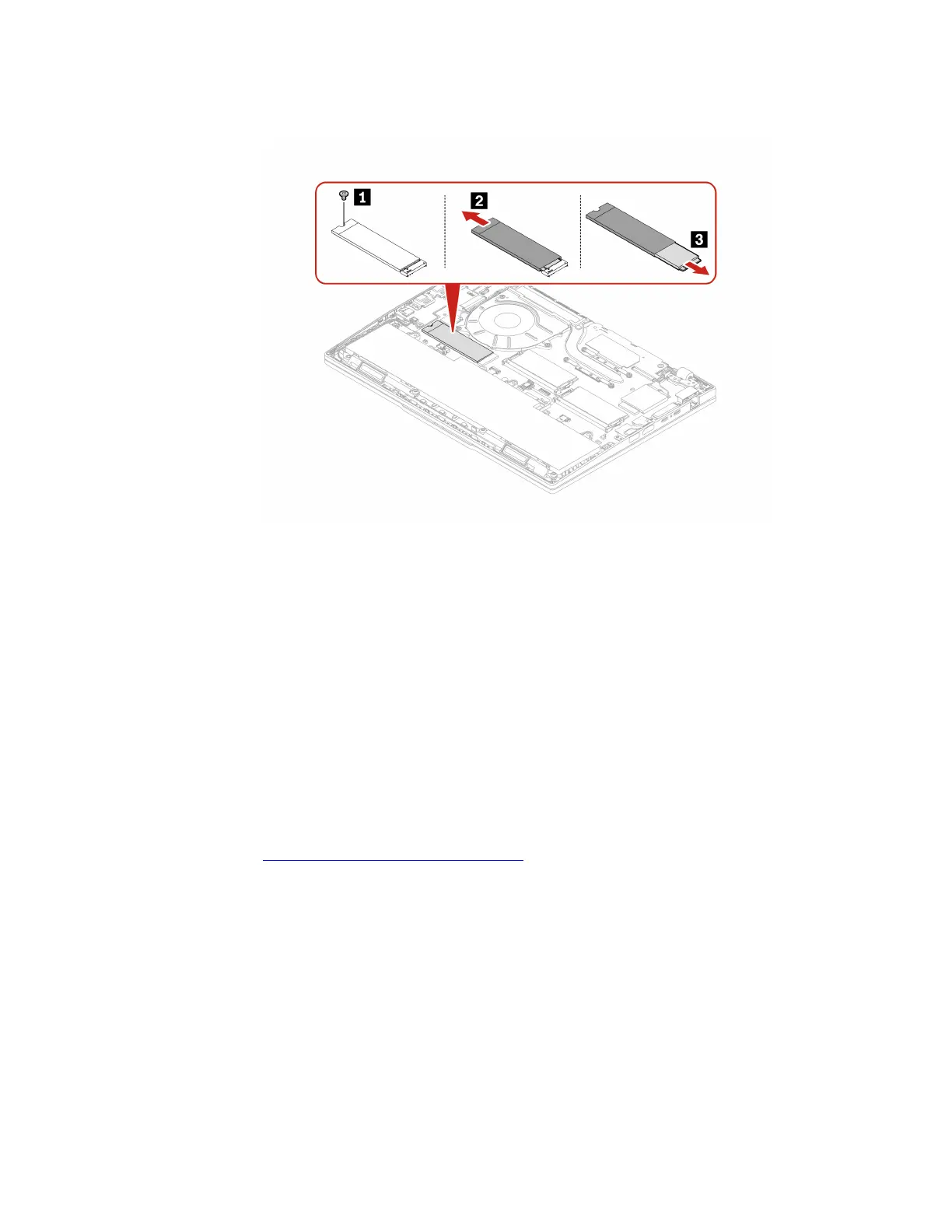

Step 1. Remove the 2280 M.2 solid-state drive as shown below.
Step 2. Install the 2280 M.2 solid-state drive in reverse order.
Wireless WAN module (for selected models)
Follow the instructions to replace the wireless WAN module.
The following information is only for the computer with user-installable modules. Ensure that you use only a
Lenovo-authorized wireless module specifically tested for this computer model. Otherwise, the computer will
generate an error-code beep sequence when you turn on the computer.
Notes:
• Wireless WAN ready model identifies that product has preinstalled wireless WAN antennas and allows a
user-installable wireless WAN module.
• Only wireless WAN model or wireless WAN ready model is allowed to install the optional Lenovo wireless
WAN module.
Before you start, read
Generic Safety and Compliance Notices and print the following instructions.
Attention: Do not touch the contact edge of the wireless WAN module. Otherwise, the wireless WAN
module might get damaged.
For access, do the following:
1. Disable the built-in battery. See “Disable the built-in battery” on page 50.
2. Turn off the computer and disconnect the computer from ac power and all connected cables.
3. Close the computer display and turn over the computer.
4. Remove the base cover assembly. See “Base cover assembly” on page 54.
Note: A plastic tape might cover the wireless WAN module connectors. To access the wireless WAN
module, peel off the tape first. Do not damage the tape and attach it in place after installation.
Chapter 6. CRU replacement 59
