2242 M.2 solid-state drive and its bracket (for selected models)

Follow the instructions to replace the 2242 M.2 solid-state drive and its bracket.

Before you start, read

Generic Safety and Compliance Notices.

Attention: The M.2 solid-state drive is sensitive. Inappropriate handling might cause damage and

permanent loss of data.

When handling the M.2 solid-state drive, observe the following guidelines:

• Replace the M.2 solid-state drive only for repair. The M.2 solid-state drive is not designed for frequent

changes or replacement.

• Before replacing the M.2 solid-state drive, make a backup copy of all the data that you want to keep.

• Do not apply pressure to the M.2 solid-state drive.

• Do not touch the contact edge or circuit board of the M.2 solid-state drive. Otherwise, the M.2 solid-state

drive might get damaged.

• Do not subject the M.2 solid-state drive to physical shocks or vibration. Put the M.2 solid-state drive on a

soft material, such as cloth, to absorb physical shocks.

1. Disable Fast Startup and the built-in battery. See “Before you replace any CRU” on page 34.

2. Turn off the computer and disconnect the computer from ac power and all connected cables.

3. Close the computer display and turn over the computer.

4. Remove the base cover assembly. See “Base cover assembly” on page 34.

Tool needed: Phillips head screwdriver

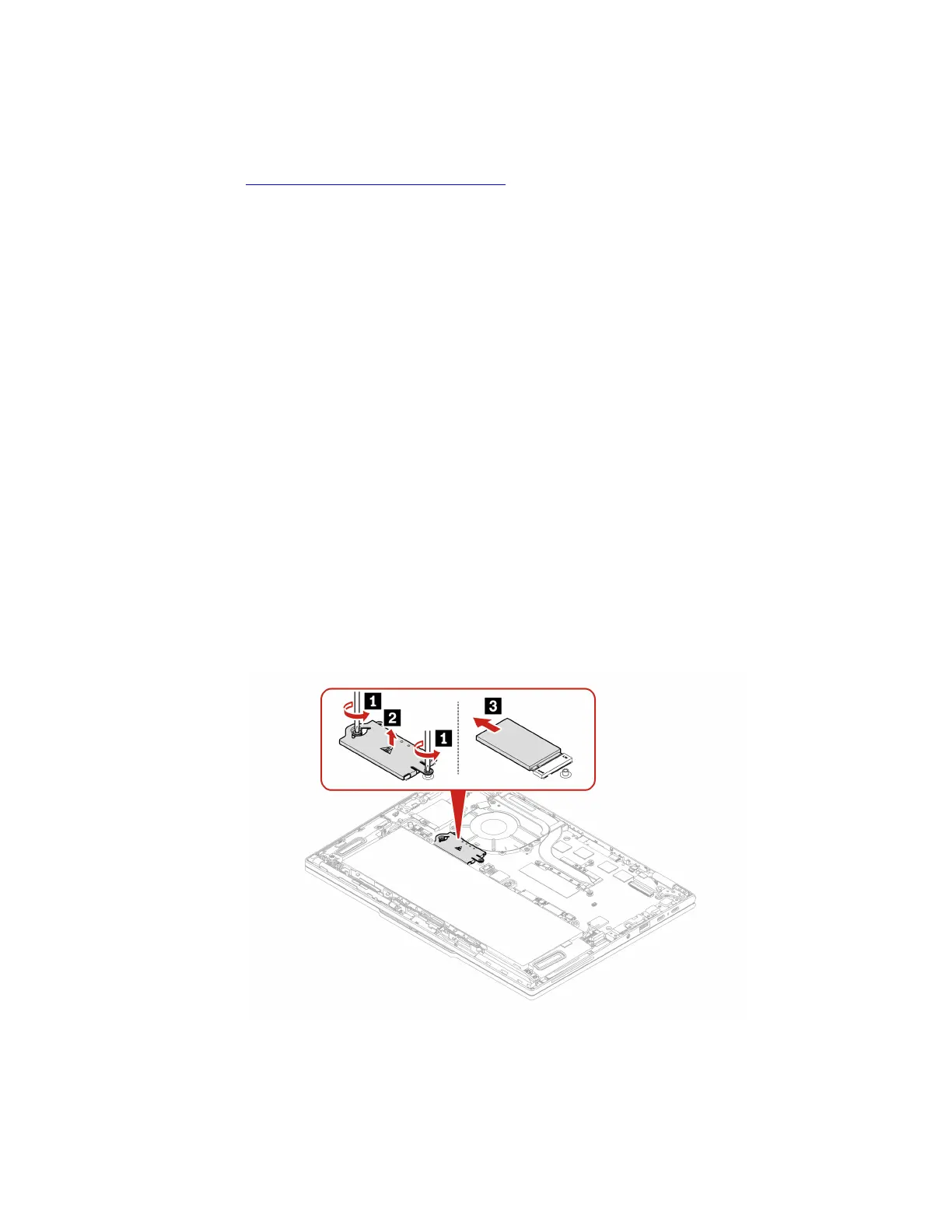

Step 1. Remove the M.2 solid-state drive and its bracket as shown below.

Step 2. Install the M.2 solid-state drive and its bracket in reverse order.

Speaker assembly

Follow the instructions to replace the speaker assembly.
