Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
Microphone rubber
Remove the IR sponges
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the LCD module” on page 55
“Remove the LCD bezel” on page 57
“Remove the LCD panel” on page 58
“Remove the camera shutter” on page 60

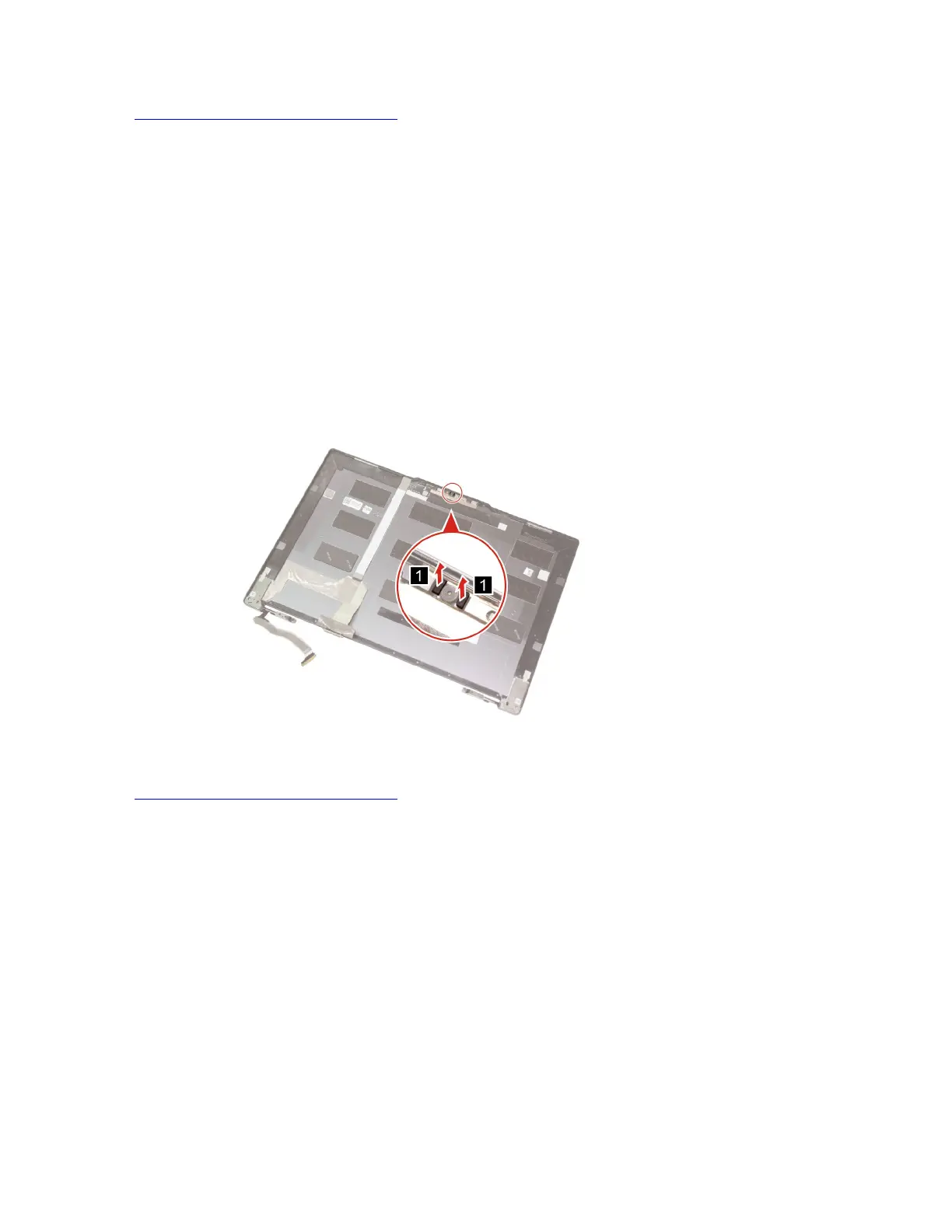

Step 1. Remove the IR sponges.
Figure 53. Remove the IR sponges
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
IR sponge
Remove the camera board
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the LCD module” on page 55
“Remove the LCD bezel” on page 57
“Remove the LCD panel” on page 58
“Remove the camera shutter” on page 60
“Remove the microphone rubbers” on page 61
“Remove the IR sponges” on page 62
62
Lenovo ThinkBook 16p Gen 5 Hardware Maintenance Manual
