“Remove the lower case” on page 29
Step 1. Disconnect the battery pack cable from the system board. Remove one screw and then remove the
2280 SSD module by pulling it away from the slot.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.

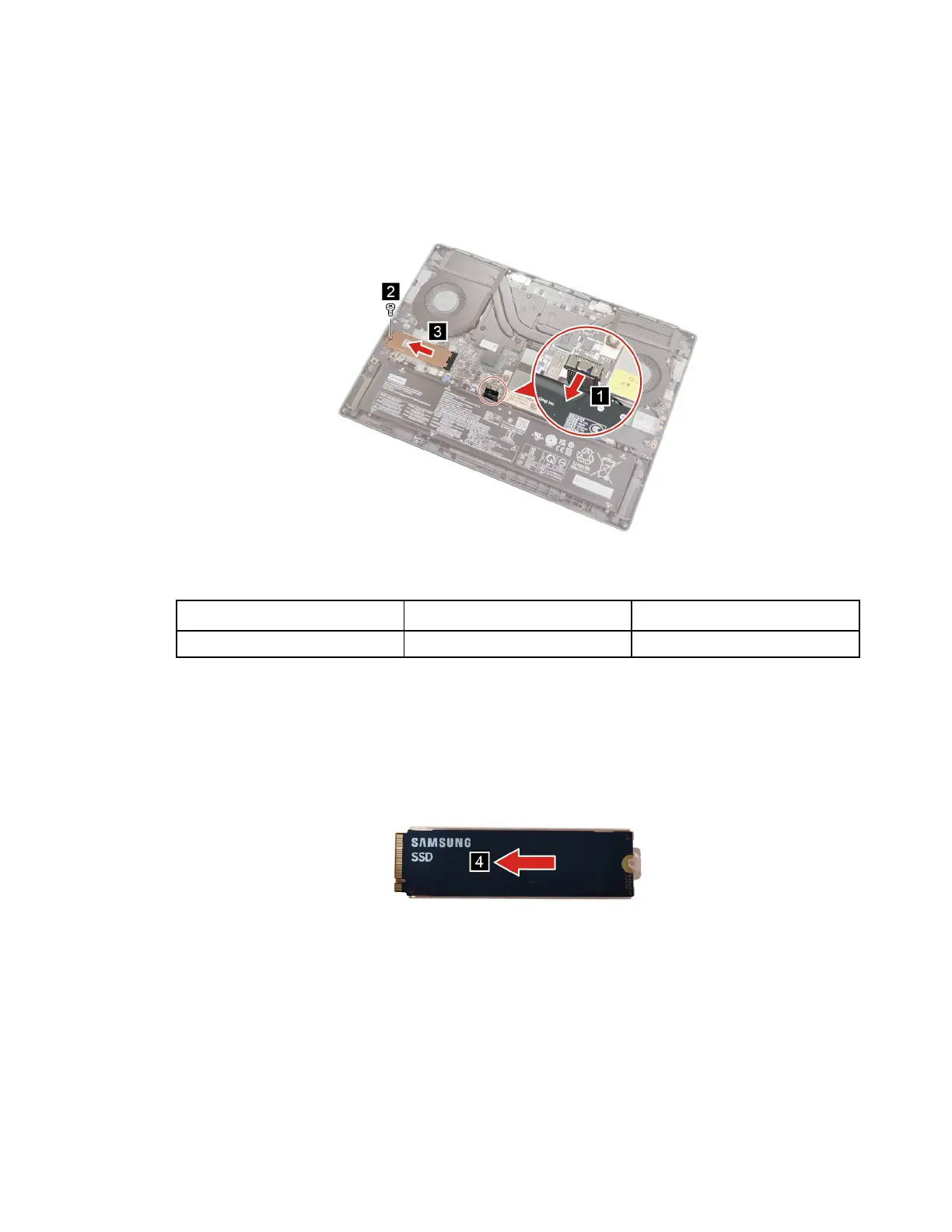

Figure 9. Disconnect the battery pack cable and remove one screw and the 2280 SSD module
Screw specifications Number of screws Torque force (kgf.cm)
M2 × L2 1 1.85 ± 0.15
Step 2. Remove the 2280 SSD from the 2280 SSD bracket.
Figure 10. Remove the 2280 SSD
Step 3. Remove the 2280 SSD thermal pad from the 2280 SSD bracket.
Chapter 4. Removing a FRU or CRU 33
