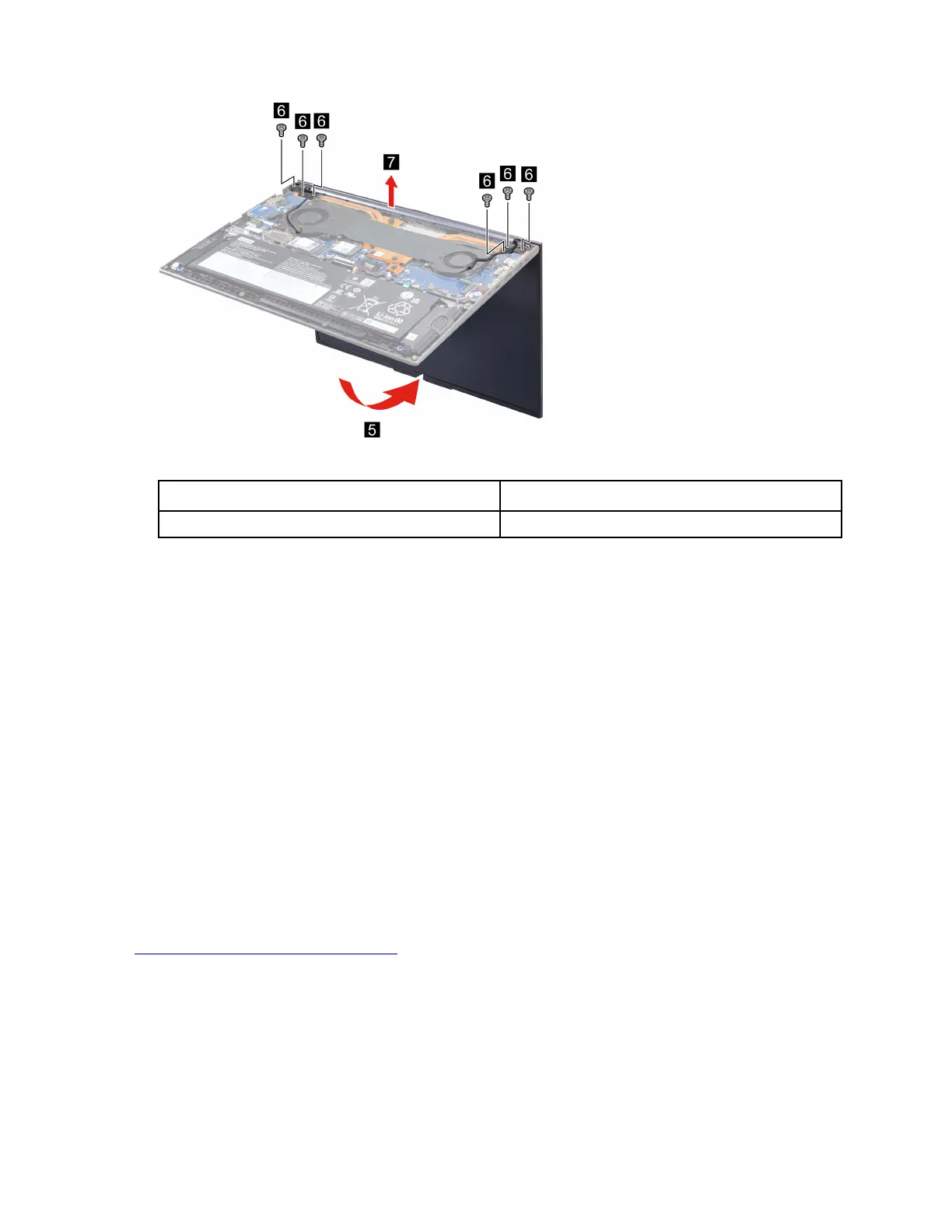

Figure 66. release cables and disconnect the antenna cables and EDP cable
Screw specifications
Number of screws
M2.5 x L5 6
Remove the upper case
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 54
“Remove the battery pack” on page 55
“Remove the solid-state drive (SSD) and solid-state drive (SSD) bracket” on page 55
“Remove the Wi-Fi card” on page 57
“Remove the speakers” on page 57
“Remove the heat sink” on page 58
“Remove the fans” on page 59
“Remove the I/O board and the CMOS battery” on page 60
“Remove the fingerprint board cable” on page 62
“Remove the touchpad cable” on page 63
“Remove the system board and the I/O board cable” on page 64
“Remove the LCD module” on page 67
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case
Disassemble the LCD module
The LCD module as a whole is not an FRU. Instead, it contains FRUs as its components. Before
disassembling the LCD module, make sure it has been detached from the upper case.
68
Hardware Maintenance Manual
