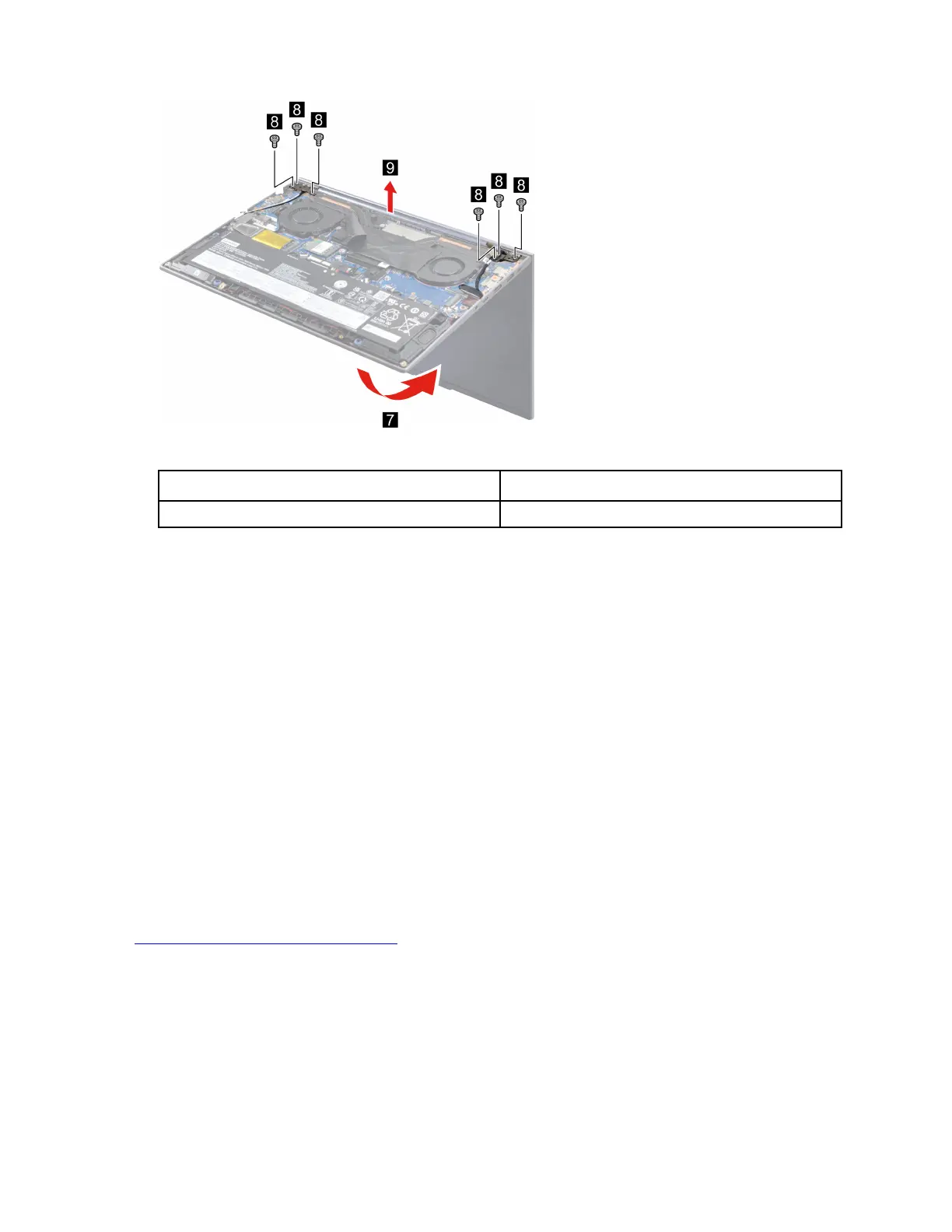

Figure 32. Remove the LCD module
Screw specifications
Number of screws
M2.5 x L5 6
Remove the upper case
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 34
“Remove the battery pack” on page 35
“Remove the solid-state drive (SSD) and solid-state drive (SSD) bracket” on page 36
“Remove the Wi-Fi card” on page 37
“Remove the speakers” on page 38
“Remove the heat sink” on page 39
“Remove the fans” on page 40
“Remove the I/O board and the CMOS battery” on page 41
“Remove the fingerprint board cable” on page 42
“Remove the touchpad cable” on page 43
“Remove the system board and the I/O board cable” on page 44
“Remove the LCD module” on page 47
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case
Disassemble the LCD module
The LCD module as a whole is not an FRU. Instead, it contains FRUs as its components. Before
disassembling the LCD module, make sure it has been detached from the upper case.
48
Hardware Maintenance Manual
