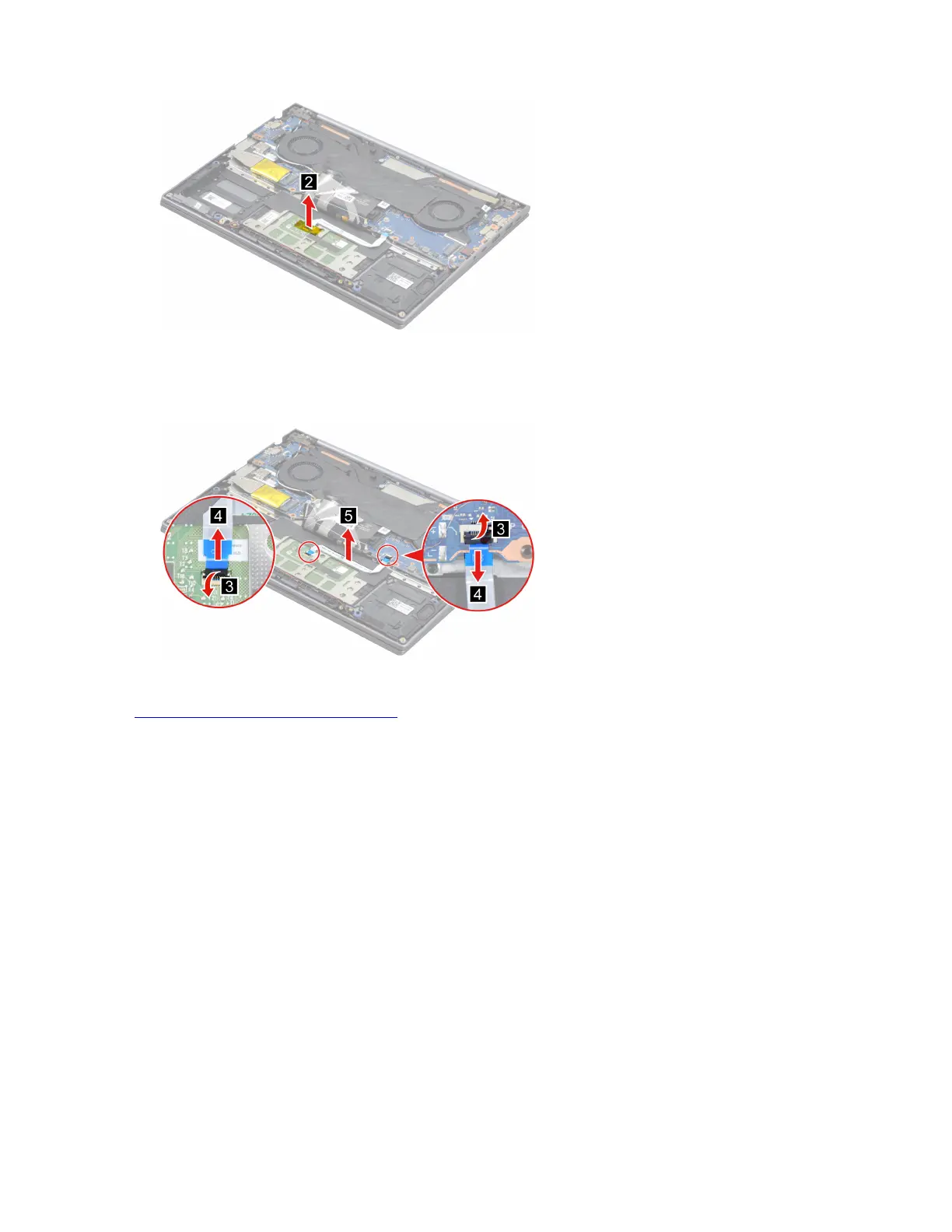

Figure 23. Peel off the touchpad golden mylar
Step 3. Disconnect the touchpad cable from the system board and the touchpad. Remove the touchpad
cable.
Figure 24. Remove the touchpad cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Touchpad cable
Touchpad golden mylar
Remove the system board and the I/O board cable
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 34
“Remove the solid-state drive (SSD) and solid-state drive (SSD) bracket” on page 36
“Remove the Wi-Fi card” on page 37
“Remove the heat sink” on page 39
“Remove the fans” on page 40
Step 1. Disconnect cables connected to the system board.
44
Hardware Maintenance Manual
