Storage drive cage
Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
For access, do the following:
1. Remove the power cord. See “Power cord” on page 46.
2. Remove the computer cover. See “Computer cover” on page 48.
3. Remove the front bezel. See “Front bezel” on page 49.
4. Remove the 3.5–inch storage drive if the storage drive is next to the power supply assembly. See “3.5-
inch storage drive” on page 50.

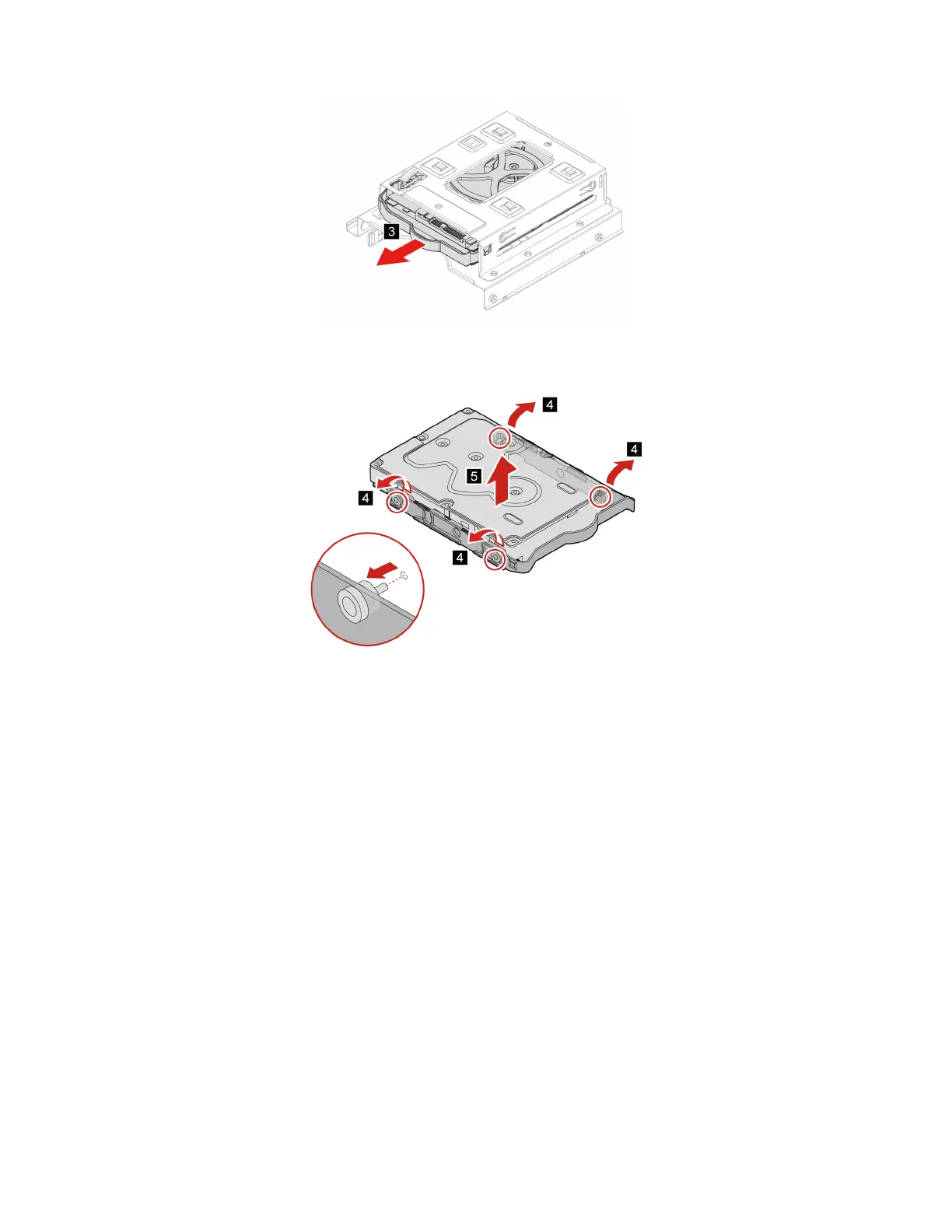

Removal steps
• Type 1
52
Hardware Maintenance Manual
