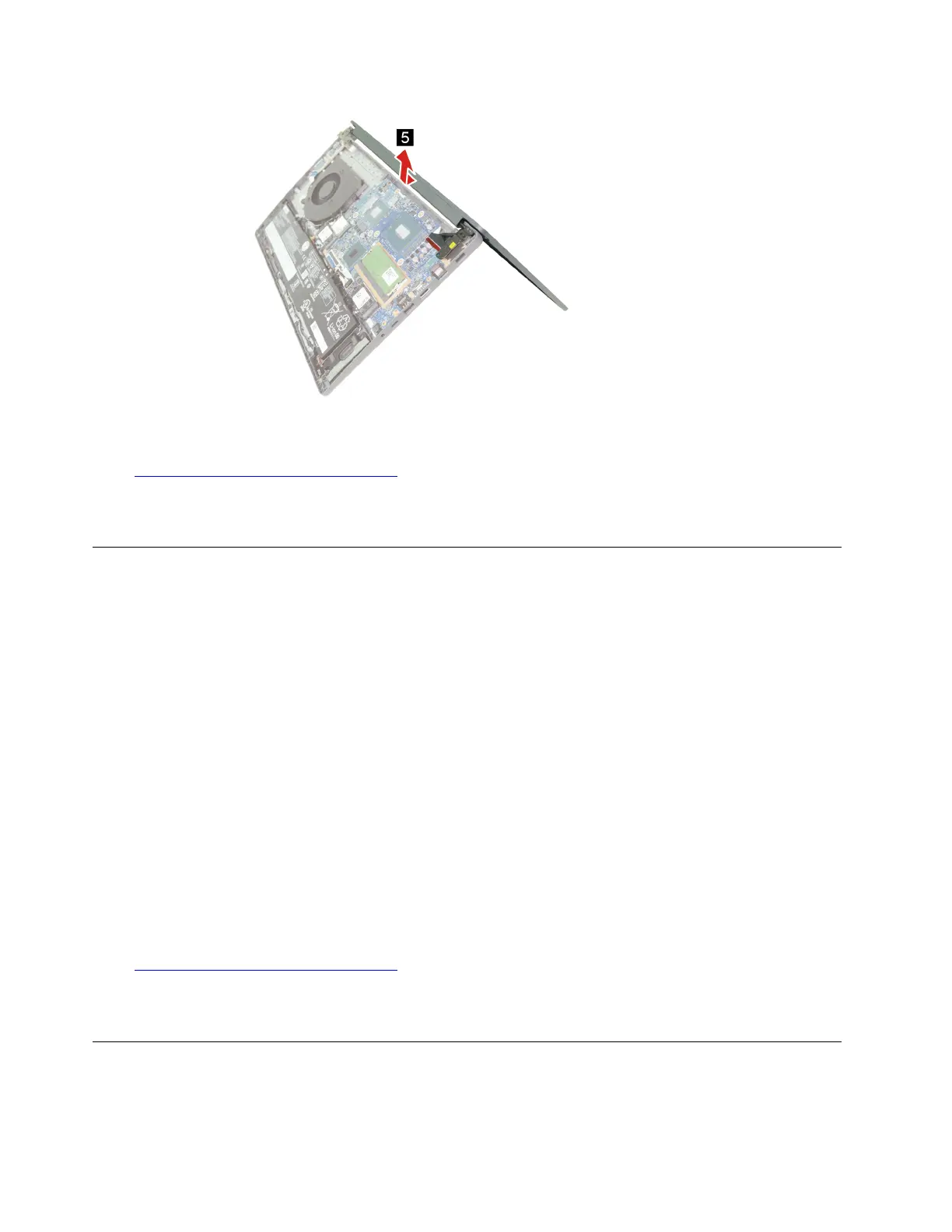

Figure 27. Rotate the LCD module and remove the LCD module
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
LCD module
Remove the upper case (with keyboard)
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the battery pack” on page 30
“Remove the touchpad cable” on page 31
“Remove the speakers” on page 32
“Remove the coin-cell battery” on page 33
“Remove the Wi-Fi card” on page 34
“Remove the 2242 solid-state drive” on page 34
“Remove the memory module” on page 35
“Remove the heat sink” on page 36
“Remove the fan” on page 37
“Remove the USB board” on page 38
“Remove the system board” on page 40
“Remove the LCD module” on page 42
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
Upper case (with keyboard)
Disassemble the LCD module
Before disassembling the LCD module, make sure it has been detached from the upper case assembly.
44
Lenovo LOQ Essential (15″, 9) Hardware Maintenance Manual
