Table 9. Screw used to secure the USB board
Thread
Length (mm) Torque (kgf.cm)
Quantity
M2.0 3.5 1.85 ± 0.15 1
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
USB board
Remove the system board
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the Wi-Fi card” on page 34
“Remove the 2242 solid-state drive” on page 34
“Remove the memory module” on page 35
“Remove the heat sink” on page 36
“Remove the fan” on page 37
Step 1. Disconnect the coin-cell battery battery cable, touchpad cable, keyboard cable, keyboard backlight
cable, speakers’ cable, and EDP cable from the system board. Then, disconnect the USB cable
from the USB board.

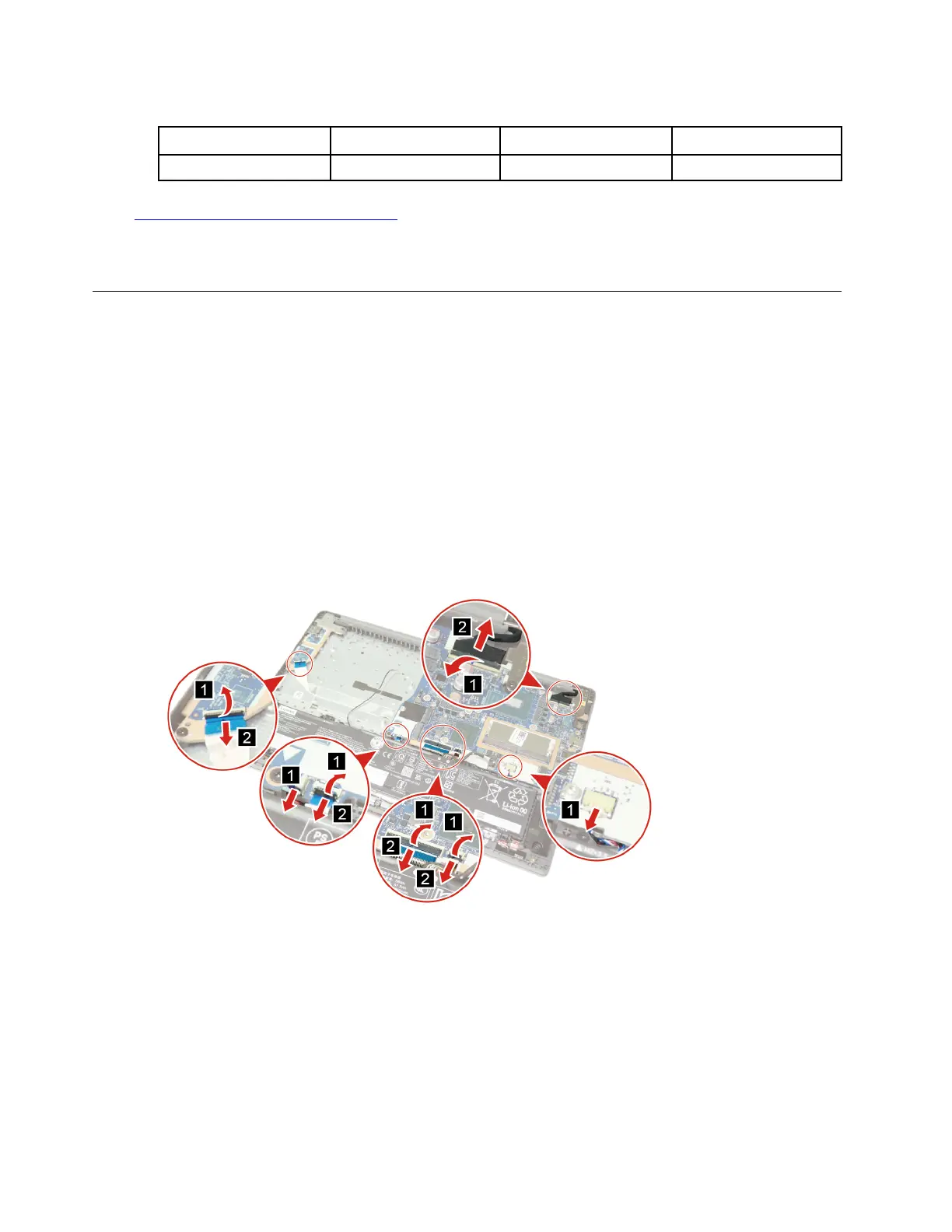

Figure 21. Disconnect all the cables
Step 2. Remove two screws and open the right hinge.
