Remove the hinges and the hinge caps
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the LCD module” on page 48
“Remove the LCD bezel” on page 50
“Remove the LCD panel” on page 51
Step 1. Release the EDP cable and the camera cable (1). Then, remove ten screws (2).

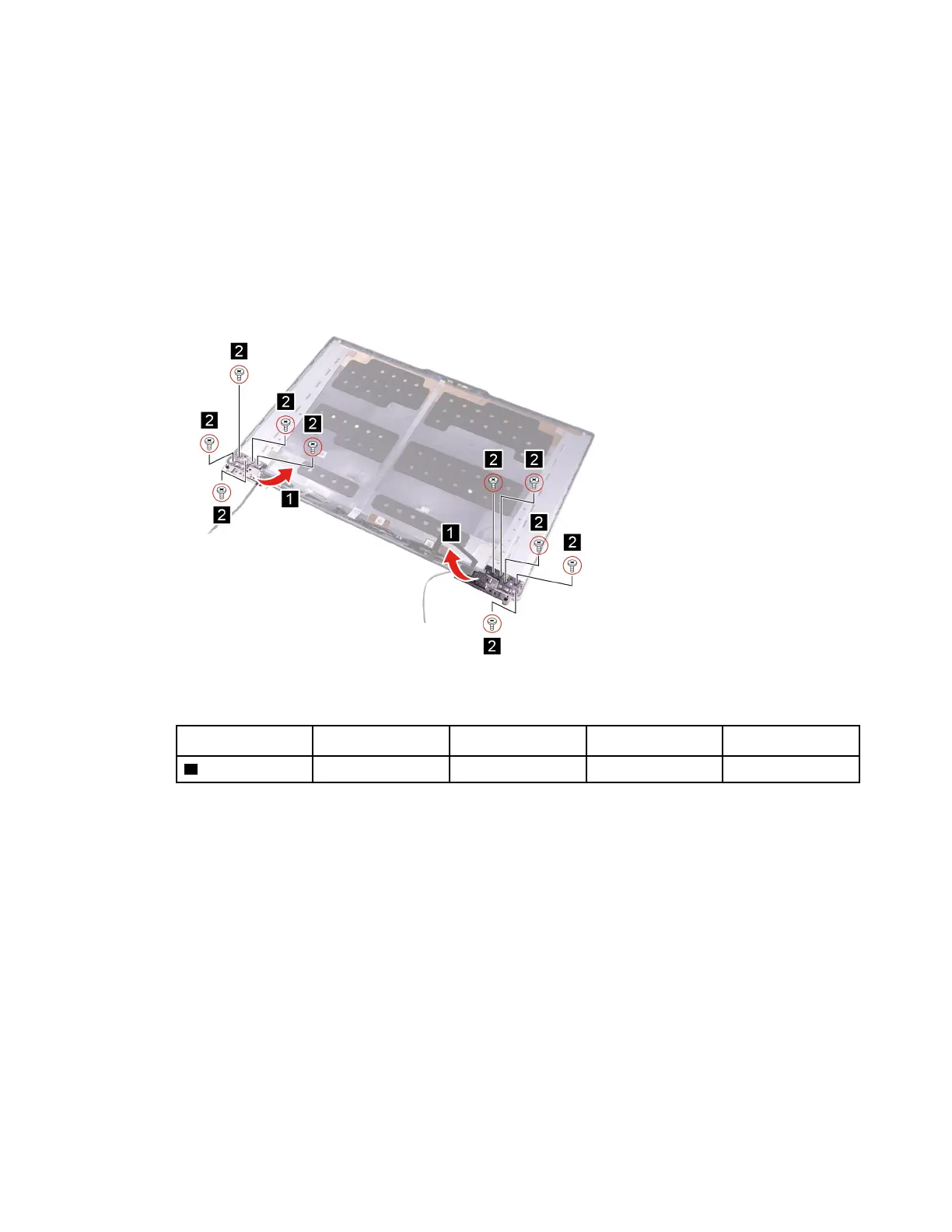

Figure 38. Release the EDP cable and the camera cable and remove ten screws
Label Thread
Length (mm) Torque (kgf.cm) Quantity
2
M2.5 3.0 3.0 ± 0.3 10
Step 2. Lift the tape (3) and use the pry tool to remove the hinges from the LCD cover (4).
Chapter 4. Removing a FRU or CRU 53
