“Remove the lower case” on page 29
“Remove the strip cover” on page 36
Step 1. Remove two screws (1) and remove the DC-in bracket (2).

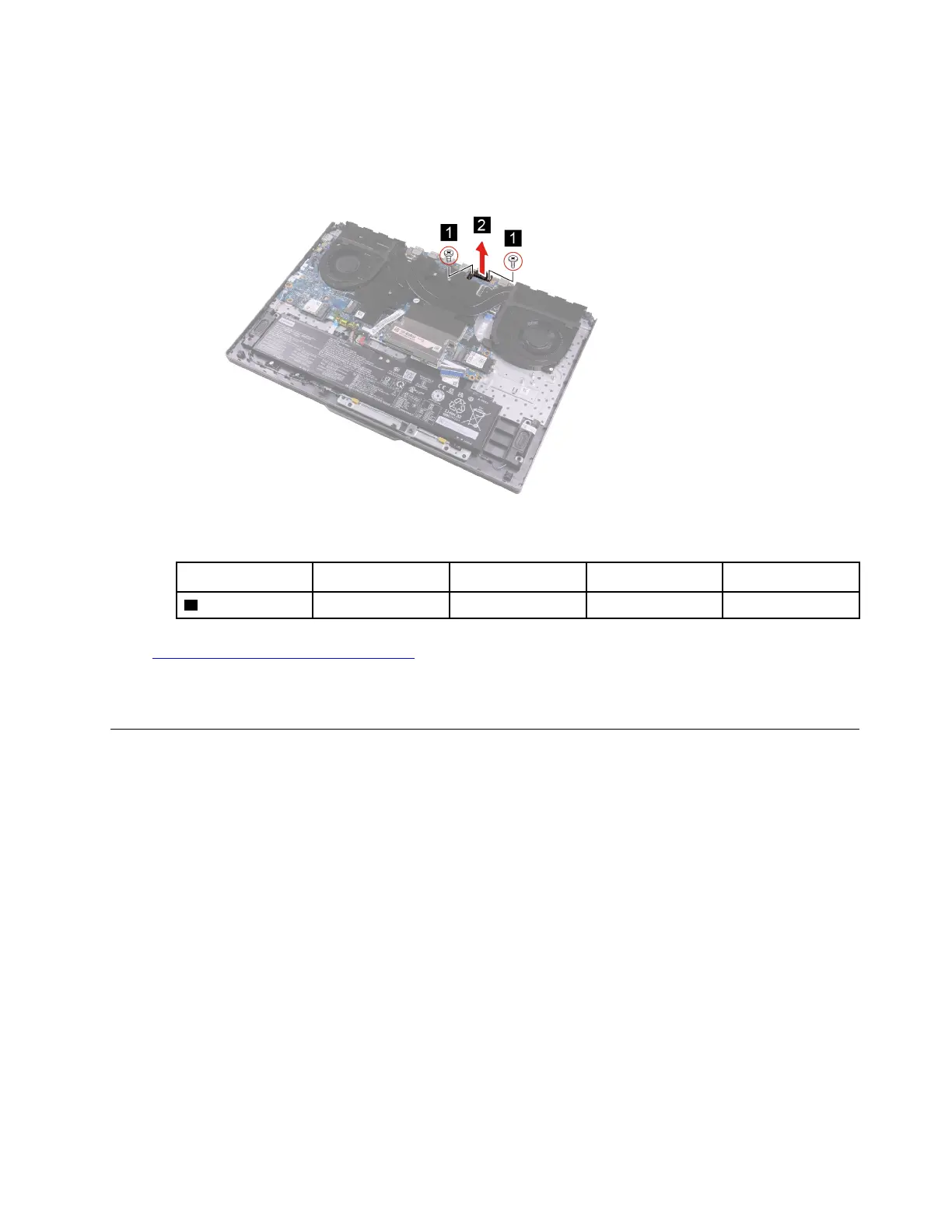

Figure 23. Remove two screws and remove the DC-in bracket
Label Thread
Length (mm) Torque (kgf.cm) Quantity
1
M2 4.0 1.85 ± 0.15 2
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
DC-in bracket
Remove the thermal module
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the strip cover” on page 36
Step 1. Peel back the mylar (1) and disconnect the fan cables from the system board (2).
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Chapter 4. Removing a FRU or CRU 41
