Remove the thermal module
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 30
“Remove the strip cover” on page 40
Step 1. Disconnect the battery pack cable from the system board, peel back the mylar, and disconnect the
fan cables from the system board.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.

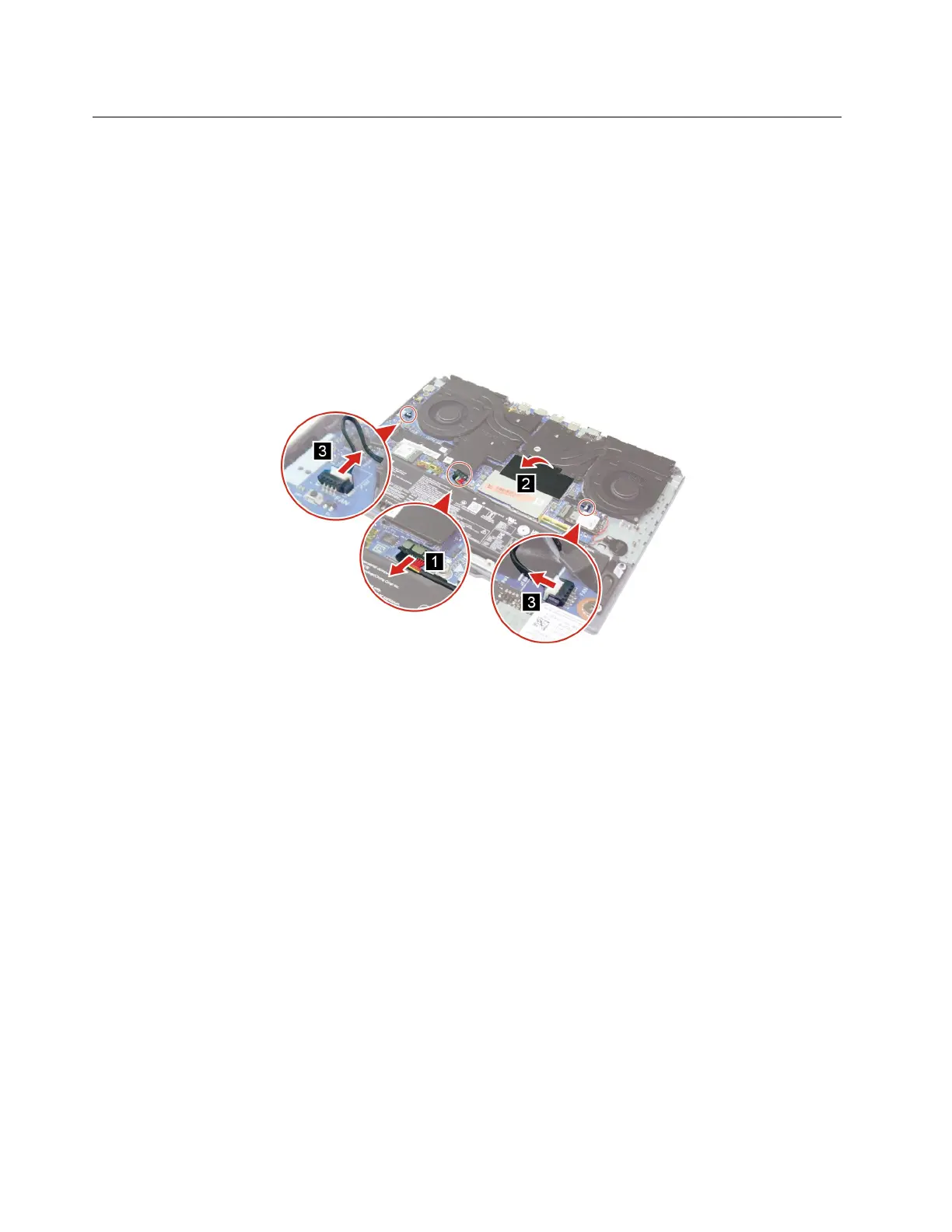

Figure 20. Disconnect the battery pack cable, peel back the mylar, and disconnect the fan cables
Step 2. Loosen five heat sink screws in alphabetical order, remove two fan screws, and remove the thermal
module.
42
Hardware Maintenance Manual
