Remove the CMOS battery (for 15–inch models)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the deco cover” on page 30
“Remove the lower case” on page 31
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Step 2. Disconnect the CMOS battery cable from the I/O board and then remove the CMOS battery.

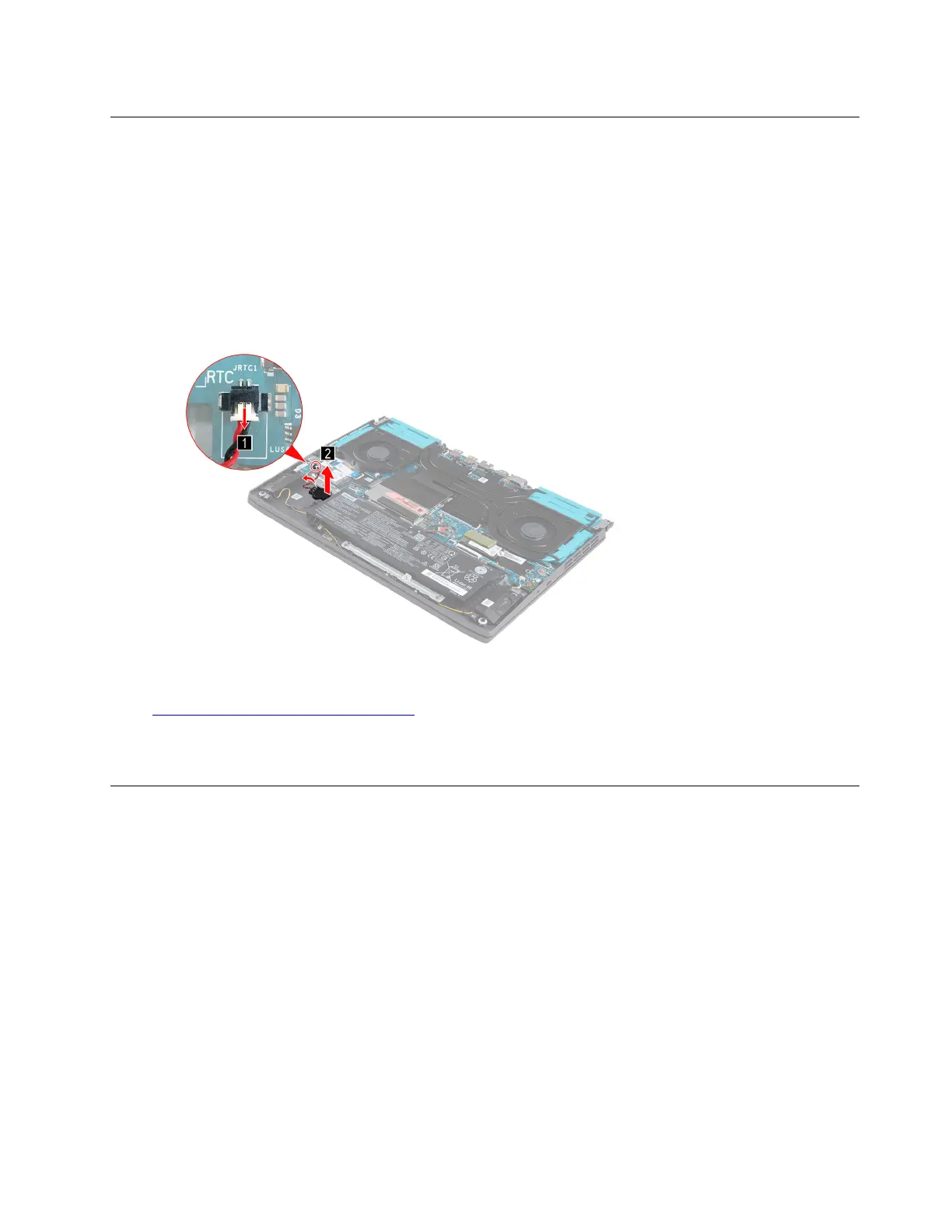

Figure 17. Remove the CMOS battery (for 15–inch models)
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
CMOS battery
Remove the CMOS battery (for 16–inch models)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the deco cover” on page 30
“Remove the lower case” on page 31
“Remove the Wi-Fi card” on page 39
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Step 2. Disconnect the CMOS battery cable from the I/O board and then remove the CMOS battery.
Chapter 4. Removing a FRU or CRU 41
