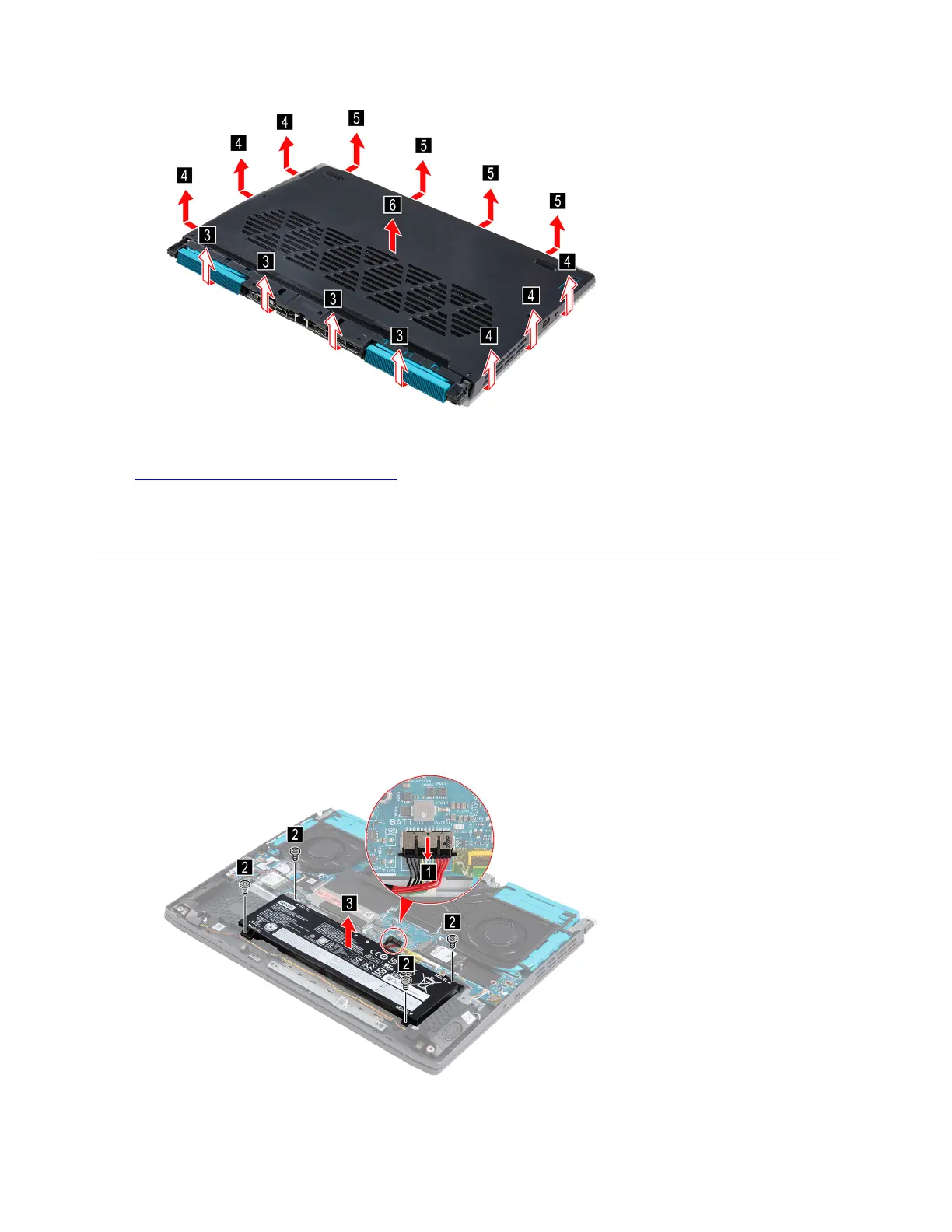

Figure 5. Pry up the latches and remove the lower case
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Lower case
Remove the 60W battery pack (for selected models)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the deco cover” on page 30
“Remove the lower case” on page 31
Step 1. Disconnect the battery pack cable from the system board. Remove four screws and then remove
the 60W battery pack.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Figure 6. Remove the 60W battery pack (for selected models)
32 Hardware Maintenance Manual
