“Remove the microphone rubber” on page 73
Step 1. Disconnect cable connected to the camera board and then remove the camera board.

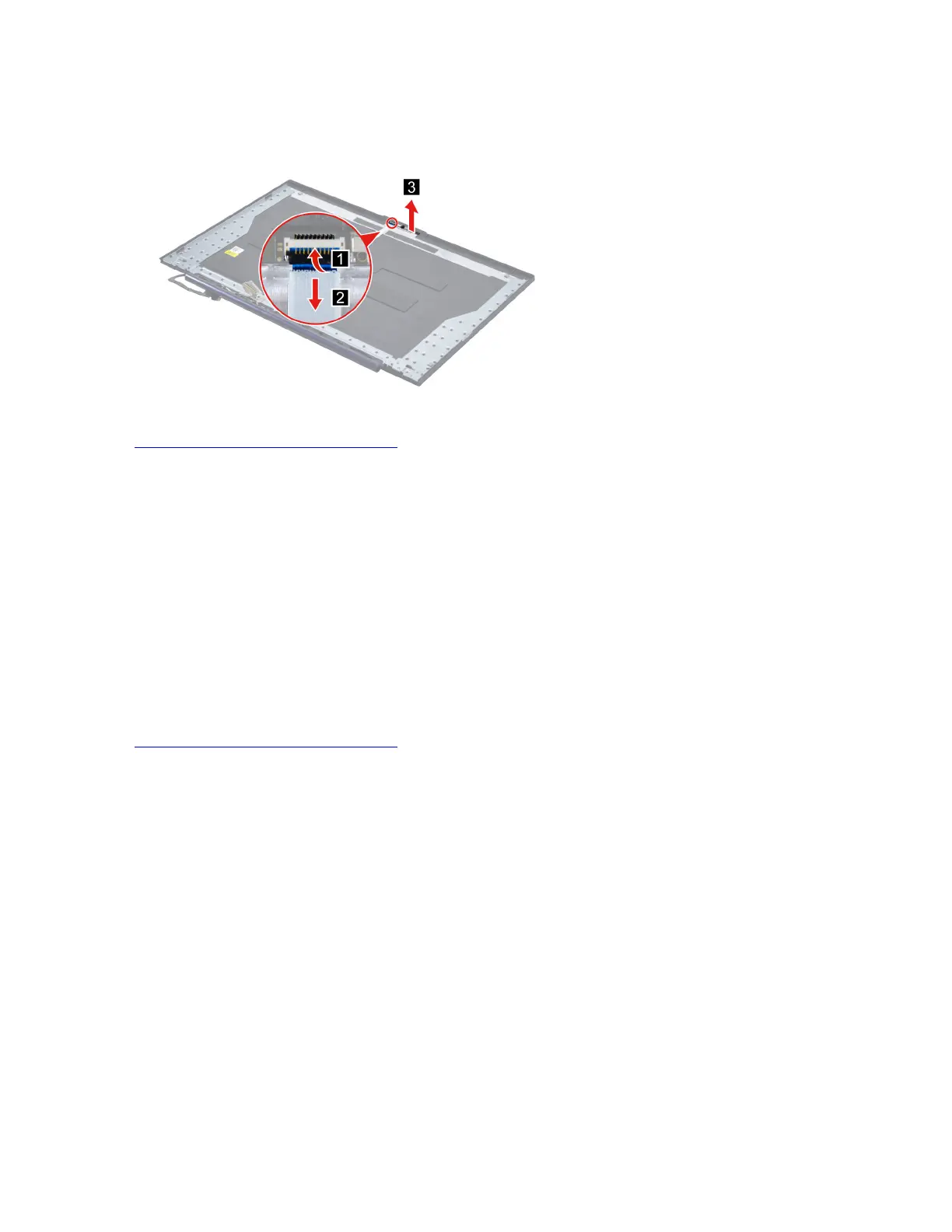

Figure 77. Disconnect cable connected to the camera board and remove the camera board
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Camera board
Removable tape
Remove the LCD cover
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 69
“Remove the LCD bezel” on page 71
“Remove the LCD panel” on page 71
“Remove the microphone rubber” on page 73
“Remove the camera board” on page 73
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
LCD cover
74
Hardware Maintenance Manual
