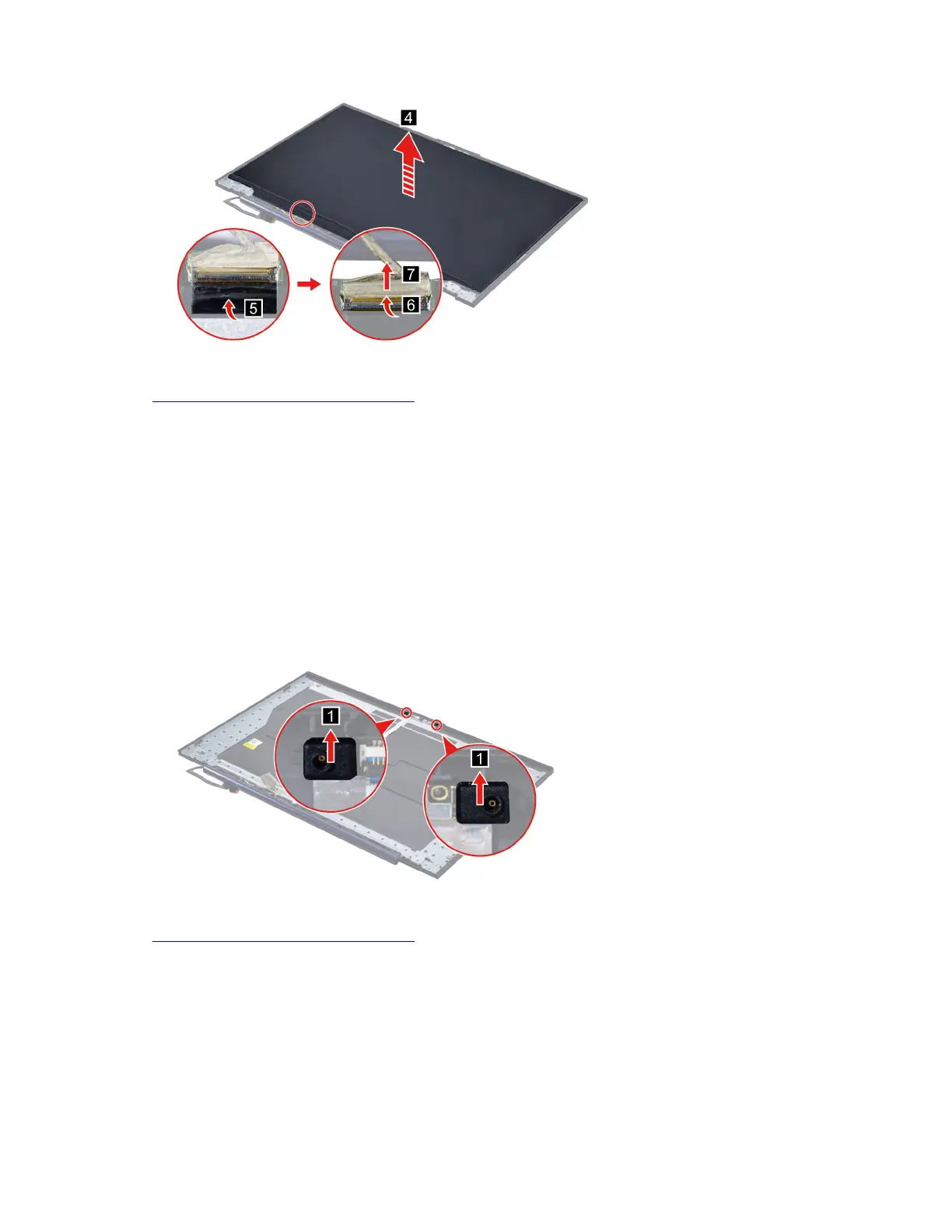

Figure 75. Disconnect the EDP cable and remove the LCD panel
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
LCD panel
Removable tape
Remove the microphone rubber
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 69
“Remove the LCD bezel” on page 71
“Remove the LCD panel” on page 71
Step 1. Remove the microphone rubber.
Figure 76. Remove the microphone rubber
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Microphone rubber
Remove the camera board
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 69
“Remove the LCD bezel” on page 71
“Remove the LCD panel” on page 71
Chapter 4. Removing a FRU or CRU 73
