“Remove the DC-in bracket” on page 60
“Remove the touchpad board cable” on page 61
“Remove the speakers” on page 61
“Remove the CMOS battery” on page 62
“Remove the thermal module” on page 63
“Remove the I/O board” on page 64
“Remove the system board and the I/O board cable” on page 64
“Remove the power board module” on page 66
“Remove the strip cover” on page 68
“Remove the LCD module” on page 69
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case (with touchpad, keyboard, waterproof breath film and antenna cables)
Disassemble the LCD module
The LCD module as a whole is not an FRU. Instead, it contains FRUs as its components. Before
disassembling the LCD module, make sure it has been detached from the upper case.
Remove the LCD bezel
Make sure the following unit has been removed.
“Remove the LCD module” on page 69
Step 1. Remove the LCD bezel.

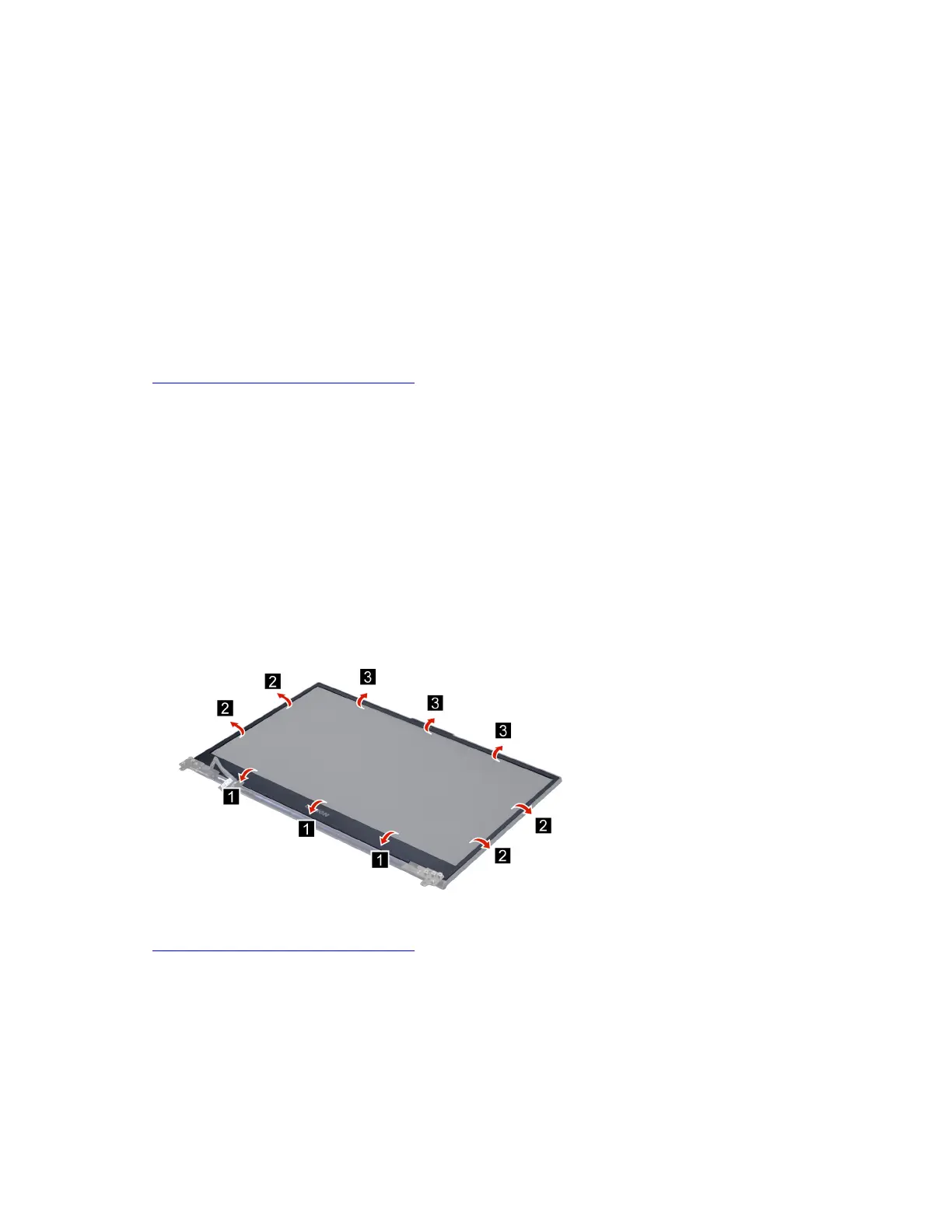

Figure 72. Remove the LCD bezel
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
LCD bezel (with removable tape)
Remove the LCD panel
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 69
“Remove the LCD bezel” on page 71
Chapter 4. Removing a FRU or CRU 71
