Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
DC-in bracket
Remove the touchpad board cable
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 53
“Remove the battery pack” on page 54
Step 1. Disconnect the touchpad board cable from the system board and the touchpad board. Remove the
touchpad board cable.

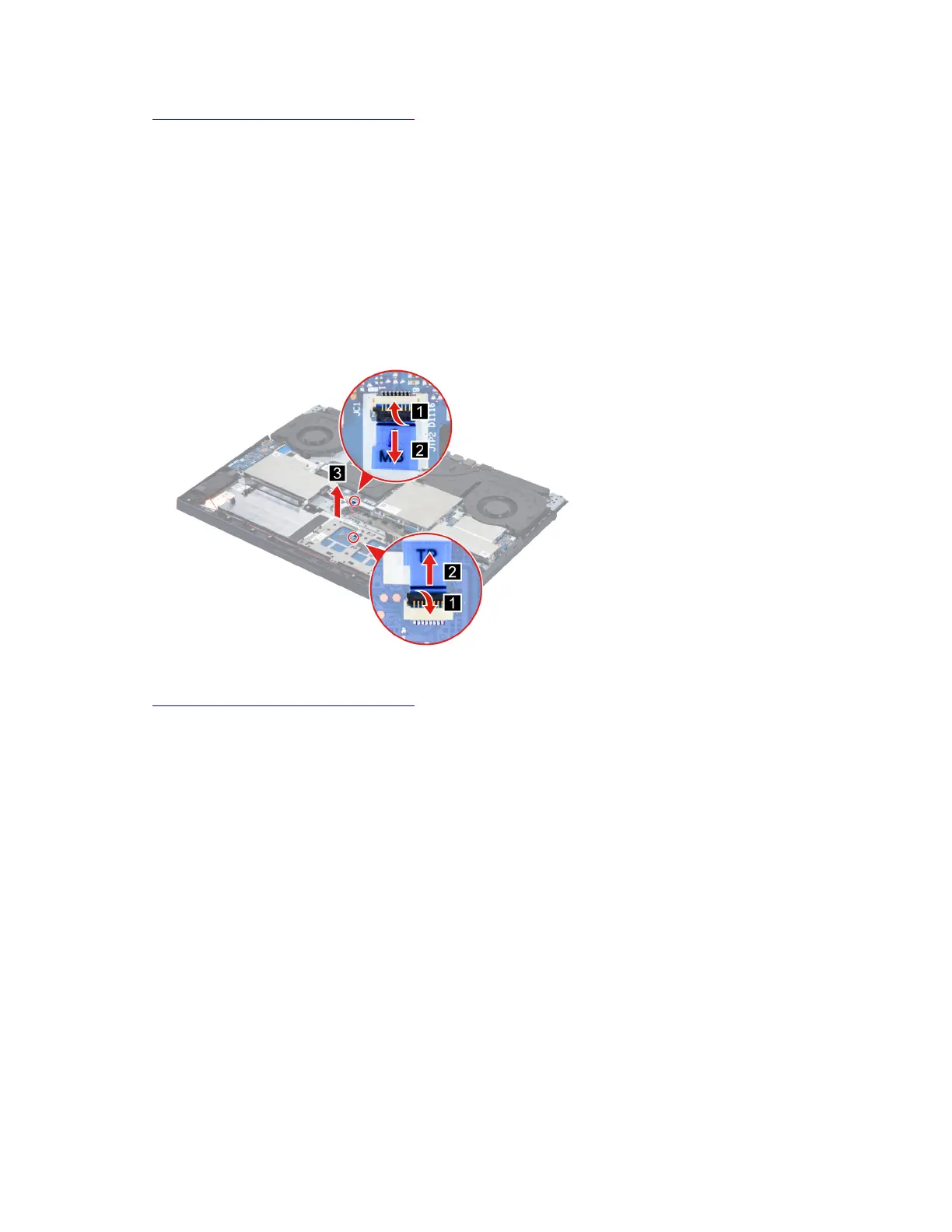

Figure 53. Remove the touchpad board cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Touchpad board cable
Remove the speakers
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 53
“Remove the battery pack” on page 54
“Remove the solid-state drive (SSD) plate (left)” on page 54
Step 1. Remove the left SSD.
Note: For details, see “Remove the solid-state drive (SSD)” on page 56.
Step 2. Disconnect the keyboard cable from the system board.
Chapter 4. Removing a FRU or CRU 61
