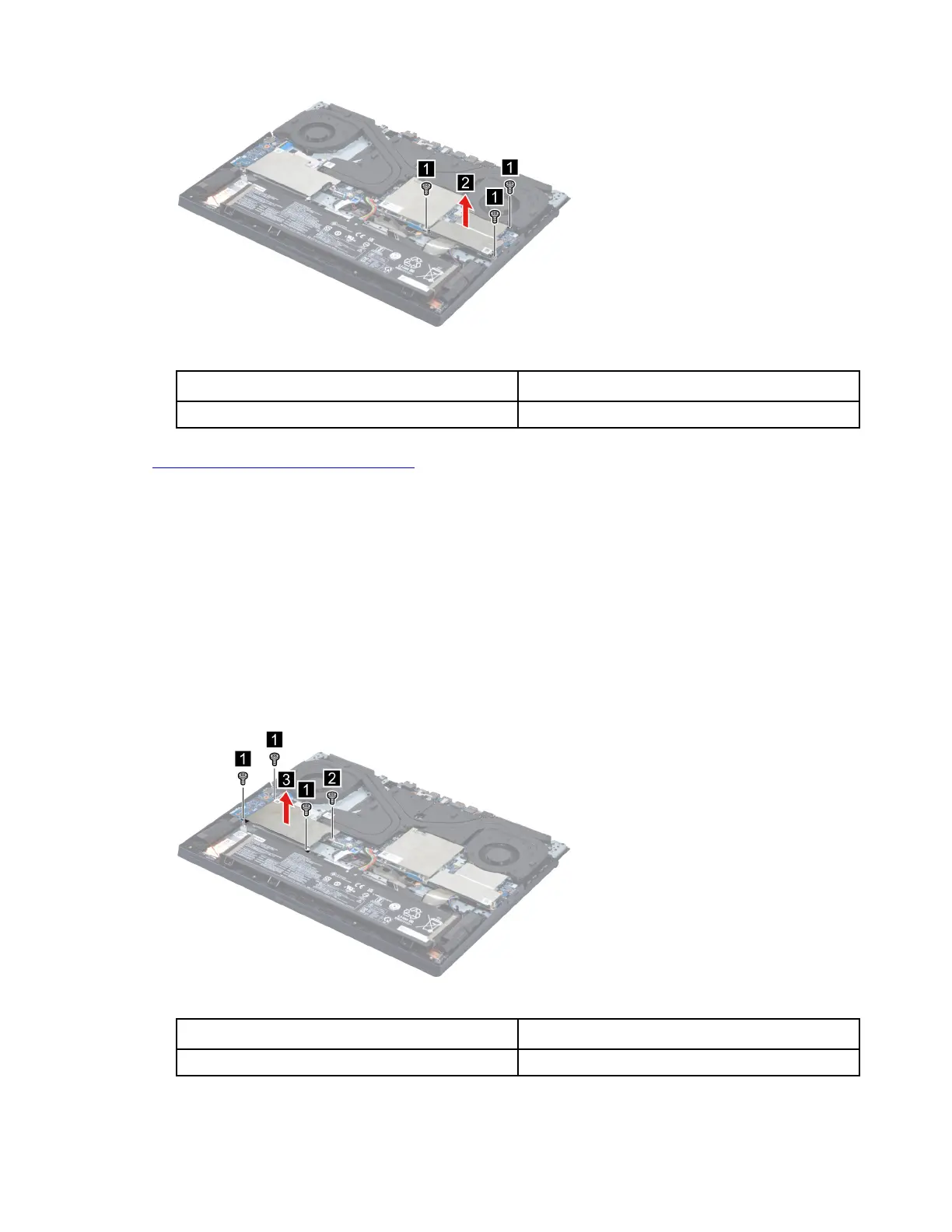

Figure 42. Remove the SSD plate (left)
Screw specifications
Number of screws
M2 x L4.5 3
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
SSD plate (left)
Remove the solid-state drive (SSD) plate (right)
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 53
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove three screws and then remove the SSD plate (right) carefully.
Figure 43. Remove the SSD plate (right)
Screw specifications
Number of screws
M2 x L4.5 3
Chapter 4. Removing a FRU or CRU 55
