Remove the camera board
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 46
“Remove the LCD bezel (with removable tape)” on page 49
“Remove the LCD panel” on page 49
“Remove the camera bracket” on page 50
“Remove the microphone rubber” on page 51
Step 1. Disconnect cable connected to the camera board and then remove the camera board.

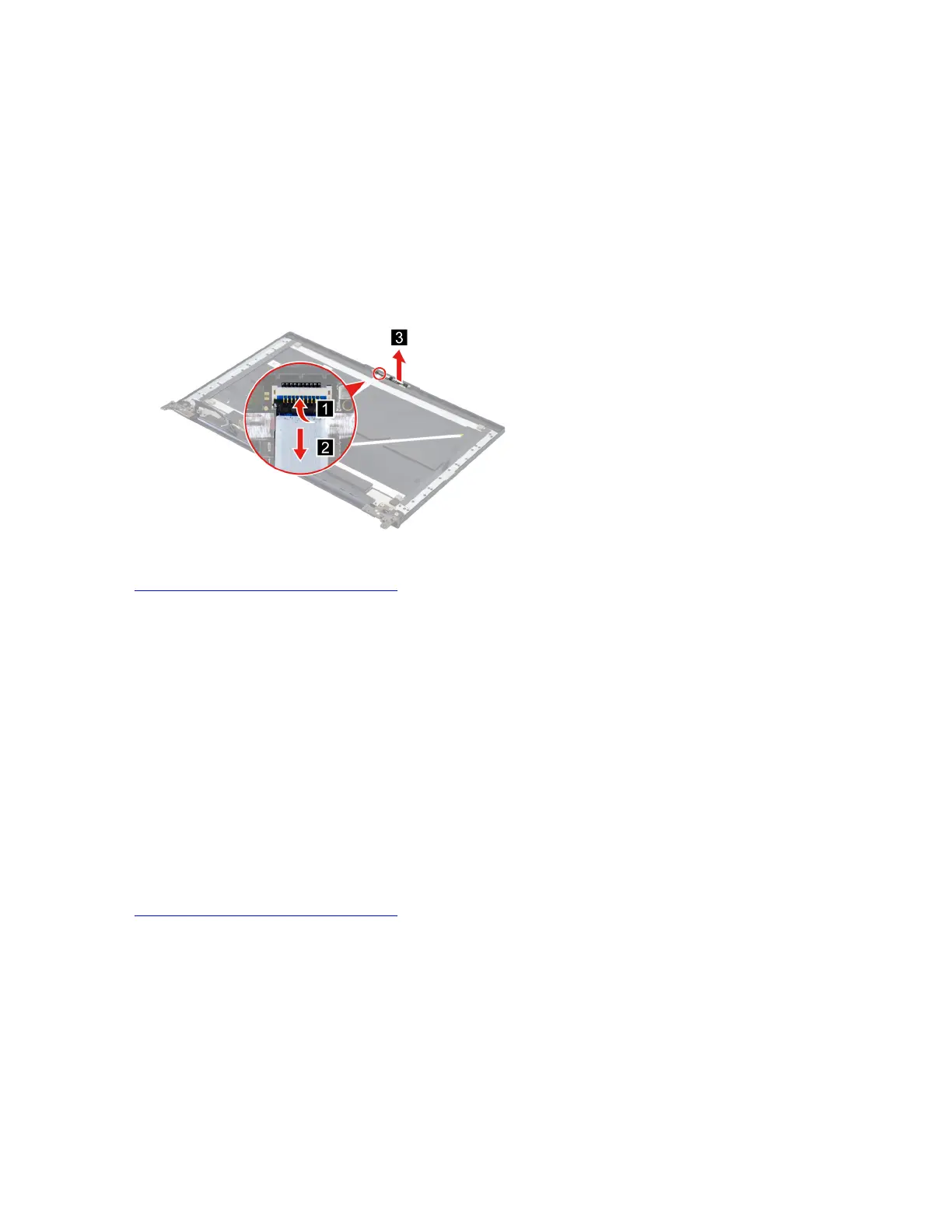

Figure 38. Disconnect cable connected to the camera board and remove the camera board
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Camera board
Removable tape
Remove the LCD cover
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 46
“Remove the LCD bezel (with removable tape)” on page 49
“Remove the LCD panel” on page 49
“Remove the camera bracket” on page 50
“Remove the microphone rubber” on page 51
“Remove the camera board” on page 52
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
LCD cover
52
Hardware Maintenance Manual
