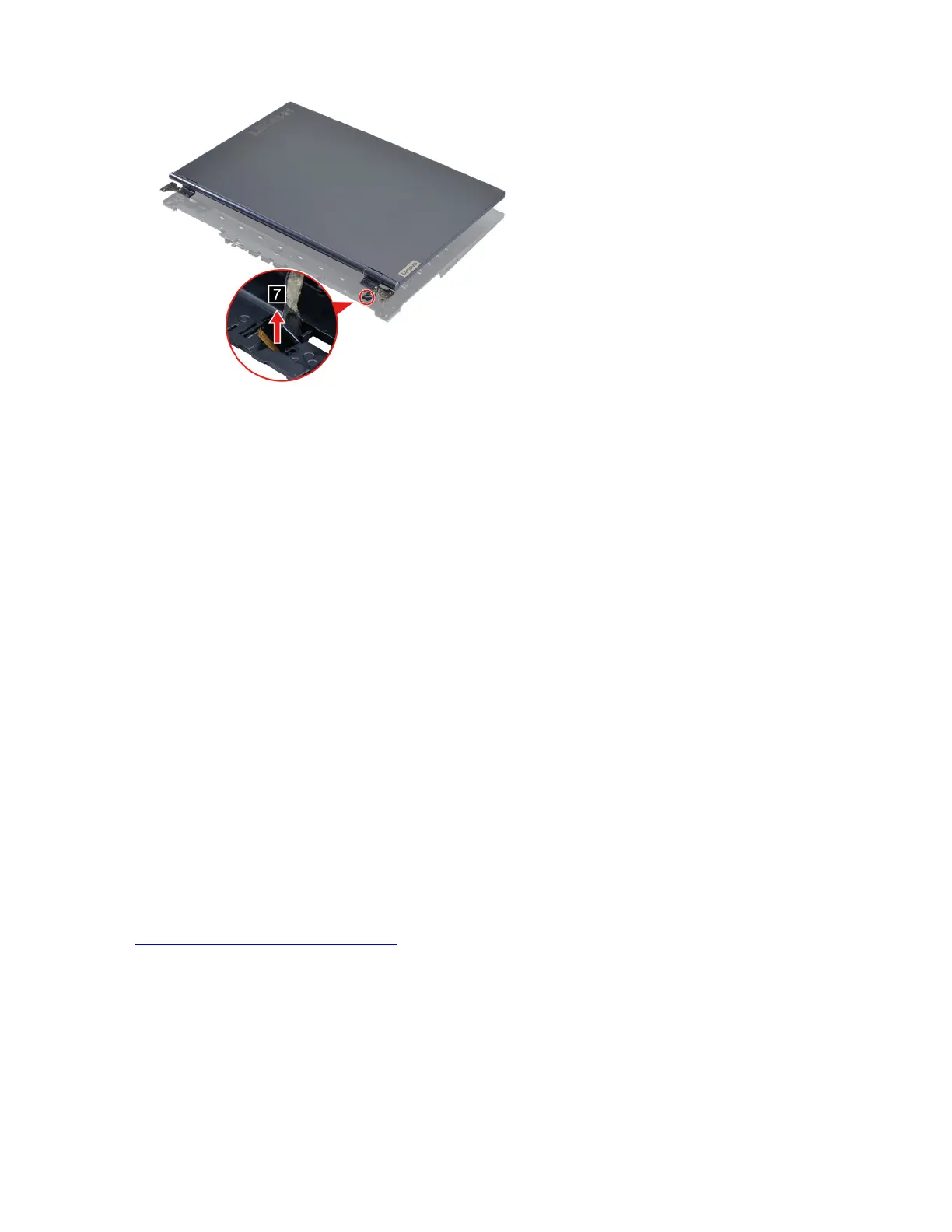

Figure 32. Take out the EDP cable and then remove the LCD module
Remove the upper case (with touchpad, power button, keyboard,
waterproof breath film and antenna cables)
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 33
“Remove the solid-state drive (SSD) plates” on page 34
“Remove the battery pack” on page 34
“Remove the solid-state drive (SSD)” on page 35
“Remove the solid-state drive (SSD) stand off” on page 36
“Remove the Wi-Fi card” on page 37
“Remove the memory module” on page 38
“Remove the DC-in bracket” on page 39
“Remove the touchpad board cable” on page 39
“Remove the speakers” on page 40
“Remove the CMOS battery” on page 41
“Remove the thermal module” on page 42
“Remove the I/O board” on page 43
“Remove the system board and the I/O board cable” on page 43
“Remove the strip cover” on page 45
“Remove the LCD module” on page 46
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Upper case (with touchpad, power button, keyboard, waterproof breath film and antenna cables)
Disassemble the LCD module
The LCD module as a whole is not an FRU. Instead, it contains FRUs as its components. Before
disassembling the LCD module, make sure it has been detached from the upper case.
48
Hardware Maintenance Manual
